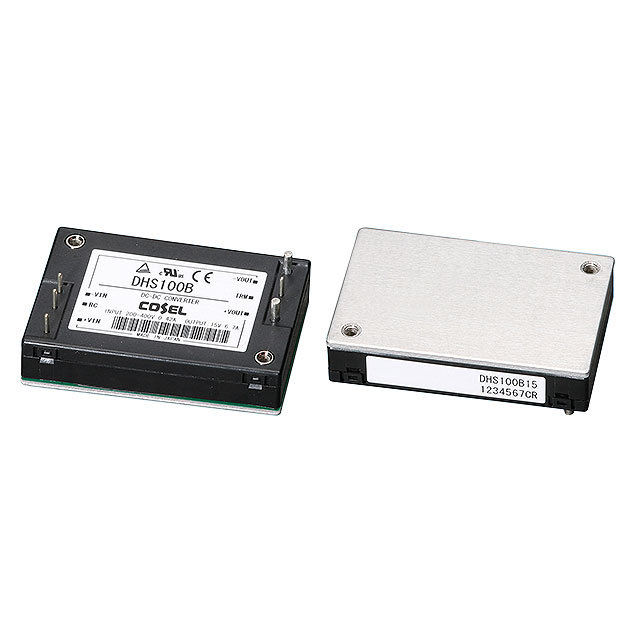

100W 3.3V 20A Power Module Isolated Dc Dc Converter Ic DHS100B03

100W 3.3V 20A Power Module Isolated Dc Dc Converter Ic DHS100B03
100W 3.3V 20A Power Module Isolated Dc Dc Converter Ic DHS100B03 100W 3.3V 20A Power Module Isolated Dc Dc Converter Ic DHS100B03

Large Image :  100W 3.3V 20A Power Module Isolated Dc Dc Converter Ic DHS100B03

Product Details:
Place of Origin: JP
Brand Name: Cosel
Certification: ROHS
Model Number: DHS100B03
Document: SFE_DHS-3313882.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: CONSULT WITH
Packaging Details: T/R
Delivery Time: 5-8day
Payment Terms: T/T,Western Union
Supply Ability: 100
Contact Now Chat Now

100W 3.3V 20A Power Module Isolated Dc Dc Converter Ic DHS100B03

Description
Manufacturer:: Cosel Product Category:: Isolated DC/DC Converters - Through Hole
Mounting Style:: Through Hole Number Of Outputs:: 1 Output
Output Power:: 100 W Input Voltage, Nominal:: 300 V
Package / Case:: 1/4 Brick Series:: DHS
Subcategory:: DC-DC Converters
Highlight:

100W Power Module

,

3.3V isolated dc dc converter ic

,

DHS100B03

Converter Power Module Type Isolated DC/DC Converter 100W 3.3V 20A DHS100B03
Product Specifications
Manufacturer Cosel
Product Category Isolated DC/DC Converters - Through Hole
Mounting Style Through Hole
Number of Outputs 1 Output
Output Power 100 W
Input Voltage, Nominal 300 V
Package / Case 1/4 Brick
Series DHS
Subcategory DC-DC Converters
Product Description

The Isolated DC/DC Converter 100W 3.3V 20A DHS100B03 is a high-performance power module designed for industrial applications.

Key Features
  • Ideal for distributed power systems
  • Thin and small size design
  • Built-in overcurrent, overvoltage and thermal protection circuits
  • Built-in remote ON/OFF functionality
  • Mounting hole (M3 tapped) for secure installation
  • Compliant with CE marking, Low Voltage Directive, RoHS Directive, UKCA marking
  • Meets Electrical Equipment Safety Regulations and RoHS Regulations
  • Safety agency approvals: UL60950-1, C-UL, EN62368-1
  • 5-year warranty for peace of mind
  • Optional heat sink available
Technical Specifications
Model DHS50A05 DHS50A12 DHS50A15 DHS50A24
Max Output Wattage [W] 50.0 50.4 51.0 50.4
DC Output 5V 10A 12V 4.2A 15V 3.4A 24V 2.1A
Input Voltage [V] DC60 - 160
Current [A] 0.55A
Efficiency [%] 84.0 typ 86.0 typ 86.0 typ 86.0 typ
Additional Specifications
  • Isolation: Input-Output AC3,000V 1minute, Cutoff current = 10mA, DC500V 50MW min (20±15°C)
  • Operating Temperature: -40 to +100°C (On aluminum base plate)
  • Humidity: 20 - 95%RH (Non condensing)
  • Altitude: 3,000m (10,000 feet) max
  • Vibration: 10 - 55Hz, 49.0m/s² (5G), 3 minutes period, 60 minutes each along X, Y and Z axis
  • Impact: 196.1m/s² (20G), 11ms, once each along X, Y and Z axis
  • Case Size: 58.4×12.7×37.3mm [2.3×0.5×1.47 inches] (W×H×D)
  • Weight: 60g max
  • Cooling Method: Conduction cooling

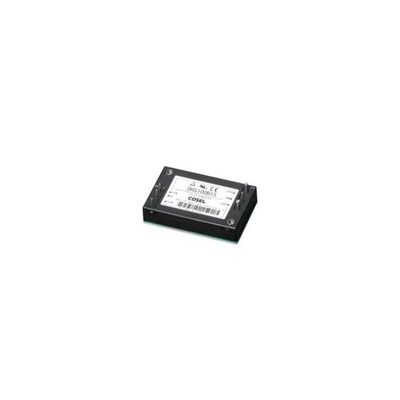

100W 3.3V 20A Power Module Isolated Dc Dc Converter Ic DHS100B03 0 100W 3.3V 20A Power Module Isolated Dc Dc Converter Ic DHS100B03 1
Packaging and Transportation

Standard export packaging available. Customers can choose from cartons, wooden cases and wooden pallets according to their requirements.

Frequently Asked Questions
1. How to obtain the price?

We usually quote within 24 hours after receiving your inquiry (except weekends and holidays). If you are in urgent need of a price, please contact us directly.

2. What is your delivery time?

Delivery time depends on order quantity and season. Typically, we can ship within 7-15 days for small batches, and about 30 days for large batches.

3. What are your payment terms?

Factory price, 30% deposit, 70% T/T payment before shipment.

4. What is the mode of transportation?

Available by sea, air or express delivery (EMS, UPS, DHL, TNT, FEDEX, etc.). Please confirm with us before placing an order.

5. How do you help our business establish a long-term relationship?

We maintain good quality and competitive prices to ensure customer benefits. We respect every customer and value long-term business relationships.
