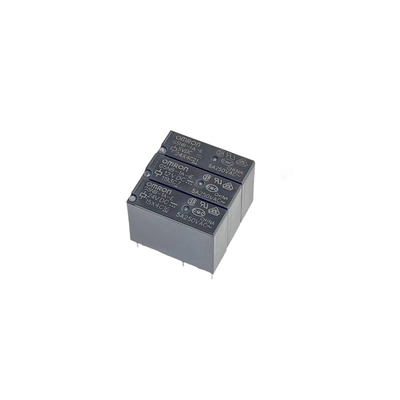

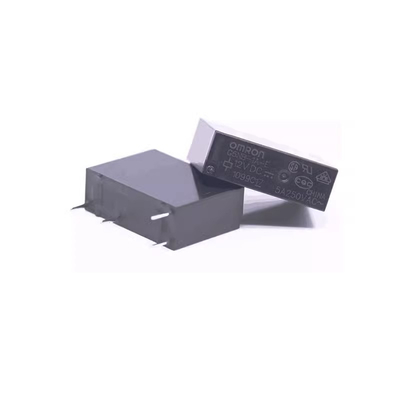

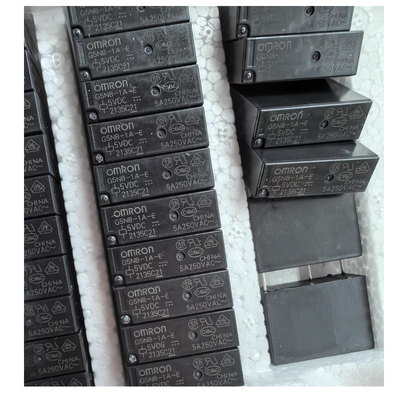

10kV Power On Off Small Relay 10kV 1 Pole 3A G5NB-1A-E-24VDC

The G5NB-1A-E-24VDC power relay is a compact 1-pole 3A on-off relay featuring exceptional 10kV impulse voltage resistance. Designed with high-power electromagnetic circuits, it achieves high sensitivity (200mW) while maintaining robust performance.

• Certified to UL, CSA, and VDE standards
• Complies with EN61010 reinforced insulation requirements
• PWM drive capability (-PW models) reduces coil holding current
• Sealed construction with flux protection
• Fast operate and release time (10 ms each)

Actual Load Life (Reference Values):

• 120 VAC motor and lamp load: 250,000 operations min. at 23°C
• 160 VDC valve load (with varistor): 250,000 operations min. at 23°C
• 140 VAC pump load: 200,000 operations min. at 23°C
• 100 VAC motor load: 200,000 operations min. at 23°C

Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.
