10m 100m 1000m RF Integrated Circuits Ethernet Precision Transceiver Chip RTL8211F-CG

Large Image : 10m 100m 1000m RF Integrated Circuits Ethernet Precision Transceiver Chip RTL8211F-CG

Product Details:

Place of Origin:	CN
Brand Name:	REALTEK
Certification:	ROHS
Model Number:	RTL8211F-CG
Document:	C187932_1913F3711F05FE1324D...8D.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	consult with
Packaging Details:	T/R
Delivery Time:	5-8day
Payment Terms:	Western Union,T/T
Supply Ability:	10000

Contact Now Chat Now

10m 100m 1000m RF Integrated Circuits Ethernet Precision Transceiver Chip RTL8211F-CG

Description

Vacuum:	300KPA	Rise Time:	25 Ns
Feature:	RF Treatment\|painless	Isolation Voltage:	7500 Vrms
Product Type:	RF System On A Chip - SoC
Highlight:	10m RF Integrated Circuits , 100m RF Integrated Circuits 7500Vrms , RTL8211F-CG

Rf Integrated Circuit 10/100/1000m Ethernet Precision Transceiver Chip RTL8211F-CG

Product Specifications

Attribute	Value
Vacuum	300KPA
Rise Time	25 ns
Feature	RF treatment \| painless
Isolation Voltage	7500 Vrms
Product Type	RF System on a Chip - SoC

Product Features

1000Base-T IEEE 802.3ab Compliant
100Base-TX IEEE 802.3u Compliant
10Base-T IEEE 802.3 Compliant
Supports RGMII
Supports IEEE 802.3az-2010 (Energy Efficient Ethernet)
Built-in Wake-on-LAN (WOL)
Supports Interrupt function
Supports Parallel Detection
Crossover Detection & Auto-Correction
Automatic polarity correction
Supports PHYRSTB core power Turn-Off
Baseline Wander Correction
Supports 120m for CAT.5 cable in 1000Base-T
Selectable 3.3/2.5/1.8/1.5V signaling for RGMII
Supports 25MHz external crystal or OSC
Provides 125MHz clock source for MAC
Provides 3 network status LEDs
Supports Link Down power saving
Green Ethernet (1000/100Mbps mode only)
Built-in Switching Regulator and LDO
40-pin QFN Green Package
55 nm process with ultra-low power consumption
Industrial grade manufacturing process (RTL8211FI/RTL8211FDI)

Technical Specifications

Category

Communication Interface Circuits > Ethernet Chips

Package

QFN, QFN(EP)

RoHS

Compliant

Mounting

Bracket Mounting, SMD Mounting

Operating Temperature

-40℃ ~ 85℃

Dimensions

5mm (Length) × 5mm (Width)

Application Grade

Industrial Grade

Status

In Stock

Packaging

Tray

Transceiver Count

Operating Voltage

2.97V - 3.63V

Data Rate

10Mbps, 100Mbps, 1Gbps

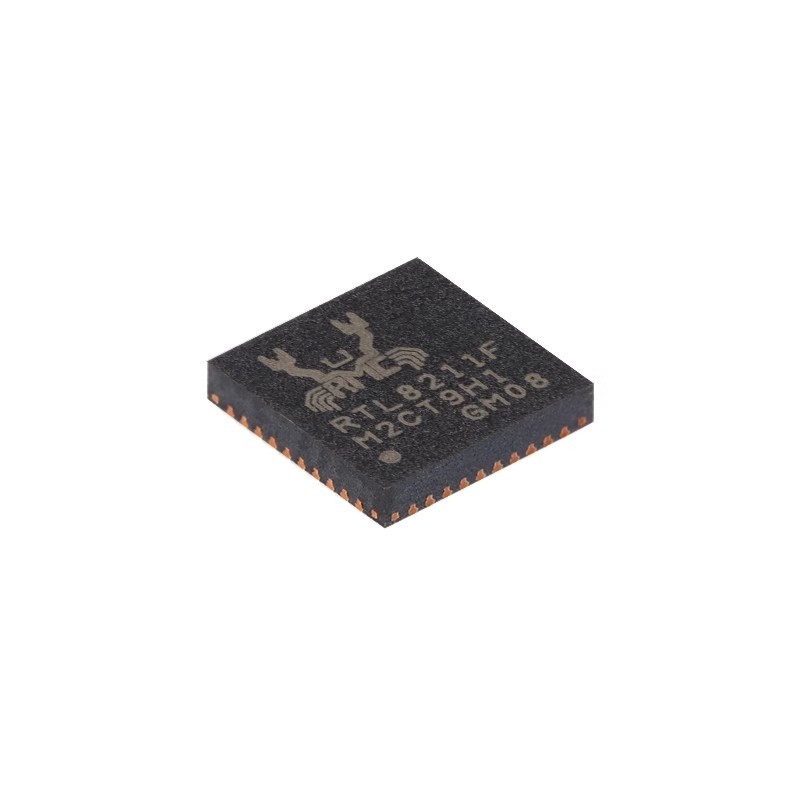

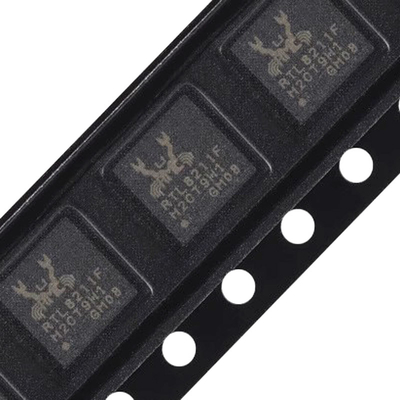

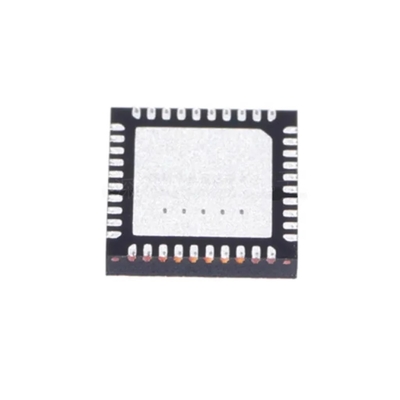

Product Images

Packaging and Transportation

According to the standard export packaging. Customers can choose from cartons, wooden cases and wooden pallets according to their own requirements.

Frequently Asked Questions

1. How to obtain the price?

We usually quote within 24 hours after receiving your inquiry (except weekends and holidays). If you are in urgent need of a price, please send us an email or contact us in any other way so that we can provide you with a quotation.

2. What is your delivery time?

This depends on the quantity of the order and the season in which you place the order. Usually, we can ship the goods within 7 to 15 days (for small batches), and for large batches, it takes about 30 days.

3. What are your payment terms?

Factory price, 30% deposit, 70%T/T payment before shipment.

4. What is the mode of transportation?

It can be transported by sea, air or express delivery (EMS, UPS, DHL, TNT, FEDEX, etc.). Please confirm with us before placing an order.

5. How do you help our business establish a long-term and good relationship?

We maintain good quality and competitive prices to ensure that our customers benefit.

We respect every customer as our friend. We do business with them sincerely and make friends with them, no matter where they come from.
