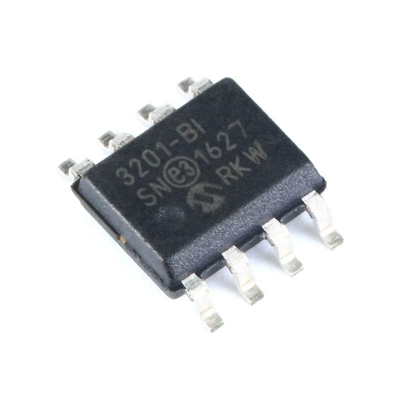

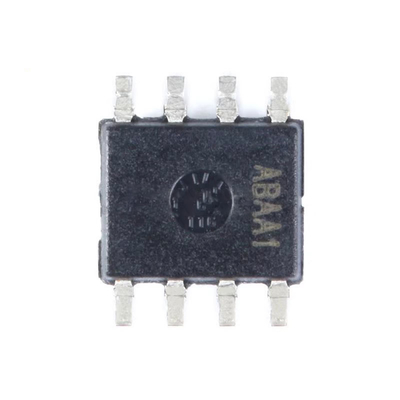

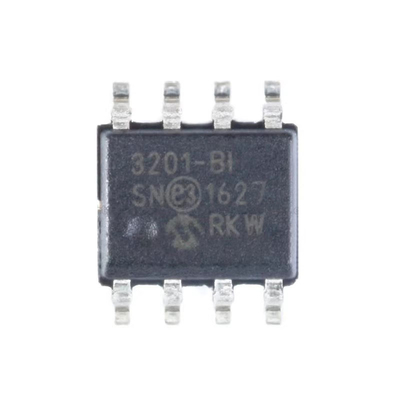

12 Bit ADC DAC Converter SPI Interface Analog Digital Converters MCP3201-BI SN

• 12-Bit Resolution with ±1 LSB max DNL
• On-chip Sample and Hold circuitry
• SPI Serial Interface (modes 0,0 and 1,1)
• Single Supply Operation: 2.7V - 5.5V
• 100 ksps Maximum Sampling Rate at 5V
• Low-Power CMOS Technology (500 nA standby)
• Industrial Temperature Range (-40°C to +85°C)
• Available in 8-pin MSOP, PDIP, SOIC and TSSOP packages

The Microchip Technology MCP3201 is a successive approximation 12-bit Analog-to-Digital Converter with on-board sample and hold circuitry. It features a single pseudo-differential input with excellent linearity specifications (DNL ±1 LSB, INL ±1/±2 LSB).

The device communicates via a simple SPI-compatible serial interface, achieving sample rates up to 100 ksps at 1.6 MHz clock rate. Operating from 2.7V to 5.5V, it consumes only 500 nA in standby and 300 µA during active operation, making it ideal for battery-powered applications.

• Sensor Interface Systems
• Industrial Process Control
• Data Acquisition Systems
• Battery Operated Equipment
