12V 85W 12A Power Module Non Isolated Dc Dc Converter ICH12012A007V-007-R

12V 85W 12A Power Module Non Isolated Dc Dc Converter ICH12012A007V-007-R
12V 85W 12A Power Module Non Isolated Dc Dc Converter ICH12012A007V-007-R

Large Image :  12V 85W 12A Power Module Non Isolated Dc Dc Converter ICH12012A007V-007-R

Product Details:
Place of Origin: JP
Brand Name: TDK
Certification: ROHS
Model Number: ICH12012A007V-007-R
Document: files-ede617258982370dcba5c...22.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: CONSULTT WITH
Packaging Details: T/R
Delivery Time: 5-8DAY
Payment Terms: T/T,Western Union
Supply Ability: 100
Contact Now Chat Now

12V 85W 12A Power Module Non Isolated Dc Dc Converter ICH12012A007V-007-R

Description
Manufacturer:: TDK-Lambda Product Category:: Non-Isolated DC/DC Converters
REACH - SVHC:: Details Product:: Non-Isolated / PoL
Output Power:: 85 W Input Voltage, Nominal:: 12 V
Input Voltage - Min:: 4.5 V Input Voltage - Max:: 14 V
Output Current-Channel 1:: 12 A
Highlight:

12V Power Module

,

85W non isolated dc dc converter

,

ICH12012A007V-007-R

Non-isolated DC/DC Converter 12Vin 85W 12A Non-isolated SMT Load Point ICH12012A007V-007-R
Product Specifications
Manufacturer: TDK-Lambda
Product Category: Non-Isolated DC/DC Converters
REACH - SVHC: Details
Product: Non-Isolated / PoL
Output Power: 85 W
Input Voltage, Nominal: 12 V
Input Voltage - Min: 4.5 V
Input Voltage - Max: 14 V
Output Current-Channel 1: 12 A
Product Description

The iCH series of non-isolated Point-Of-Load (POL) converters provide localized voltage conversion from either a 5V or 12V bus. With its wide input and wide output voltage adjustment range, this compact-size and surface-mountable DC-DC module can deliver up to 85W making it a versatile solution for various board mount power requirements.

Features & Benefits
DOSA Compatible Footprint
Surface Mountable and Reflow Solder Compatible
Constant Switching Frequency
No External Loop Tuning Components Needed
Excellent Transient Response
Established Industry Footprint / Multisource
Ease of Manufacturing and Assembly
Predictable EMI
Simplifies Deployment and Saves Board Space
Stable / Reliable Output During Dynamic Load
Technical Specifications
Model iCH
Input Voltage Range 4.5 - 14 Vdc
Input Current (max) 12 A
Efficiency (typical) 88.5 - 97%
Safety Certifications IEC/UL/CSA/EN 62368-1, 60950-1, CE Mark and UKCA Mark
Output Voltage Range 700 mV to 8.5 V
Output Current (max) 12 A
Output Power (max) 85 W
Operating Temperature -40°C to +115°C
Dimensions 12.2 x 12.2 x 8.5 mm (0.48 x 0.48 x 0.335 in)
Weight 2.5 g (max)
MTBF > 15 MHrs (Telcordia SR-332, 100% Load, 40°C)
Warranty 3 years

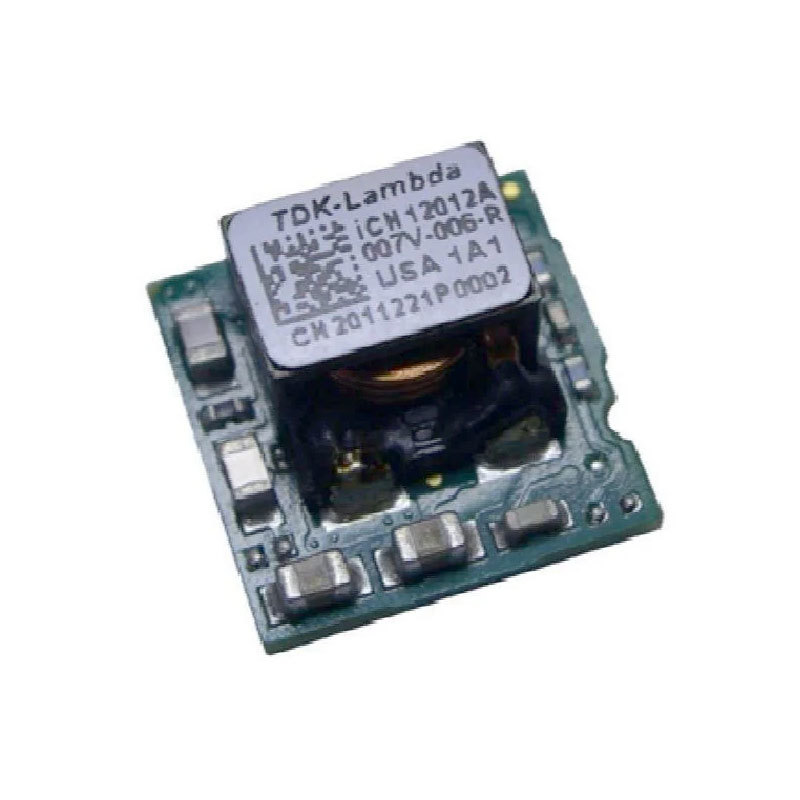

Product Image
12V 85W 12A Power Module Non Isolated Dc Dc Converter ICH12012A007V-007-R 0
Packaging & Shipping

According to the standard export packaging. Customers can choose from cartons, wooden cases and wooden pallets according to their own requirements.

Frequently Asked Questions
1. How to obtain the price?

We usually quote within 24 hours after receiving your inquiry (except weekends and holidays). If you are in urgent need of a price, please send us an email or contact us in any other way so that we can provide you with a quotation.

2. What is your delivery time?

This depends on the quantity of the order and the season in which you place the order. Usually, we can ship the goods within 7 to 15 days (for small batches), and for large batches, it takes about 30 days.

3. What are your payment terms?

Factory price, 30% deposit, 70%T/T payment before shipment.

4. What is the mode of transportation?

It can be transported by sea, air or express delivery (EMS, UPS, DHL, TNT, FEDEX, etc.). Please confirm with us before placing an order.

5. How do you help our business establish a long-term and good relationship?

We maintain good quality and competitive prices to ensure that our customers benefit. We respect every customer as our friend. We do business with them sincerely and make friends with them, no matter where they come from.

* REACH: Registration, Evaluation, Authorisation and Restriction of Chemicals
* SVHC: Substance of Very High Concern
