12V Solid State Relay Coil HK4100F-DC12V-SHG Environmental Protection

12V Solid State Relay Coil HK4100F-DC12V-SHG Environmental Protection
12V Solid State Relay Coil HK4100F-DC12V-SHG Environmental Protection 12V Solid State Relay Coil HK4100F-DC12V-SHG Environmental Protection 12V Solid State Relay Coil HK4100F-DC12V-SHG Environmental Protection

Large Image :  12V Solid State Relay Coil HK4100F-DC12V-SHG Environmental Protection

Product Details:
Place of Origin: CN
Brand Name: HUIKE
Certification: ROHS
Model Number: HK4100F-DC12V-SHG
Document: 1457706659381.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: CONSULT WITH
Packaging Details: T/R
Delivery Time: 5-8DAY
Payment Terms: T/T,Western Union
Supply Ability: 10000
Contact Now Chat Now

12V Solid State Relay Coil HK4100F-DC12V-SHG Environmental Protection

Description
Contact Gap:: 0.25 Mm Minimum. Contact Resistance: Maximum 100mΩ At Initial Value
Test Current:: 1A Open Circuit Test Voltage: 6VDC
Rated Voltage: 3VDC.5VDC. 6VDC. 9VDC. 12VDC. 24VDC Operate Time: 6 Milliseconds Maximum When Rated Voltage Is Applied.
Release Time: 4 Milliseconds Maximum When Rated Voltage Is Suddenly Cut Off Coil TemperatureRise: 40℃ Maximum.
Highlight:

12V Solid State Relay

,

24VDC Solid State Relay

,

HK4100F-DC12V-SHG

Universal Power Relay Coil Voltage 12V DC Environmental Protection Product HK4100F-DC12V-SHG
Key Specifications
Attribute Value
Contact Gap 0.25 mm Minimum
Contact Resistance Maximum 100mΩ at initial value
Test Current 1A
Open Circuit Test Voltage 6VDC
Rated Voltage 3VDC, 5VDC, 6VDC, 9VDC, 12VDC, 24VDC
Operate Time 6 milliseconds Maximum at rated Voltage
Release Time 4 milliseconds Maximum when voltage is cut off
Coil Temperature Rise 40℃ Maximum
Technical Details
Contact Specifications
  • Contact Capacity: 3A at 250VAC (Cosφ=1) or 3A at 30VDC
  • Electrical Life: 100,000 operations minimum at rated conditions
  • Mechanical Life: 10,000,000 operations minimum at no load
Coil Specifications
  • Pull In Voltage: ≤75% of Rated voltage
  • Open Voltage: ≥10% of Rated voltage
  • Maximum Allowable Voltage: 130% of Rated voltage
Environmental Characteristics
  • Operating Temperature Range: -25 to +70°C
  • Storage Temperature Range: -25 to +70°C
  • Humidity Range: 35-85% RH
  • Vibration and Shock resistant per industry standards
Product Images

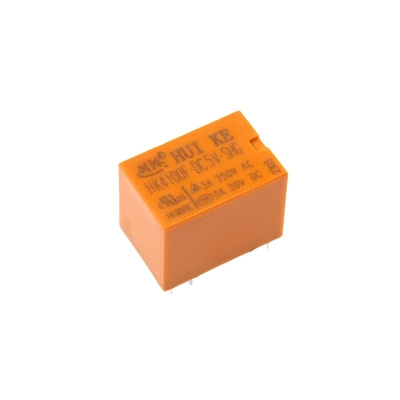

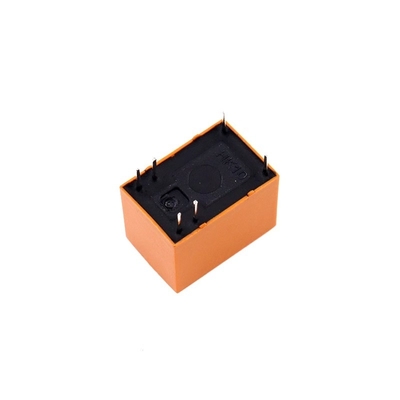

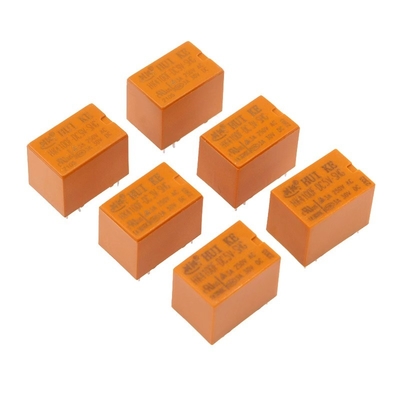

12V Solid State Relay Coil HK4100F-DC12V-SHG Environmental Protection 0 12V Solid State Relay Coil HK4100F-DC12V-SHG Environmental Protection 1 12V Solid State Relay Coil HK4100F-DC12V-SHG Environmental Protection 2
Packaging & Shipping

Standard export packaging available. Customers can choose from cartons, wooden cases, or wooden pallets according to requirements.

Frequently Asked Questions
How to obtain the price?

We typically provide quotes within 24 hours of receiving inquiries (excluding weekends and holidays). For urgent pricing requests, please contact us directly.

What is your delivery time?

Small batches typically ship within 7-15 days, while large orders may require approximately 30 days depending on order quantity and season.

What are your payment terms?

Factory pricing with 30% deposit and 70% balance payment before shipment via T/T transfer.

What are your shipping options?

Available by sea, air, or express (EMS, UPS, DHL, TNT, FEDEX). Please confirm preferred method before ordering.
