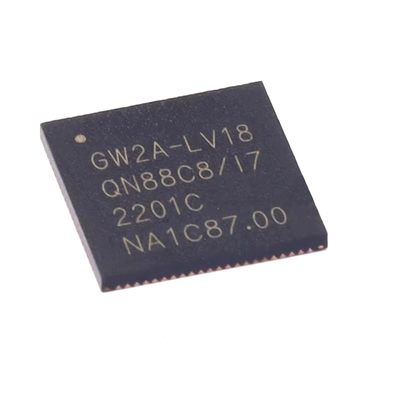

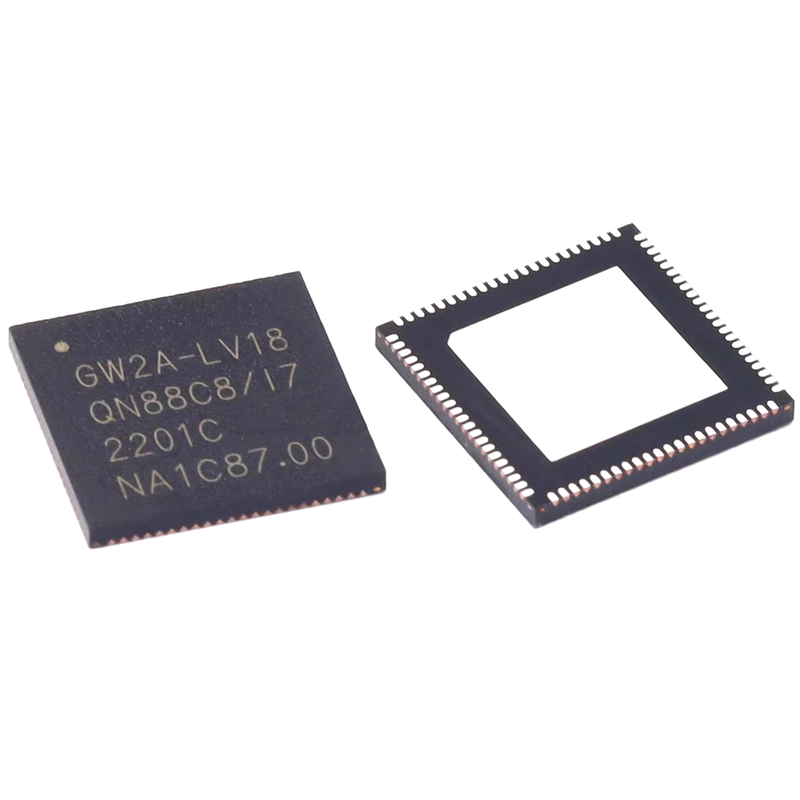

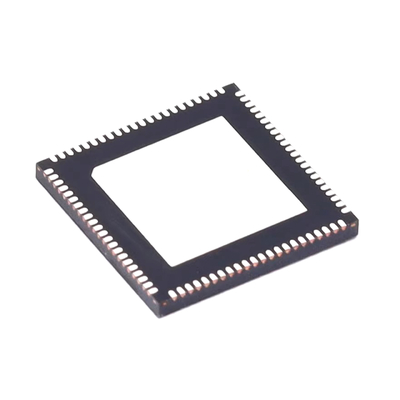

15552FF 40Kbits FPGA Field Programmable Gate Array GW2A-LV18QN88C8/I7

The GW2A FPGA from Gowin Semiconductor belongs to the Chenxi family 2 series, featuring abundant internal resources including high-performance DSP resources, high-speed LVDS interfaces, and extensive BSRAM memory resources. Combined with a streamlined FPGA architecture and 55nm process technology, the GW2A FPGA is ideal for high-speed, cost-effective applications.

• Low Power Consumption: 55nm SRAM process with 1.0V core voltage, supports dynamic clock on/off
• Versatile I/O Standards: Supports LVCMOS33/25/18/15/12, LVTTL33, SSTL33/25/18 I/II, SSTL15, HSTL18 I/II, HSTL15 I, PCI, LVDS25, RSDS, LVDS25E, BLVDSE, MLVDSE, LVPECLE, RSDSE
• MIPI Support: GPIO supports MIPI D-PHY RX/TX with single channel transmission rate up to 1.2Gbps
• High-Performance DSP: Supports 9×9, 18×18, 36×36bit multiplication operations with 54bit accumulator
• Flexible PLL Resources: Implements clock multiplier, division and phase shift with global clock network
• Multiple Configuration Modes: Supports JTAG, SSPI, MSPI, and CPU SERIAL configuration

Standard export packaging available. Customers can choose from cartons, wooden cases, or wooden pallets based on requirements.
