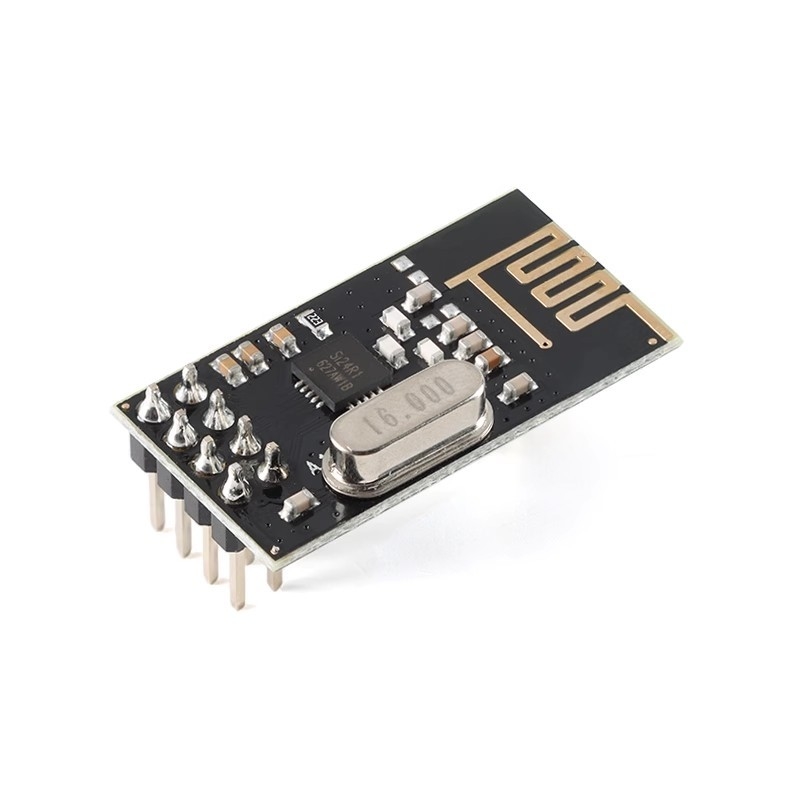

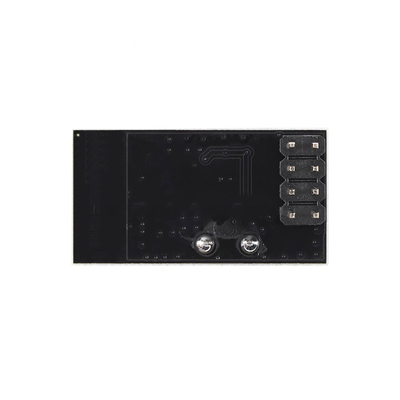

15.3mm 2.4G Wireless Transceiver Module Arduino Wireless Communication NF-01-S

Large Image : 15.3mm 2.4G Wireless Transceiver Module Arduino Wireless Communication NF-01-S

Product Details:

Place of Origin:	CN
Brand Name:	Ai-Thinker
Certification:	ROHS
Model Number:	NF-01-S
Document:	C135576_0550A89EE6EE32369D7...36.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	CONsult with
Packaging Details:	T/R
Delivery Time:	5-8DAY
Payment Terms:	Western Union,T/T
Supply Ability:	1000

Contact Now Chat Now

15.3mm 2.4G Wireless Transceiver Module Arduino Wireless Communication NF-01-S

Description

Module Model:	NF-01-S	Communication Interface:	Communication Interface
Spectrum Range:	Adjustable In Three Levels From 250k To 2Mbps (250kbps, 1Mbps, 2Mbps)	Antenna Form:	Adjustable From 2400MHz To 2525MHz, With A 1MHz Step
Maximum Transmission Power:	7+1 DBm	Receiving Sensitivity:	-96dBm@250kbps
Highlight:	15.3mm Wireless Transceiver Module , 2.4G arduino wireless communication , NF-01-S

2.4G Wireless Transceiver Module RF Module NF-01-S

2.4G Wireless Transceiver Module RF Module NF-01-S Is Suitable For Wireless Mouse Wireless Remote Control

This high-performance wireless module is designed for applications including wireless mice, remote controls, and IoT devices, featuring SPI interface and industrial-grade components.

Key Specifications

Attribute	Value
Module Model	NF-01-S
Encapsulation	DIP-8
Size	28.6 × 15.3mm
Communication Interface	SPI (up to 10Mbps)
Spectrum Range	2400MHz to 2525MHz (1MHz step)
Maximum Transmission Power	7+1 dBm
Receiving Sensitivity	-96dBm@250kbps

Product Features

DIP-8 ultra-small size package for easy integration
Supports CFSK/FSK modulation methods
Adjustable data rates: 2Mbps/1Mbps/250Kbps
Integrated LDO with high PSRR
Wide voltage range: 1.9-3.6V
126 channels with 1MHz bandwidth
Hardware interrupt output for data transmission
1-bit RSSI output support

Product Overview

The NF-01-S is a high-performance 2.4G wireless module with 5mW power output, featuring SPI interface and industrial-grade components. With air speeds up to 2Mbps and excellent stability, it's ideal for mass production and various IoT applications including wireless peripherals, remote controls, and sensor networks.

Technical Specifications

Transmission Current	25mA (7dBm)
Receiving Current	15mA (2Mbps)
Shutdown Current	1.0uA (Shutdown mode)
Working Temperature	-20℃ to 85℃ (recommended ≤70℃)
Storage Environment	-20℃~90℃, <90%RH

Packaging & Shipping

Standard export packaging available. Customers can choose from cartons, wooden cases, or pallets according to requirements.

Frequently Asked Questions

How to obtain the price?

We provide quotations within 24 hours of receiving inquiries (excluding weekends/holidays). For urgent requests, please contact us directly.

What is your delivery time?

Small batches typically ship within 7-15 days; large orders may require about 30 days depending on season and quantity.

What are your payment terms?

Factory pricing with 30% deposit and 70% balance payment before shipment via T/T.

What are your shipping methods?

Available options include sea, air, or express delivery (EMS, UPS, DHL, etc.). Please confirm before ordering.
