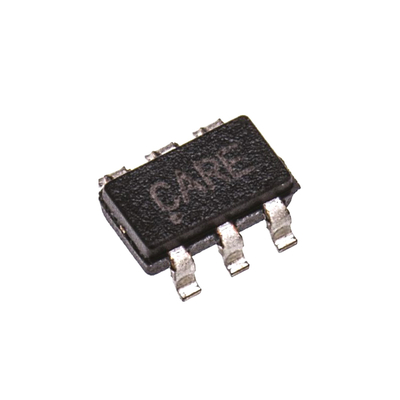

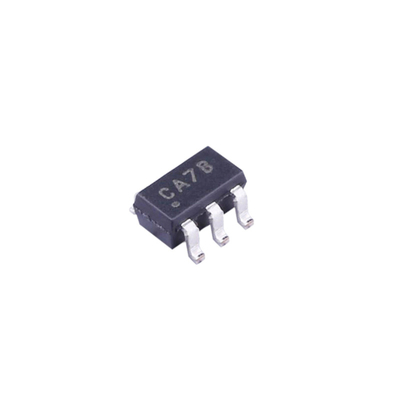

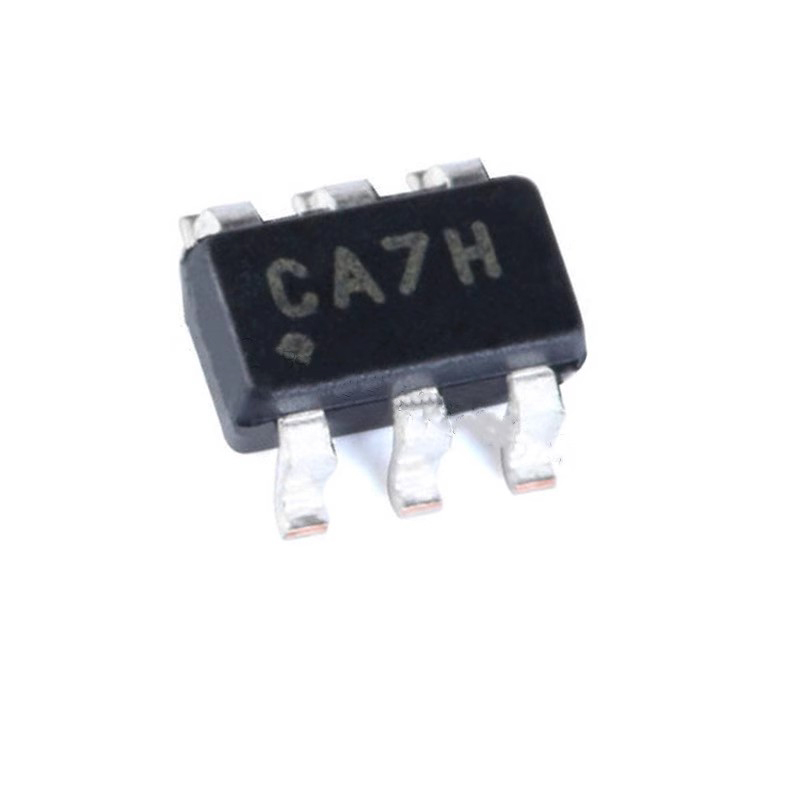

18bit 6pin analog to digital converter chip Single channel MCP3421A0T-E CH

• 18-bit ΔΣ ADC in a SOT-23-6 package
• Differential input operation
• Self calibration of Internal Offset and Gain per each conversion
• On-board Voltage Reference: Accuracy: 2.048V ± 0.05%, Drift: 5 ppm/°C
• On-board Programmable Gain Amplifier (PGA) with gains of 1, 2, 4 or 8
• On-board Oscillator
• INL: 10 ppm of FSR (FSR = 4.096V/PGA)
• Programmable Data Rate Options: 3.75 SPS (18 bits), 15SPS (16 bits), 60SPS (14 bits), 240 SPS (12 bits)
• One-Shot or Continuous Conversion Options
• Low current consumption: 145 µA typical (VDD= 3V, Continuous Conversion), 39µA typical (VDD= 3V, One-Shot Conversion with 1 SPS)
• Supports I2C Serial Interface: Standard, Fast and High Speed Modes
• Single Supply Operation: 2.7V to 5.5V
• Extended Temperature Range: -40°C to 125°C

The MCP3421 is a single channel low-noise, high accuracy ΔΣ A/D converter with differential inputs and up to 18 bits of resolution in a small SOT-23-6 package. The on-board precision 2.048V reference voltage enables an input range of ±2.048V differentially (Δ voltage = 4.096V). The device uses a two-wire I2C compatible serial interface and operates from a single 2.7V to 5.5V power supply.

The MCP3421 device performs conversion at rates of 3.75, 15, 60, or 240 samples per second (SPS) depending on the user controllable configuration bit settings using the two-wire I2C serial interface. This device has an on-board programmable gain amplifier (PGA). The user can select the PGA gain of x1, x2, x4, or x8 before the analog-to-digital conversion takes place. This allows the MCP3421 device to convert a smaller input signal with high resolution.

• Portable Instrumentation
• Weigh Scales and Fuel Gauges
• Temperature Sensing with RTD, Thermistor, and Thermocouple
• Bridge Sensing for Pressure, Strain, and Force
