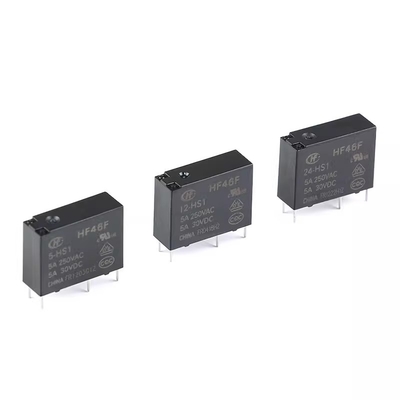

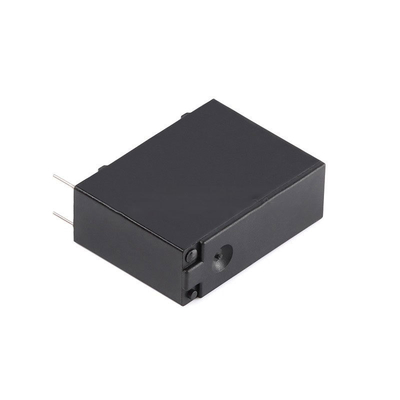

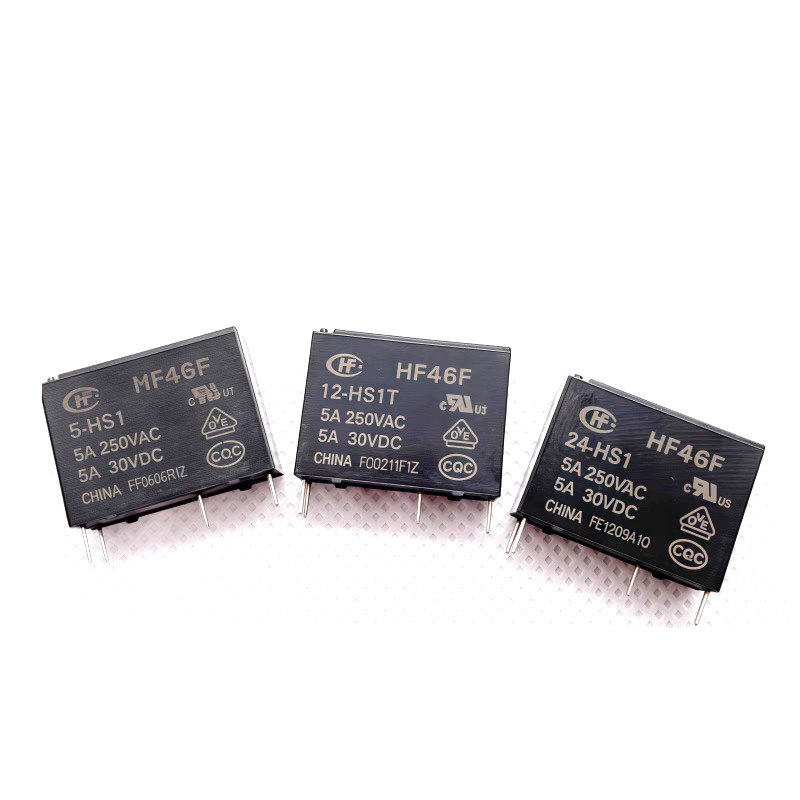

250VAC Ultra Small Medium Power Relay HF46F Series

250VAC Ultra Small Medium Power Relay HF46F Series
250VAC Ultra Small Medium Power Relay HF46F Series 250VAC Ultra Small Medium Power Relay HF46F Series 250VAC Ultra Small Medium Power Relay HF46F Series

Large Image :  250VAC Ultra Small Medium Power Relay HF46F Series

Product Details:
Place of Origin: CN
Brand Name: HF
Certification: ROHS
Model Number: HF46F
Document: BC0E7C96DB5A5F5FDD1C79EFA3C...C0.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: consult with
Packaging Details: T/R
Delivery Time: 5-8day
Payment Terms: T/T,Western Union
Supply Ability: 10000
Contact Now Chat Now

250VAC Ultra Small Medium Power Relay HF46F Series

Description
Contact Form: 1H Contact Resistance: <100m2(1A 6VDC)
Contact Material: AgSnO2, AgNi Contact Load (resistive: 3A 250VAC 130VDC
Maximum Switching Voltage: 5A 250VAC/30VDC Maximum Switching Current: 277VAC /30VDC
Maximum Switching Power: 5A Rated Voltage: 3/5/6/9/12/16/24VDC
Highlight:

250VAC Medium Power Relay

,

Ultra small Medium Power Relay

,

HF46F

Ultra-small Medium Power Relay HF46F Series
Product Specifications
Attribute Value
Contact form 1H
Contact resistance <100mΩ (1A 6VDC)
Contact material AgSnO2, AgNi
Contact load (resistive) 3A 250VAC/130VDC
Maximum switching voltage 5A 250VAC/30VDC
Maximum switching current 277VAC/30VDC
Maximum switching power 5A
Rated voltage 3/5/6/9/12/16/24VDC
Product Description

The HF46F series ultra-small medium power relay features a compact design with 5A contact switching capability in a width not exceeding 7.2mm, making it ideal for high-density installations.

Surge voltage resistance between coil and contact: 10kV (meets VDE0631 enhanced insulation requirements)
High sensitivity with power consumption of only 200mW
F-class insulation available
RoHS compliant environmentally friendly product
Compact dimensions: 20.5×7.2×15.3mm
Performance Parameters
Insulation resistance: 1000MΩ (500VDC)
Medium pressure resistance: 4000VAC 1 min
Surge voltage (coil to moving contact): 10kV (1.2/50μs)
Operating time: <10ms at rated voltage
Release time: <10ms at rated voltage
Mechanical durability: 5×10

Tag:

PCB Power Relay,

Medium Power Relay,

safety relay
