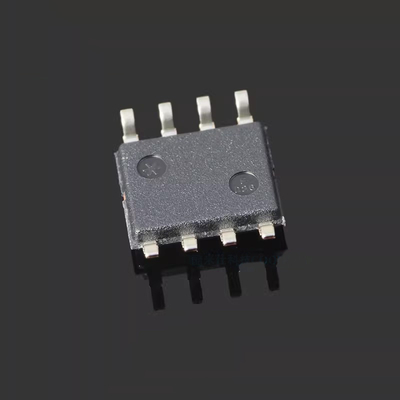

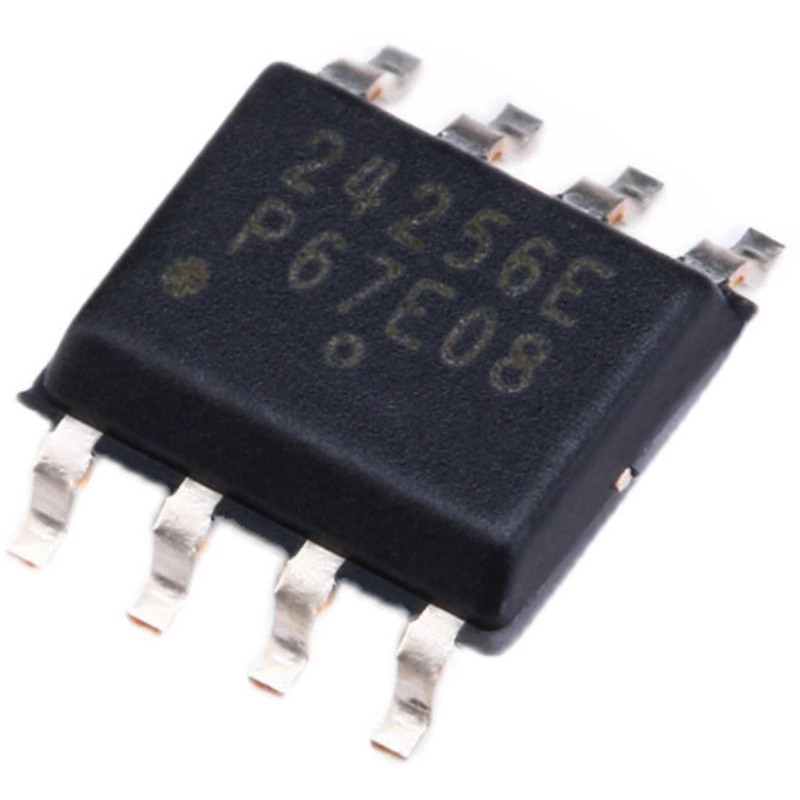

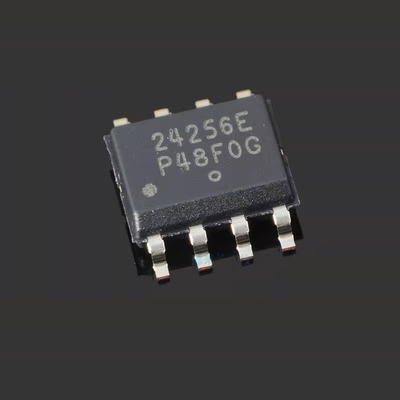

256Kb 1MHz Electrically Erasable Prom 2.5V CAT24C256WI-GT3

The CAT24C256 is a 256 kb Serial CMOS EEPROM, internally organized as 32,768 words of 8 bits each. This high-reliability memory chip features:

• Supports Standard (100 kHz), Fast (400 kHz) and Fast-Plus (1 MHz) I2C Protocol
• 1.8 V to 5.5 V wide supply voltage range
• 64-Byte Page Write Buffer for efficient data storage
• Hardware Write Protection for entire memory via WP pin
• Schmitt Triggers and Noise Suppression Filters on I2C bus inputs
• Low Power CMOS Technology
• 1,000,000 Program/Erase Cycles
• 100 Year Data Retention
• Industrial and Extended Temperature Range (-40°C to +85°C)
• Pb-Free, Halogen Free/BFR Free, and RoHS Compliant

Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to specific requirements.
