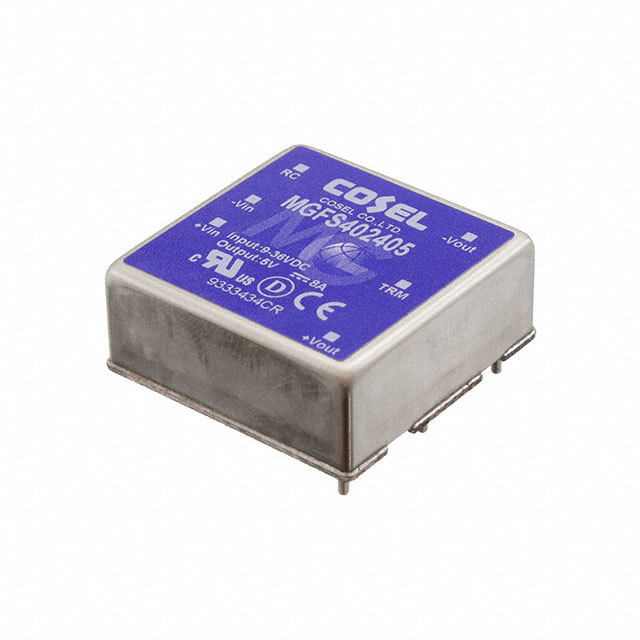

40W 9 - 36Vin Dc Dc Isolated Power Supply 5V 8A PCB MGFS402405

MODEL MGFS1R5243R3 MGFS1R52405 MGFS1R52412 MGFS1R52415 MAX OUTPUT WATTAGE[W] 1.32 1.50 1.56 1.50 DC OUTPUT VOLTAGE[V] 3.3 5 12 15 CURRENT[A] 0.4 0.3 0.13 0.1 INPUT VOLTAGE[V] DC9 - 36 (Surge voltage 50V,100ms max) EFFICIENCY[%] 77-83% depending on model LINE REGULATION[mV] 20-60max depending on model LOAD REGULATION[mV] 20-60max depending on model RIPPLE[mVp-p] 120-150max depending on model TEMPERATURE REGULATION[mV] 50-290max depending on temperature range START-UP TIME[ms] 30max (Minimum input, Io=100%) PROTECTION CIRCUIT: Overcurrent protection works over 105% of rating and recovers automatically ISOLATION: Input-Output DC1,500V or AC1,000V 1minute ENVIRONMENT: Operating -40 to +85C, 20 to 95%RH (Non condensing) VIBRATION: 10 - 55Hz 98.0m/s2 (10G), 3minute period IMPACT: 490.3m/s2 (50G) 11ms SAFETY APPROVALS: UL60950-1, C-UL, EN60950-1
