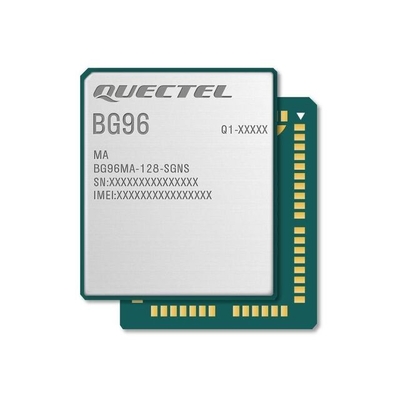

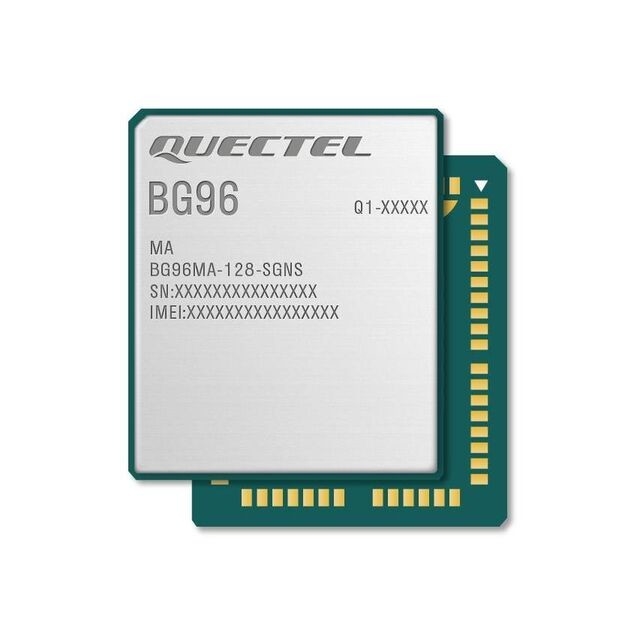

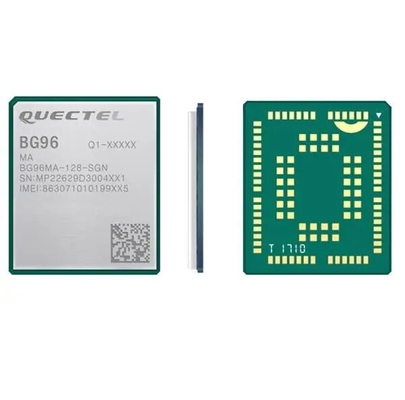

LTE Cat M1 Cat NB1 EGPRS Module BG96MC-128-SGNS
LTE Cat M1 Cat NB1 EGPRS Module Global Frequency Band Support Ultra-low Power Consumption Feature BG96MC-128-SGNS
Global Frequency Band Support with Ultra-low Power Consumption
Key Features
- Supports LTE Cat M1/Cat NB1/EGPRS with global frequency bands
- Ultra-low power consumption (10 μA in PSM mode)
- Compact SMT form factor (26.5 × 22.5 × 2.3 mm)
- High integration with LGA package for automated manufacturing
- Supports VoLTE (Cat M1 only) and SMS services
- Multiple interface options including USB 2.0, UART, I2C, and GPIO
- Optional GNSS support (GPS, GLONASS, BeiDou, Galileo, QZSS)
- Wide operating temperature range (-40°C to +85°C)
Technical Specifications
| Attribute |
Value |
| GPRS Code |
CS1 to CS4 |
| Data Rate |
Up to 1Mbps |
| Transmission Rate |
1W/2W optional |
| Dimension |
34 × 20 × 4 mm |
| Receiving Sensitivity |
-139dbm |
| Interface |
SPI |
| Temperature Range |
-40°C to +80°C |
| Frequency |
433Mhz, 490Mhz |
| Transmission Distance |
10Km~20Km |
| Transmission Range |
2500~4000 meters |
Detailed Description
The BG96MC-128-SGNS is an LTE Cat M1/Cat NB1/EGPRS module offering maximum data rates of 375 kbps downlink and uplink. With global frequency band support, ultra-low power consumption, and compatibility with Quectel LTE standard modules, it provides an ideal solution for IoT and M2M applications.
Data Performance
Cat M1: 375 kbps (DL/UL)
Cat NB1: 32 kbps (DL), 70 kbps (UL)
EDGE: 296 kbps (DL), 236.8 kbps (UL)
GPRS: 107 kbps (DL), 85.6 kbps (UL)
Interfaces
USB 2.0 (480 Mbps)
UART × 3
PCM × 1
ADC × 2 (15-bit)
GPIO × 2
Electrical Characteristics
Output Power: 23 dBm max
PSM Consumption: 10 μA
Voltage Range: 3.3-4.3 V
Typical Voltage: 3.8 V
Environmental
Operating Temp: -35°C to +75°C
Extended Temp: -40°C to +85°C
Dimensions: 26.5 × 22.5 × 2.3 mm
Weight: ≈3.1 g
Certifications & Approvals
Global certifications include CE, FCC, PTCRB, IC, CCC, KC, NCC, JATE/TELEC, RCM, NBTC, IMDA, UKCA, and RoHS. Carrier approvals from Vodafone, Deutsche Telekom, Verizon, AT&T, T-Mobile, and other major global providers.
Packaging & Shipping
Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to requirements.
