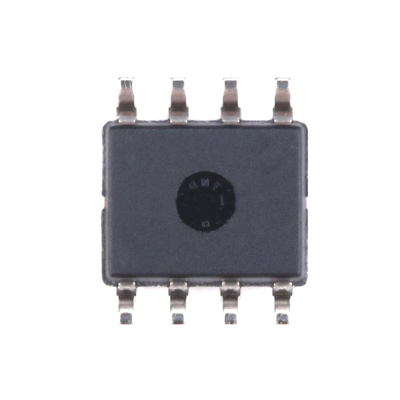

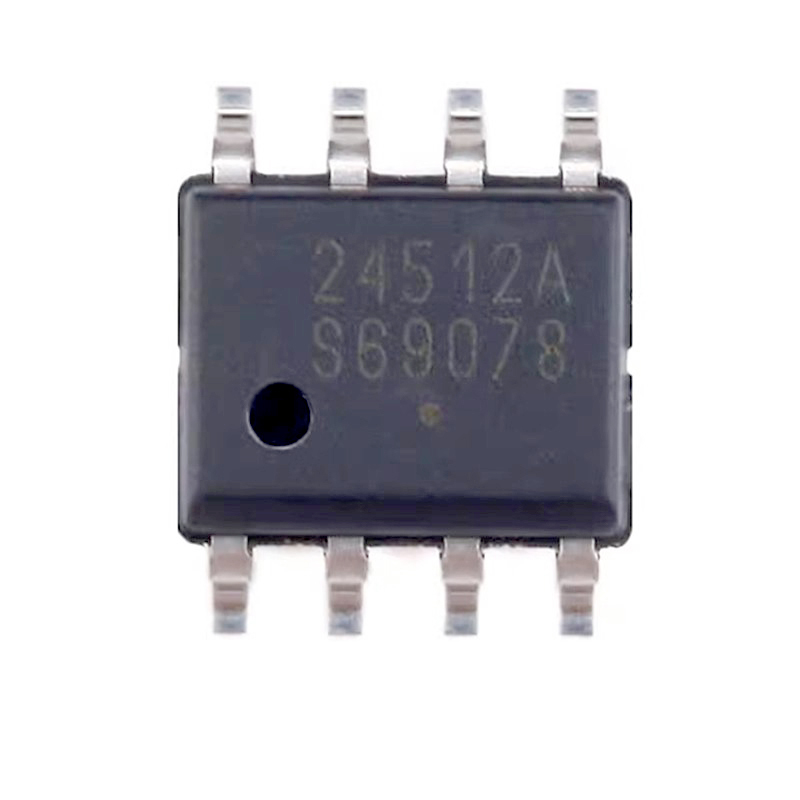

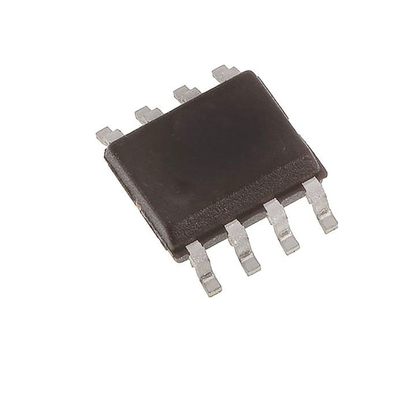

512kB EEPROM Chip Serial I2C Interface CAT24C512WI-GT3

The CAT24C512 is a 512 Kb Serial CMOS EEPROM, internally organized as 65,536 words of 8 bits each.

It features a 128-byte page write buffer and supports the Standard (100 kHz), Fast (400 kHz) and Fast-Plus (1 MHz) I2C protocol.

Write operations can be inhibited by taking the WP pin High (this protects the entire memory). External address pins make it possible to address up to eight CAT24C512 devices on the same bus.

On-Chip ECC (Error Correction Code) makes the device suitable for high reliability applications.

• Supports Standard, Fast and Fast-Plus I2C Protocol
• 1.8 V to 5.5 V Supply Voltage Range
• 128-Byte Page Write Buffer
• Hardware Write Protection for Entire Memory
• Schmitt Triggers and Noise Suppression Filters on I2C Bus Inputs (SCL and SDA)
• Low Power CMOS Technology
• 1,000,000 Program/Erase Cycles
• 100 Year Data Retention
• Industrial and Extended Temperature Range
• Available in multiple package options: 8-pin PDIP, SOIC, TSSOP, MSOP, 8-pad UDFN and 8-ball WLCSP
• Pb-Free, Halogen Free/BFR Free and RoHS Compliant

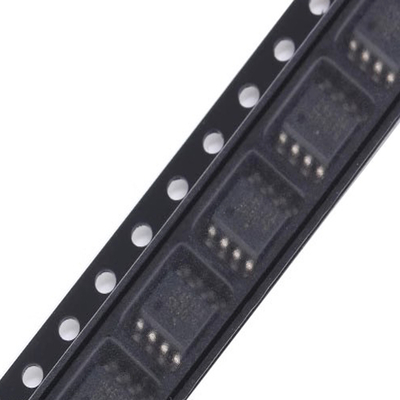

Standard export packaging available. Customers can choose from cartons, wooden cases and wooden pallets according to their requirements.
