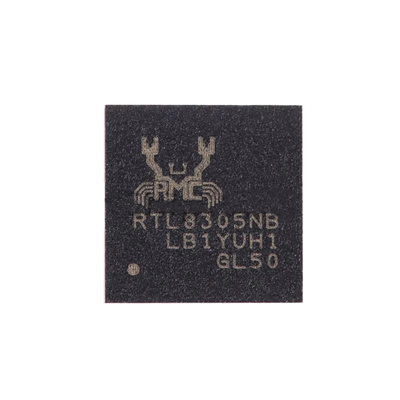

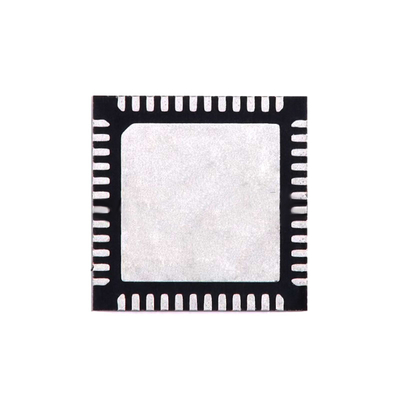

5 Port Wireless Rf Ic Ethernet Switch Controller Circuit Chip RTL8305NB-VB-CG

The 5-port 10/100M Ethernet switch controller integrates the memory communication interface circuit chip RTL8305NB-VB-CG with comprehensive diagnostic capabilities.

• Basic Switching Functions: 5-port switch controller with memory and transceiver for 10Base-T and 100Base-TX
• High Performance: Non-blocking wire-speed reception and transmission with non-head-of-line-blocking forwarding
• Compliance: Meets IEEE 802.3/802.3u auto negotiation standards
• Memory: Built-in high efficiency SRAM for packet buffer with 2K-entry lookup table
• Flow Control: Fully supported for both half and full duplex operations
• Quality of Service: Supports 4-level priority queues and various bandwidth control methods
• Security: Advanced storm filtering and reserved control frame filtering
• VLAN Support: Up to 16 VLAN groups with flexible 802.1Q port/tag-based VLAN
• Power Saving: Supports Energy-Efficient Ethernet (EEE) function (IEEE 802.3az)
• Diagnostics: Hardware loop detection with LED/buzzer indicators and cable diagnosis (RTCT function)

Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.
