6W 5V Power Supply Module 24v To 5v Isolated Converter CC6-2405SF-E

6W 5V Power Supply Module 24v To 5v Isolated Converter CC6-2405SF-E
6W 5V Power Supply Module 24v To 5v Isolated Converter CC6-2405SF-E 6W 5V Power Supply Module 24v To 5v Isolated Converter CC6-2405SF-E 6W 5V Power Supply Module 24v To 5v Isolated Converter CC6-2405SF-E

Large Image :  6W 5V Power Supply Module 24v To 5v Isolated Converter CC6-2405SF-E

Product Details:
Place of Origin: JP
Brand Name: TDK-Lambda
Certification: ROHS
Model Number: CC6-2405SF-E
Document: F31100E244529E0DCB15681CE6D...EC.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: CONSULT WITH
Packaging Details: T/R
Delivery Time: 5-8DAY
Payment Terms: T/T,Western Union
Supply Ability: 100
Contact Now Chat Now

6W 5V Power Supply Module 24v To 5v Isolated Converter CC6-2405SF-E

Description
Manufacturer:: TDK-Lambda Product Category:: Isolated DC/DC Converters - Through Hole
Mounting Style:: Through Hole Number Of Outputs:: 1 Output
Output Power:: 6 W Input Voltage, Nominal:: 24 V
Input Voltage - Min:: 18 V Input Voltage - Max:: 500 V
Subcategory:: DC-DC Converters
Highlight:

6W Power Supply Module

,

24v to 5v isolated converter

,

CC6-2405SF-E

Isolated DC/DC Converters 6W 5V 1.2A Power Module Power Supply CC6-2405SF-E
Product Specifications
Attribute Value
Manufacturer TDK-Lambda
Product Category Isolated DC/DC Converters - Through Hole
Mounting Style Through Hole
Number of Outputs 1 Output
Output Power 6 W
Input Voltage, Nominal 24 V
Input Voltage - Min 18 V
Input Voltage - Max 36 V
Output Voltage-Channel 1 5 V
Output Current-Channel 1 1.2 A
Isolation Voltage 500 V
Operating Temperature Range -40°C to +85°C
Dimensions 22.86 × 22.61 × 8.5 mm (0.9 × 0.89 × 0.335 in)
Weight 0.204589 oz
Key Features
  • Mounting area halved compared to existing products
  • No tantalum capacitor or aluminum electrolytic capacitor
  • Remote On/Off function incorporated
  • High accuracy of ±3% in output voltage
  • 5-side metal-shielded low noise design
  • Lightweight design with no resin filling
  • Supports DIP insertion, SMD mounting and SIP vertical insertion
  • Operates in ambient temperatures of -40 to 85°C
  • Input to output isolation of 500Vac

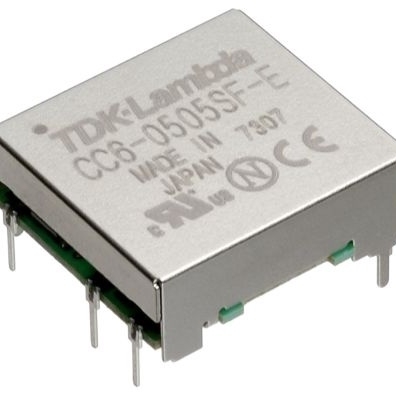

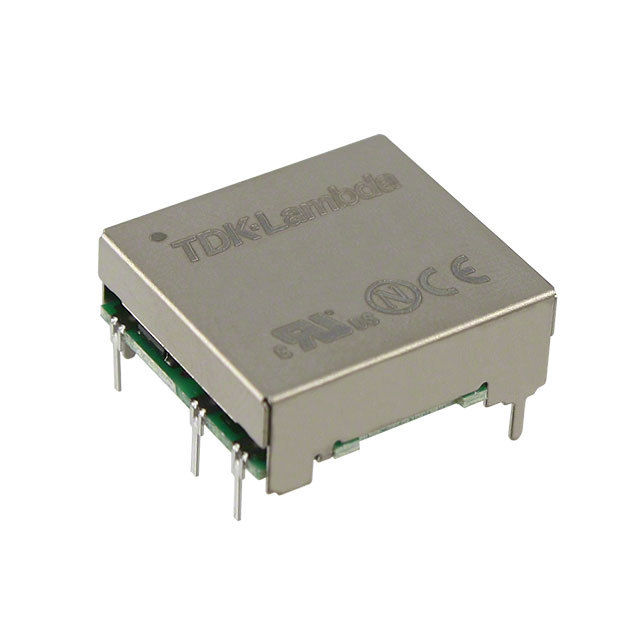

Product Images
6W 5V Power Supply Module 24v To 5v Isolated Converter CC6-2405SF-E 0 6W 5V Power Supply Module 24v To 5v Isolated Converter CC6-2405SF-E 1 6W 5V Power Supply Module 24v To 5v Isolated Converter CC6-2405SF-E 2
Packaging Information

Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.

Frequently Asked Questions
How to obtain the price?

We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent requests, please contact us directly.

What is your delivery time?

Delivery time depends on order quantity and season. Small batches typically ship within 7-15 days, while large batches may require approximately 30 days.

What are your payment terms?

Factory price with 30% deposit and 70% balance payment via T/T before shipment.

What are the shipping options?

Available shipping methods include sea, air, or express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm with us before ordering.
