ADC Digital Converter Chip For Medical Equipment Instruments MAX31865ATP+T

ADC Digital Converter Chip For Medical Equipment Instruments MAX31865ATP+T
ADC Digital Converter Chip For Medical Equipment Instruments MAX31865ATP+T ADC Digital Converter Chip For Medical Equipment Instruments MAX31865ATP+T ADC Digital Converter Chip For Medical Equipment Instruments MAX31865ATP+T

Large Image :  ADC Digital Converter Chip For Medical Equipment Instruments MAX31865ATP+T

Product Details:
Place of Origin: TAIWAN
Brand Name: ADI/MAXIM
Certification: ROSH
Model Number: MAX31865ATP+T
Document: C118474_ADC_MAX31865ATP+T_A...+T.PDF
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: consult with
Packaging Details: T/R
Delivery Time: 5-8DAY
Payment Terms: T/T
Supply Ability: 10000
Contact Now Chat Now

ADC Digital Converter Chip For Medical Equipment Instruments MAX31865ATP+T

Description
Features: Low Power Consumption, High Accuracy, Low Noise, Programmable Gain Product Type: Analog-to-Digital Converter/Digital-to-Analog Converter
Package Size: 3x3mm, 5x5mm, 8x8mm Operating Temperature Range: -40°C To 85°C
Applications: Data Acquisition, Instrumentation, Audio Processing, Communication Systems Resolution: 8-bit, 10-bit, 12-bit, 16-bit
Package Type: QFN, TQFP, SOIC Interface: SPI, I2C, Parallel
Power Supply: 3.3V, 5V
Highlight:

ADC Digital Converter Chip

,

Medical Equipment Digital Converter Chip

,

MAX31865ATP+T

ADC Digital Converter Chip MAX31865ATP+T
Product Overview

The MAX31865 is an easy-to-use resistance-to-digital converter optimized for platinum resistance temperature detectors (RTDs). An external resistor sets the sensitivity for the RTD being used, while a precision Δ-Σ ADC converts the RTD resistance ratio to reference resistance into digital form.

The MAX31865 inputs are protected against overvoltage faults up to ±45V. It includes programmable detection for RTD and cable open/short conditions.

Key Attributes
Attribute Value
Product Type Analog-to-Digital Converter/Digital-to-Analog Converter
Package Size 3x3mm, 5x5mm, 8x8mm
Operating Temperature Range -40°C to 85°C
Applications Data acquisition, instrumentation, audio processing, communication systems
Resolution 8-bit, 10-bit, 12-bit, 16-bit
Features Low power consumption, high accuracy, low noise, programmable gain
Package Type QFN, TQFP, SOIC
Interface SPI, I2C, Parallel
Power Supply 3.3V, 5V
Key Features and Benefits
  • Integrated solution reduces system cost, simplifies design work, and shortens design cycles
  • Converts platinum RTD resistance directly to digital value
  • Supports 100Ω to 1kΩ platinum RTDs (PT100 to PT1000 at 0°C)
  • Compatible with 2-wire, 3-wire, and 4-wire sensor connections
  • SPI-compatible interface
  • Available in 20-pin TQFN and SSOP packages
  • High accuracy meets error budgets: 15-bit ADC resolution with nominal temperature resolution of 0.03125°C
  • ±45V input protection and built-in fault detection enhance system reliability
Technical Specifications
Absolute Maximum Ratings

VDD to GND1 voltage range: -0.3V to +4.0V

BIAS, REFIN+, REFIN-, ISENSOR voltage range: -0.3V to (VDD + 0.3V)

FORCE+, FORCE2, FORCE-, RTDIN+, RTDIN- to GND1 voltage range: -50V to +50V

Continuous power dissipation (TA = +70°C): 2758.6mW (TQFN), 952.4mW (SSOP)

ESD protection (all pins, HBM): ±2kV

Operating temperature range: -40°C to +125°C

Junction temperature: +150°C

Storage temperature range: -65°C to +150°C

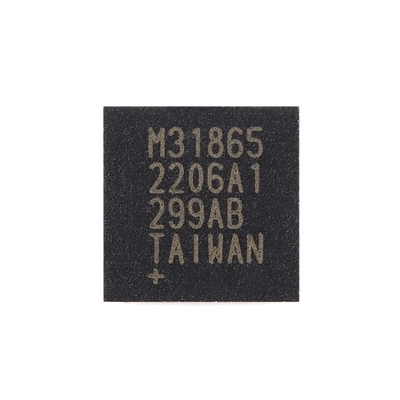

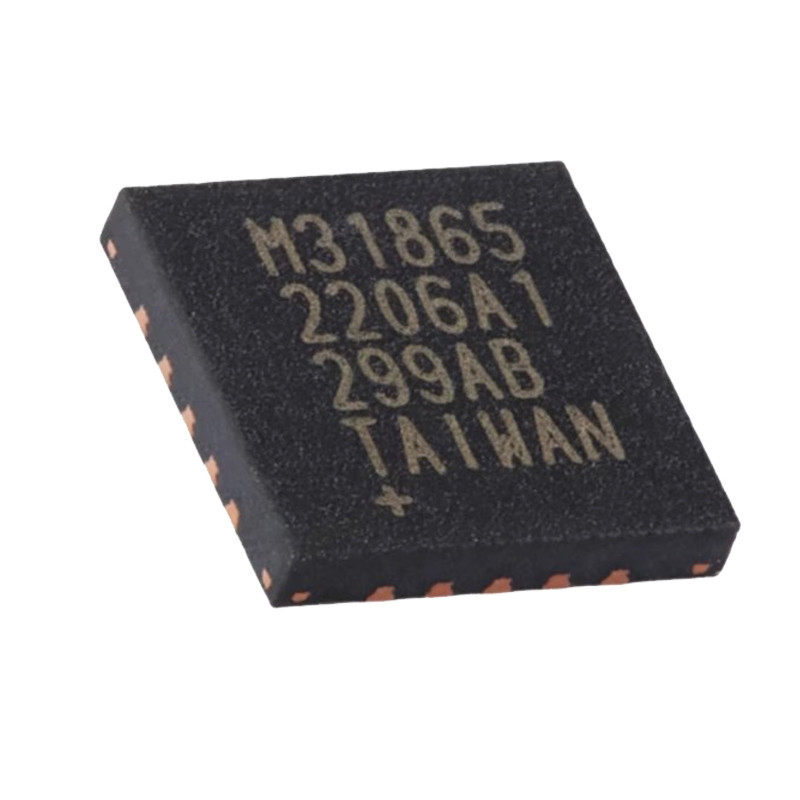

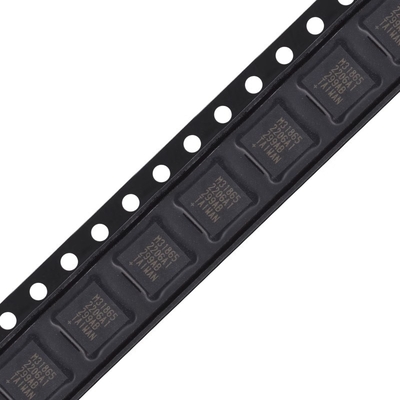

Product Images
ADC Digital Converter Chip For Medical Equipment Instruments MAX31865ATP+T 0 ADC Digital Converter Chip For Medical Equipment Instruments MAX31865ATP+T 1 ADC Digital Converter Chip For Medical Equipment Instruments MAX31865ATP+T 2
Packaging and Shipping

Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.

Frequently Asked Questions
How to obtain the price?

We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly via email or other available channels.

What is your delivery time?

Delivery time depends on order quantity and season. Small batches typically ship within 7-15 days, while large orders may require approximately 30 days.

What are your payment terms?

Factory pricing with 30% deposit and 70% balance via T/T before shipment.

What are your shipping methods?

We offer sea, air, and express shipping (EMS, UPS, DHL, TNT, FEDEX). Please confirm preferred method before ordering.

How do you support long-term business relationships?

We maintain excellent quality and competitive pricing to ensure customer benefits. We value every customer relationship and conduct business with sincerity and professionalism.
