All Network 4G Positioning Module CAT4 Communication EC20CEHDLG-MINIPCIE-CB

Large Image : All Network 4G Positioning Module CAT4 Communication EC20CEHDLG-MINIPCIE-CB

Product Details:

Place of Origin:	CN
Brand Name:	Quectel
Certification:	ROHS
Model Number:	EC20CEHDLG-MINIPCIE-CB

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	CONSULT WITH
Packaging Details:	T/R
Delivery Time:	5-8DAY
Payment Terms:	Western Union,T/T
Supply Ability:	1000

Contact Now Chat Now

All Network 4G Positioning Module CAT4 Communication EC20CEHDLG-MINIPCIE-CB

Description

Working Temperature:	-30°C To +70°C	Wifi Host Interface:	SDIO2.0
Clock Source:	26MHz	Memory:	DDR2 64MB
Color:	UAV Drone Video Transmission	Ieee Standards:	IEEE 802.11b/g/n
Product Host Interface:	SDIO For WiFi; UART For Bluetooth	Main Chip:	CYW43438KUBG
Operating Band:	2.4-2.835Ghz	Product Main Chip:	CYW43438KUBG
Uart Interface:	Bluetooth 4.2	Antenna:	1T1R
Data Transfer Rate:	Up To 1.3Gbps	Certifications:	FCC, CE, RoHS
Highlight:	All network Positioning Module , 4G GPS Positioning Module , EC20CEHDLG-MINIPCIE-CB

Internet Of Things 4G All-network CAT4 Communication Network Module EC20 GPS Positioning EC20CEHDLG-MINIPCIE-CB

Product Specifications

Attribute	Value
Working Temperature	-30°C to +70°C
Wifi Host Interface	SDIO2.0
Clock Source	26MHz
Memory	DDR2 64MB
Ieee Standards	IEEE 802.11b/g/n
Product Host Interface	SDIO for WiFi; UART for Bluetooth
Main Chip	CYW43438KUBG
Operating Band	2.4-2.835Ghz
Uart Interface	Bluetooth 4.2
Antenna	1T1R
Data Transfer Rate	Up to 1.3Gbps
Certifications	FCC, CE, RoHS
Dimensions	32mm × 29mm × 2.4mm
Data Rate	150Mbps

Product Overview

The EC20 R2.1 Mini PCIe is an advanced LTE Cat 4 module specifically designed for M2M and IoT applications. This high-performance communication module supports:

LTE 3GPP Release 11 technology with maximum downlink rate of 150 Mbps and uplink rate of 50 Mbps
Backward compatibility with EDGE and GSM/GPRS networks for reliable operation in all coverage areas
Multiple Input/Output (MIMO) technology for improved signal quality and reduced bit error rate
Built-in multi-constellation high-precision GNSS receiver (GPS/GLONASS/BeiDou/Galileo/QZSS)
Comprehensive network protocols and industrial standard interfaces
Support for multiple operating systems including Windows 7/8/10, Linux, and Android

This module is ideal for applications in central processing units, routers, data cards, tablet computers, security systems, and industrial-grade PDAs.

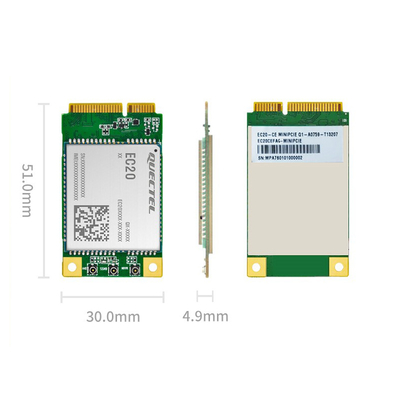

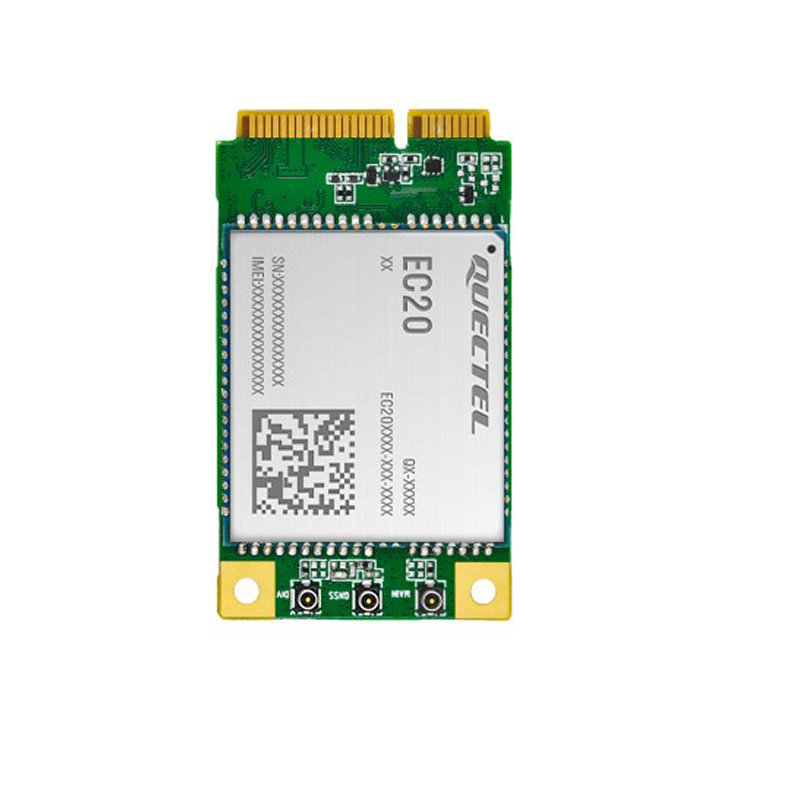

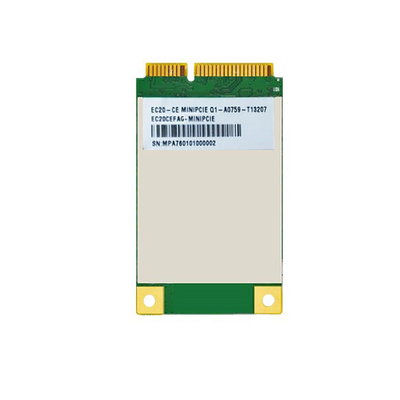

Product Images

Packaging Information

Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.

Frequently Asked Questions

How to obtain the price?

We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.

What is your delivery time?

Delivery time depends on order quantity and season. Small batches typically ship within 7-15 days, while large batches may require approximately 30 days.

What are your payment terms?

Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.

What are the shipping options?

We offer sea, air, and express shipping (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.

How do you support long-term business relationships?

We maintain excellent product quality and competitive pricing to ensure customer satisfaction. We value every business relationship and strive to build lasting partnerships.
