Altera FPGA Cyclone CPLD PLD IV E Series EP4CE10E22C8N

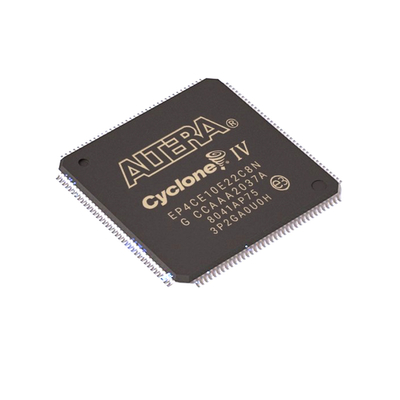

Large Image : Altera FPGA Cyclone CPLD PLD IV E Series EP4CE10E22C8N

Product Details:

Place of Origin:	CN
Brand Name:	Intel/Altera
Certification:	ROHS
Model Number:	EP4CE10E22C8N
Document:	C32726_40C319565347CC1BFC8F...42.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	CONSULT WITH
Packaging Details:	T/R
Delivery Time:	5-8DAY
Payment Terms:	Western Union,T/T
Supply Ability:	10000

Contact Now Chat Now

Altera FPGA Cyclone CPLD PLD IV E Series EP4CE10E22C8N

Description

Product Category::	FPGA - Field Programmable Gate Array	Series::	EP4CE10 Cyclone IV E
Number Of Logic Elements::	10320 LE	Package / Case::	EQFP-144
Tradename::	Cyclone IV	Brand::	Altera
Maximum Operating Frequency::	200 MHz	Moisture Sensitive::	Yes
Highlight:	Cyclone CPLD PLD , CPLD PLD 200 MHz , EP4CE10E22C8N

Altera FPGA Cyclone IV E Series Programmable Logic Device CPLD EP4CE10E22C8N

Product Specifications

Attribute	Value
Product Category	FPGA - Field Programmable Gate Array
Series	EP4CE10 Cyclone IV E
Number of Logic Elements	10320 LE
Package / Case	EQFP-144
Tradename	Cyclone IV
Brand	Altera
Maximum Operating Frequency	200 MHz
Moisture Sensitive	Yes

Technical Description

The Altera FPGA Cyclone IV E series programmable logic device (CPLD EP4CE10E22C8N) offers high performance with 10,320 logic elements and operates at frequencies up to 200 MHz.

Absolute Maximum Ratings: These define the maximum operating conditions for Cyclone IV devices. Functional operation is not implied at these conditions. Conditions beyond these ratings may cause permanent damage to the device.

Voltage Specifications: Input signals may overshoot to specified voltages and undershoot to -2.0 V for currents less than 100 mA and periods shorter than 20 ns. Overshoot duration is specified as a percentage of high-time over the device's lifetime.

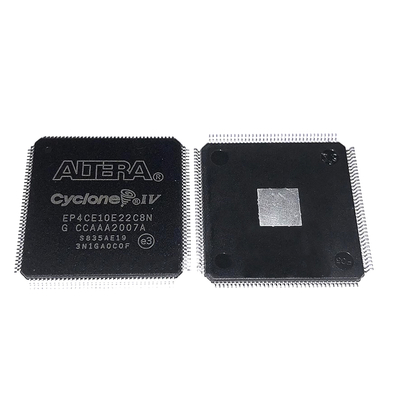

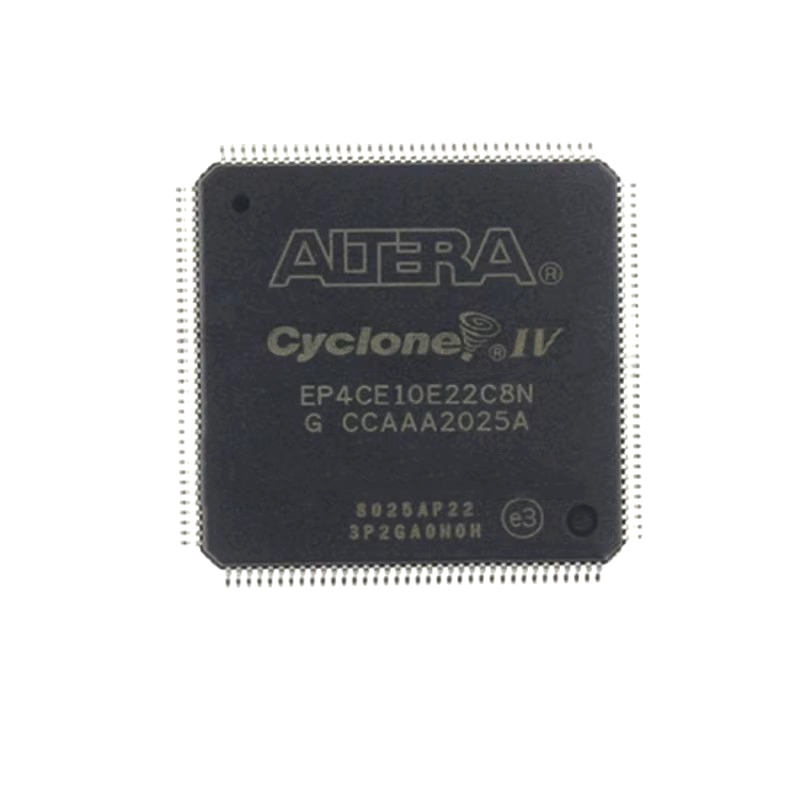

Product Images

Packaging and Shipping

Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.

Frequently Asked Questions

How to obtain the price?

We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent requests, please contact us directly.

What is your delivery time?

Delivery times vary by order quantity and season. Small batches typically ship within 7-15 days, while large batches may require about 30 days.

What are your payment terms?

Factory price with 30% deposit and 70% balance payment before shipment via T/T transfer.

What are your shipping options?

We offer sea, air, or express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
