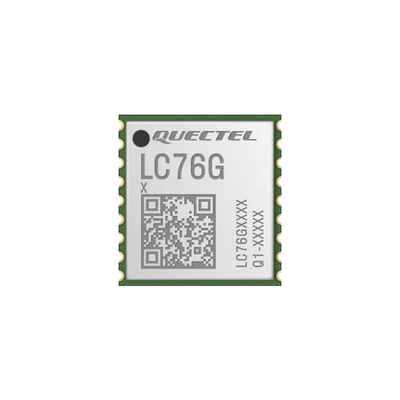

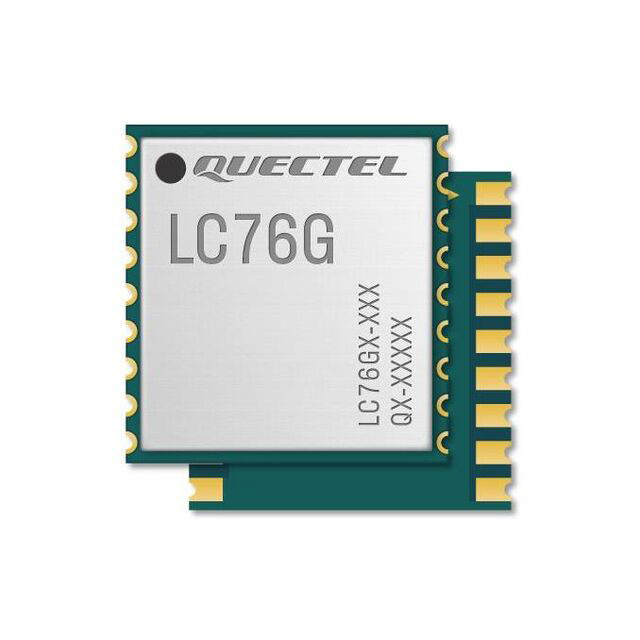

Beidou Positioning GNSS Receiver Module Multiple Satellite System Navigation Modules LC76G

The Quectel LC76G series GNSS module, based on the latest enhanced chipset, supports simultaneous reception of GPS, GLONASS, Galileo, BDS and QZSS signals. Designed to be compatible with Quectel L76 modules, the LC76G series enables smooth migration.

Compared to single constellation receivers, the LC76G series increases the number of visible satellites, reduces Time To First Fix (TTFF), and improves positioning accuracy, particularly in dense urban environments.

• Multi-GNSS engine supporting GPS, GLONASS, Galileo, BDS and QZSS for fast, accurate positioning in any environment
• Integrated LNA provides high sensitivity for superior performance in challenging environments
• Embedded multi-tone active interference canceller
• Supported interfaces: UART and I2C
• EASY (Embedded Assist System) technology enables quick position fixes even at low signal levels
• ALP* (Adaptive Low Power) technology adaptively adjusts on/off time based on environmental conditions
• Ideal for both consumer and industrial applications

Dimensions: 10.1mm × 9.7mm × 2.4mm

Weight: Approximately 0.5g

Operating Temperature: -40°C to +85°C

Storage Temperature: -40°C to +90°C

Tracking Channels: 47

Horizontal Position Accuracy: 1.5m autonomous

TTFF (with EASY): Cold start: 15s, Warm start: 2s, Hot start: 1s

Sensitivity: Acquisition: -147 dBm, Tracking: -166 dBm

Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.
