Eight Channel BUS PCI UART 32 Bit FIFO Interface Integrated Circuit 144LQFP XR17D158IV-F

Eight Channel BUS PCI UART 32 Bit FIFO Interface Integrated Circuit 144LQFP XR17D158IV-F
Eight Channel BUS PCI UART 32 Bit FIFO Interface Integrated Circuit 144LQFP XR17D158IV-F Eight Channel BUS PCI UART 32 Bit FIFO Interface Integrated Circuit 144LQFP XR17D158IV-F Eight Channel BUS PCI UART 32 Bit FIFO Interface Integrated Circuit 144LQFP XR17D158IV-F

Large Image :  Eight Channel BUS PCI UART 32 Bit FIFO Interface Integrated Circuit 144LQFP XR17D158IV-F

Product Details:
Place of Origin: CN
Brand Name: MaxLinear
Certification: ROHS
Model Number: XR17D158IV-F
Document: C517972_1132C7C3880FAFEAA26...4C.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: CONSULT WITH
Packaging Details: T/R
Delivery Time: 5-8DAY
Payment Terms: T/T,Western Union
Supply Ability: 1000
Contact Now Chat Now

Eight Channel BUS PCI UART 32 Bit FIFO Interface Integrated Circuit 144LQFP XR17D158IV-F

Description
Manufacturer: MaxLinear Number Of Channels: 8
FIFO's: 64 Byte With Auto Flow Control: Yes
Mounting Type: Surface Mount Supplier Device Package: 144-LQFP (20x20)
Voltage - Supply: 3.3V, 5V Data Rate (Max): 6.25Mbps
Highlight:

Eight channel pci uart

,

pci uart 32 bit

,

144LQFP XR17D158IV-F

High-performance Eight-channel PCI BUS UART 32-bit FIFO Interface Integrated Circuit 144LQFP XR17D158IV-F
Product Specifications
Attribute Value
Manufacturer MaxLinear
Number of Channels 8
FIFO's 64 Byte
With Auto Flow Control Yes
Mounting Type Surface Mount
Supplier Device Package 144-LQFP (20x20)
Voltage - Supply 3.3V, 5V
Data Rate (Max) 6.25Mbps
Product Description

The XR17D1581 (D158) is an octal PCI Bus Universal Asynchronous Receiver and Transmitter (UART) with support for PCI Bus universal VIO buffers. Designed to meet 32-bit PCI Bus and high bandwidth requirements in communication systems, it features:

  • High Performance Octal PCI UART with universal PCI Bus buffers
  • 32-bit PCI Bus 2.3 Target Signalling Compliance
  • Global Interrupt Source Register for all 8 UARTs
  • Each UART independently controlled with 16C550 compatible register set
  • 64-byte Transmit and Receive FIFOs with programmable trigger levels
  • Automatic RTS/CTS or DTR/DSR Flow Control
  • Automatic Xon/Xoff Software Flow Control
  • RS485 HDX Control Output with selectable turn-around delay
  • Infrared (IrDA 1.0) Data Encoder/Decoder
  • Programmable Data Rate with prescaler (up to 6.25 Mbps)
  • Eight Multi-Purpose Inputs/Outputs
  • General Purpose 16-bit Timer/Counter
Applications
  • Universal Form Factor PCI Bus Add-in Card
  • Remote Access Servers
  • Network Management
  • Factory Automation and Process Control
  • Point-of-Sale Systems
  • Multi-port RS-232/RS-422/RS-485 Cards
Product Images

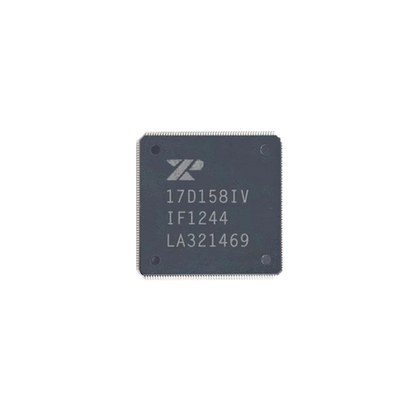

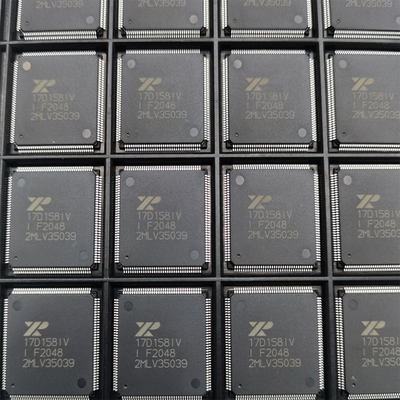

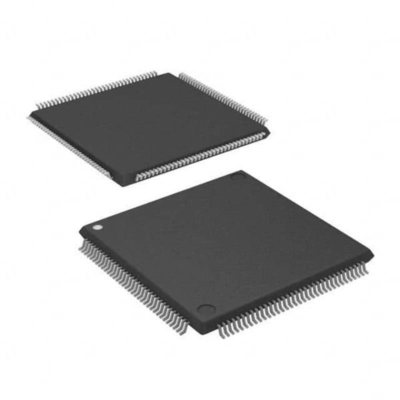

Eight Channel BUS PCI UART 32 Bit FIFO Interface Integrated Circuit 144LQFP XR17D158IV-F 0 Eight Channel BUS PCI UART 32 Bit FIFO Interface Integrated Circuit 144LQFP XR17D158IV-F 1 Eight Channel BUS PCI UART 32 Bit FIFO Interface Integrated Circuit 144LQFP XR17D158IV-F 2
Packaging Information

Standard export packaging available. Customers can choose from:

  • Cartons
  • Wooden cases
  • Wooden pallets
Frequently Asked Questions
How to obtain the price?

We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly via email or other available methods.

What is your delivery time?

Delivery time depends on order quantity and season. Small batches typically ship within 7-15 days, while large orders may require approximately 30 days.

What are your payment terms?

Factory pricing with 30% deposit required, balance (70%) paid via T/T before shipment.

What are the shipping options?

Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm preferred shipping method before ordering.
