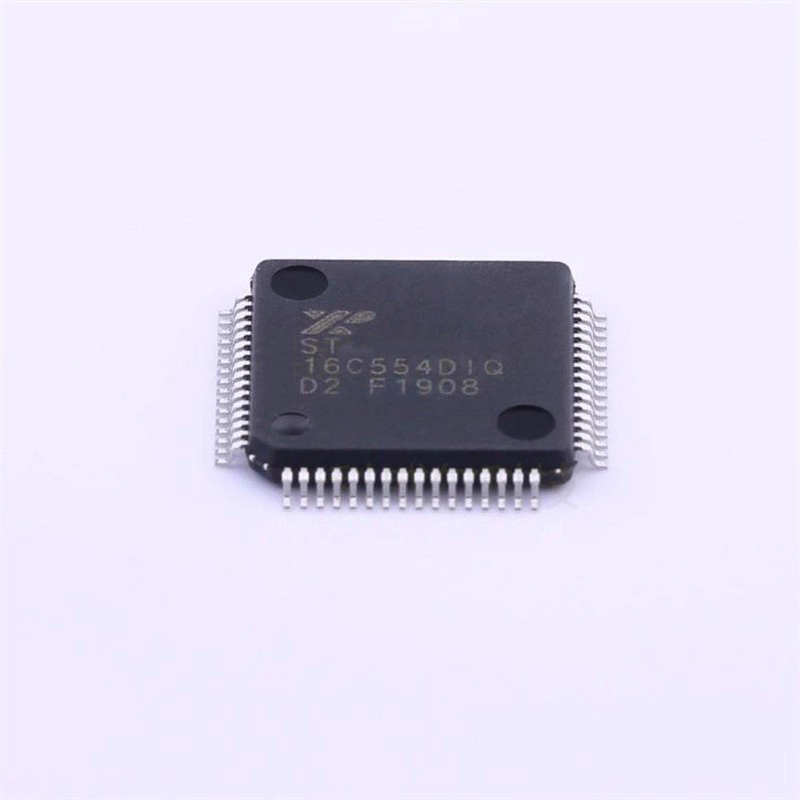

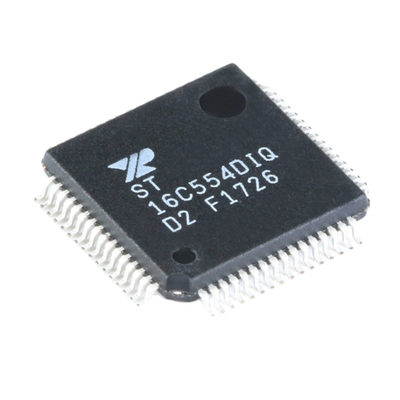

Four Channel UART IC 16 Byte 2.97V To 5.5V ST16C554DIQ64-F

The ST16C554, ST16C554D and ST68C554 are quad Universal Asynchronous Receivers and Transmitters (UARTs) with 16 bytes of transmit and receive FIFOs, selectable receive FIFO trigger levels, and data rates of up to 1.5Mbps.

• Pin-to-pin compatible with industry standard ST16C454, ST68C454, ST68C554, TI's TL16C554A and Philips' SC16C554B
• Intel or Motorola data bus interface select
• Four independent UART channels with register set compatible to 16C550
• Data rates of up to 1.5Mbps at 5V and 500kbps at 3.3V
• 16 byte transmit and receive FIFO with error tags
• 4 selectable RX FIFO trigger levels
• Full modem interface
• 2.97V to 5.5V supply operation
• Crystal oscillator or external clock input

• Portable appliances
• Telecommunication network routers
• Ethernet network routers
• Cellular data devices
• Factory automation and process controls

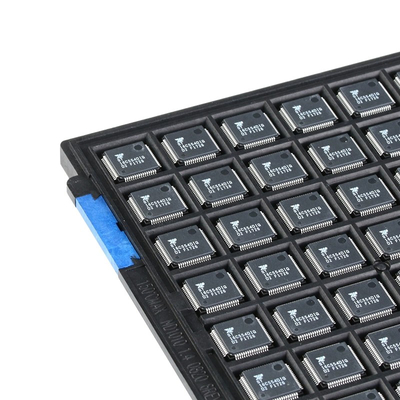

Standard export packaging available. Customers can choose from cartons, wooden cases and wooden pallets according to their requirements.
