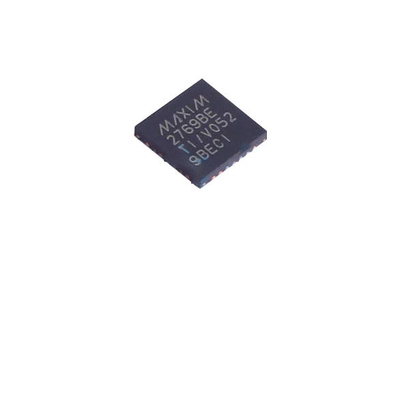

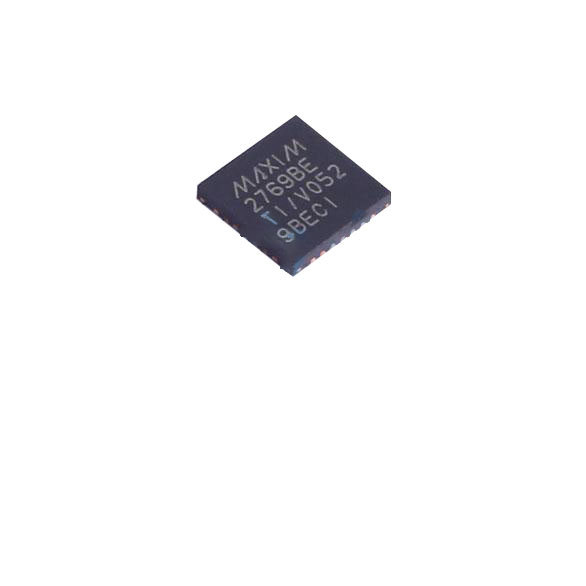

GLONASS 32MHz GPS Positioning Module RF Receiver Automotive Grade MAX2769BETI/V+T

The MAX2769B is a next-generation Global Navigation Satellite System (GNSS) receiver covering GPS, GLONASS, Galileo, and Compass navigation satellite systems on a single chip. This single-conversion GNSS receiver is designed to provide high performance for industrial and automotive applications.

Designed on Maxim's advanced, low-power SiGe BiCMOS process technology, the MAX2769B offers the highest performance and integration at a low cost. The receiver features a complete receiver chain including dual-input LNA and mixer, image-rejected filter, PGA, VCO, fractional-N frequency synthesizer, crystal oscillator, and multibit ADC with a total cascaded noise figure as low as 1.4dB.

• AEC-Q100 Automotive Qualified
• Supports GPS/GLONASS/Galileo/Compass Systems
• 40pF Output Clock Drive Capability
• No External IF SAW or Discrete Filters Required
• Programmable IF Frequency
• Fractional-N Synthesizer with Integrated VCO
• Dual-Input Uncommitted LNA for Separate Passive and Active Antenna Inputs
• 1.4dB Cascade Noise Figure
• Integrated Crystal Oscillator and Active Antenna Sensor

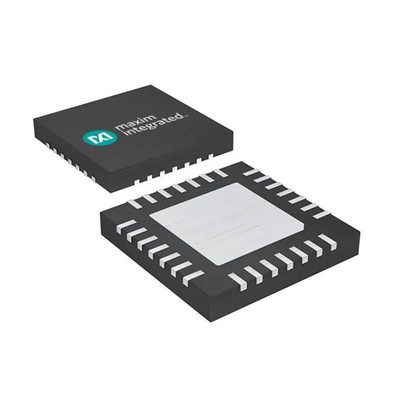

• Small, 28-Pin, RoHS-Compliant, Thin QFN Package (5mm x 5mm)

• Automotive Navigation Systems
• Location-Enabled Mobile Handsets
• Personal Navigation Devices (PNDs)
• Telematics (Asset Tracking, Inventory Management)
• Marine/Avionics Navigation
• Software GPS
• Laptops and Netbooks

Standard export packaging available. Customers can choose from cartons, wooden cases and wooden pallets according to their requirements.
