GNSS Positioning Navigation GPS Module 165dBm RW12-A2 For Ships

Description
Sensitivity: Tracking And Navigation -165dBm Re-capture: 159 DBM
Cold Start: 149dBm Horizontal Accuracy: 2M
Baud Rate: 4800bps To 921600bps Update Frequency: 1Hz To 10Hz
Highlight:

GNSS GPS Module

,

navigation module 165dBm For Ships

,

RW12-A2

GNSS Navigation And Positioning Module RW12-A2
A GNSS Navigation And Positioning Module With Ultra-high Sensitivity Of 165dBm For Unmanned Aerial Vehicle And Vehicle And Ship Models RW12-A2
Ultra-high Sensitivity of 165dBm for UAV, Vehicle and Ship Models
Key Attributes
Attribute Value
Chip Kernel CC1167Q
Sensitivity Tracking and navigation -165dBm
Re-capture 159 DBM
Cold start 149dBm
Horizontal accuracy 2M
Baud rate 4800bps to 921600bps
Update frequency 1Hz to 10Hz
Product Overview

The RW12-A2 series GNSS navigation module is a brand-new generation of products specially designed by Ruijie Company for unmanned aerial vehicle model aircraft. This product supports a high-performance multi-system three-mode positioning module, including BDS, GPS, GLONASS, and Galileo global navigation satellite systems such as QZSS and SBAS.

The product features high sensitivity, ultra-low power consumption and small size, and is easy to integrate with unmanned aerial vehicles, LBS, PND and vehicle navigation systems and other equipment.

Product Features
  • Ultra-high sensitivity -165dBm
  • Small size makes integration easy
  • Built-in high-gain low-noise amplifier
  • An update frequency of up to 10Hz
  • Supports the NMEA-0183 and UBX protocols
  • RF metal shielding cover to achieve optimal performance in noisy environments
  • On-board QMC6309 or QMC5883P geomagnetic sensor (optional) defaults to QMC6309

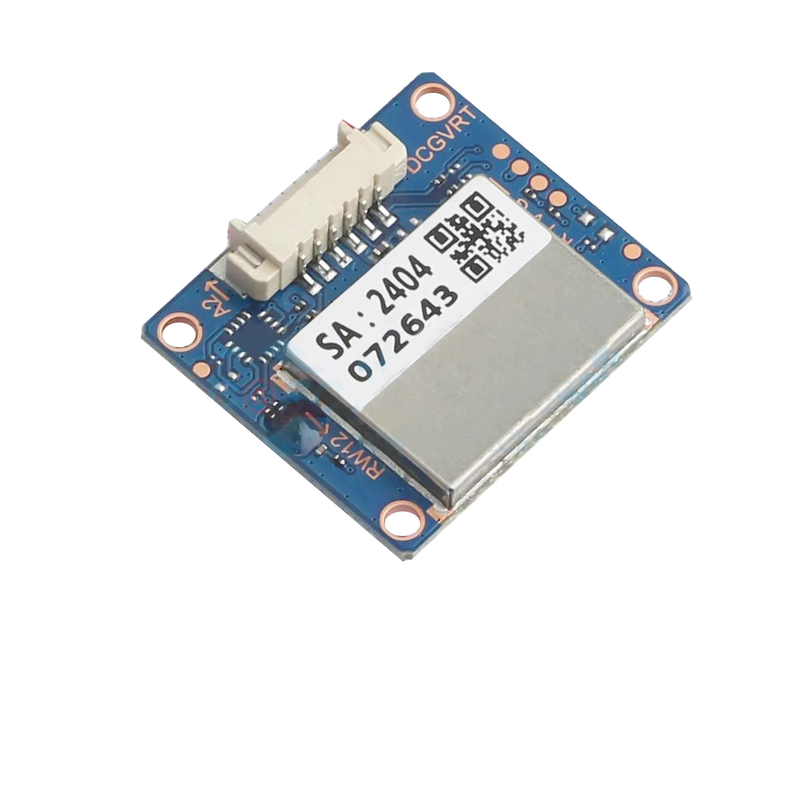

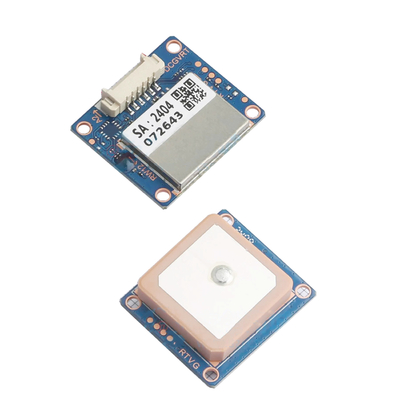

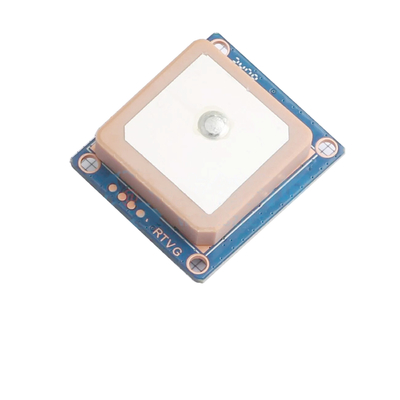

Product Appearance
Application Fields
  • Unmanned aerial vehicles and vehicle and ship models
  • Vehicle positioning monitoring
Mechanical Specifications
  • Dimensions: 24.4×21.6×7.1mm (±0.5mm tolerance) when installing 4mm thick antenna
  • Output port: 1.25×6P female socket
  • Weight: Approximately 7.7g
Packaging and Transportation

Standard export packaging. Customers can choose from cartons, wooden cases and wooden pallets according to their own requirements.
