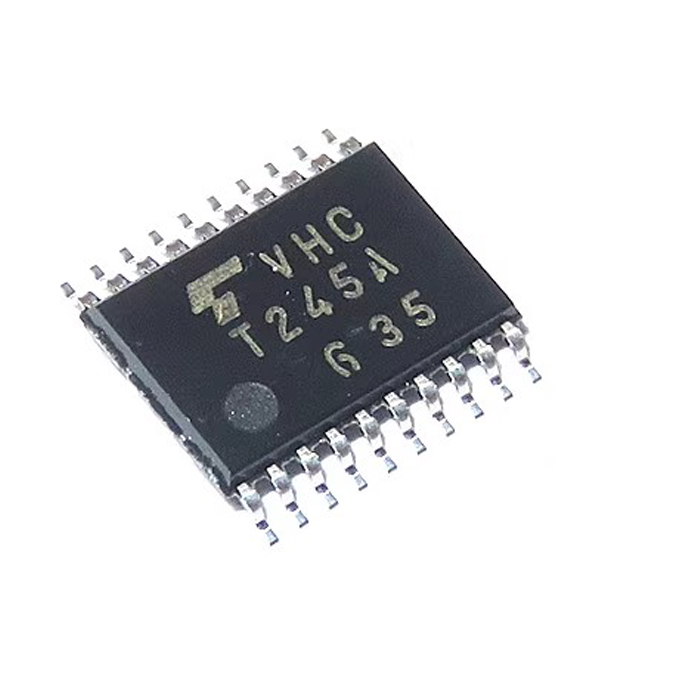

High speed UART IC 8bit Bus Transceiver For Asynchronous Communication 74VHCT245AFT(BJ)

The 74VHCT245AFT is an advanced high speed CMOS OCTAL BUS TRANSCEIVER fabricated with silicon gate C2MOS technology. It achieves the high speed operation similar to equivalent Bipolar Schottky TTL while maintaining the CMOS low power dissipation.

It is intended for two-way asynchronous communication between data busses. The direction of data transmission is determined by the level of the DIR input. The enable input (G) can be used to disable the device so that the busses are effectively isolated.

• AEC-Q100 (Rev. H) compliant
• Wide operating temperature: -40°C to 125°C
• High speed: Propagation delay time = 4.9 ns (typ.) at VCC = 5.0 V
• Quiescent supply current: ICC = 4.0 µA (max) at Ta = 25°C
• Compatible with TTL inputs
• Power-down protection on all inputs and outputs
• Balanced propagation delays
• Low noise: VOLP = 1.5 V (max)
• Pin and function compatible with the 74 series (74ACT/HCT/AHCT etc.) 245 type

According to the standard export packaging. Customers can choose from cartons, wooden cases and wooden pallets according to their own requirements.
