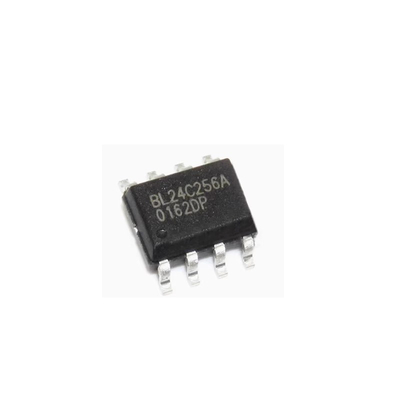

I2C Bidirectional Data Eeprom Memory Chip 256 Kbits BL24C256A-PARC

The BL24C256A provides 262144 bits of serial electrically erasable and programmable read-only memory (EEPROM), organized as 32768 words of 8 bits each. The device is optimized for use in many industrial and commercial applications where low-power and low-voltage operation are essential.

• Compatible with all I2C bidirectional data transfer protocol
• Memory array: 256 Kbits (32 Kbytes) of EEPROM
• Page size: 64 bytes with additional write lockable page
• Single supply voltage and high speed: 1 MHz
• Random and sequential Read modes
• Write operations: Byte Write within 3 ms, Page Write within 3 ms
• Partial Page Writes Allowed
• Write Protect Pin for Hardware Data Protection
• Schmitt Trigger, Filtered Inputs for Noise Suppression
• High-reliability: Endurance: 1 Million Write Cycles, Data Retention: 100 Years
• Enhanced ESD/Latch-up protection: HBM 8000V
• 8-lead PDIP/SOP/TSSOP/UDFN packages

The BL24C256A offers an additional page, named the Identification Page (64 bytes). The Identification Page can be used to store sensitive application parameters which can be (later) permanently locked in Read-only mode.

• DC Supply Voltage: -0.3V to +6.5V
• Input/Output Voltage: GND-0.3V to VCC+0.3V
• Operating Ambient Temperature: -40℃ to +85℃
• Storage Temperature: -65℃ to +150℃
• Electrostatic pulse (Human Body model): 8000V

According to the standard export packaging. Customers can choose from cartons, wooden cases and wooden pallets according to their own requirements.
