ICE40 UltraPlus CPLD PLD Family Field Programmable Gate Array ICE40UP5K-SG48I

Large Image : ICE40 UltraPlus CPLD PLD Family Field Programmable Gate Array ICE40UP5K-SG48I

Product Details:

Place of Origin:	CN
Brand Name:	LATTICE
Certification:	ROHS
Model Number:	ICE40UP5K-SG48I
Document:	C2889329_82E663D90B49CAF538...F7.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	CONSULT WITH
Packaging Details:	T/R
Delivery Time:	5-8DAY
Payment Terms:	Western Union,T/T
Supply Ability:	10000

Contact Now Chat Now

ICE40 UltraPlus CPLD PLD Family Field Programmable Gate Array ICE40UP5K-SG48I

Description

Series::	ICE40UP	Product Category::	FPGA - Field Programmable Gate Array
Number Of I/Os::	39 I/O	Package / Case::	QFN-48
Tradename::	UltraPlus	Total Memory::	1024 Kbit
Number Of Logic Array Blocks - LABs::	660 LAB	Moisture Sensitive::	Yes
Highlight:	ICE40 CPLD PLD , UltraPlus CPLD PLD , ICE40UP5K-SG48I

CPLD FPGA ICE40 UltraPlus Family Field Programmable Gate Array ICE40UP5K-SG48I

Product Specifications

Series	iCE40UP
Product Category	FPGA - Field Programmable Gate Array
Number of I/Os	39 I/O
Package / Case	QFN-48
Tradename	UltraPlus
Total Memory	1024 kbit
Number of Logic Array Blocks - LABs	660 LAB
Moisture Sensitive	Yes

Product Description

The iCE40 UltraPlus™ family from Lattice Semiconductor is an ultra-low power FPGA and sensor manager designed for ultra-low power mobile applications, such as smartphones, tablets and hand-held devices.

iCE40 UltraPlus is compatible with Lattice's iCE40 Ultra family devices, containing all the functions iCE40 Ultra family has except the high current IR LED driver. In addition, the iCE40 UltraPlus features an additional 1 Mb SRAM, additional DSP blocks, with additional LUTs, all which can be used to support an always-on Voice Recognition function in mobile devices, without the need to keep the higher power consuming voice codec on all the time.

The iCE40 UltraPlus family includes integrated SPI and I2C blocks to interface with virtually all mobile sensors and application processors. In addition, the iCE40 UltraPlus family also features two I/O pins that can support the interface to I3C devices.

Key Features

Flexible Logic Architecture
Two devices with 2800 to 5280 LUTs
Offered in WLCS and QFN packages
Ultra-low Power Devices
Advanced 40 nm low power process
As low as 100 µA standby current typical
Embedded Memory
Up to 1024 kb Single Port SRAM
Up to 120 kb sysMEM™ Embedded Block RAM
Two Hardened I2C Interfaces
Two I/O pins to support I3C interface
Two Hardened SPI Interfaces
Two On-Chip Oscillators
Low Frequency Oscillator - 10 kHz
High Frequency Oscillator - 48 MHz
24 mA Current Drive RGB LED Outputs
Three drive outputs in each device
User selectable sink current up to 24 mA
On-chip DSP

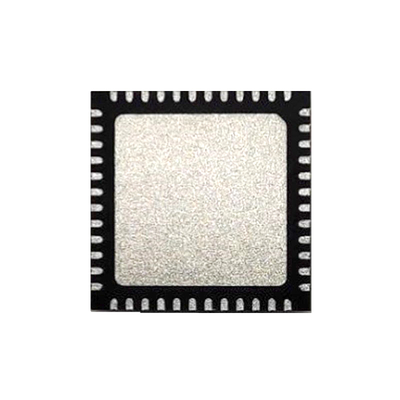

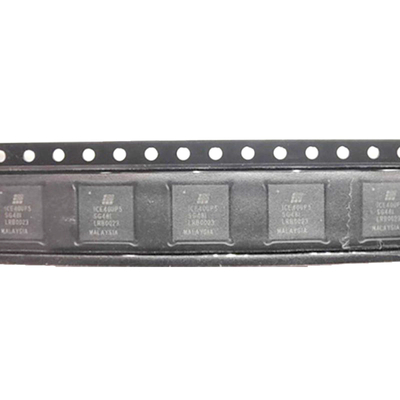

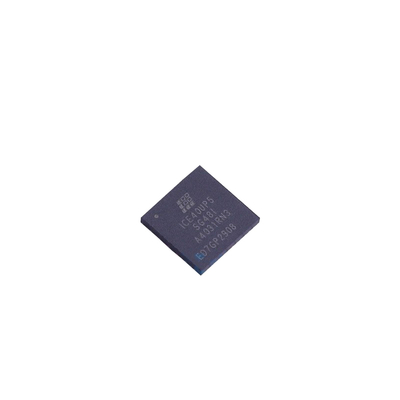

Product Images

Packaging and Transportation

According to the standard export packaging. Customers can choose from cartons, wooden cases and wooden pallets according to their own requirements.

Frequently Asked Questions

1. How to obtain the price?

We usually quote within 24 hours after receiving your inquiry (except weekends and holidays). If you are in urgent need of a price, please send us an email or contact us in any other way so that we can provide you with a quotation.

2. What is your delivery time?

This depends on the quantity of the order and the season in which you place the order. Usually, we can ship the goods within 7 to 15 days (for small batches), and for large batches, it takes about 30 days.

3. What are your payment terms?

Factory price, 30% deposit, 70%T/T payment before shipment.

4. What is the mode of transportation?

It can be transported by sea, air or express delivery (EMS, UPS, DHL, TNT, FEDEX, etc.). Please confirm with us before placing an order.
