PBGA484 4PLLs FPGA Field Programmable Gate Array GW2A-LV55PG484C8/I7

I'm Online Chat Now

PBGA484 4PLLs FPGA Field Programmable Gate Array GW2A-LV55PG484C8/I7

PBGA484 4PLLs FPGA Field Programmable Gate Array GW2A-LV55PG484C8/I7
PBGA484 4PLLs FPGA Field Programmable Gate Array GW2A-LV55PG484C8/I7 PBGA484 4PLLs FPGA Field Programmable Gate Array GW2A-LV55PG484C8/I7 PBGA484 4PLLs FPGA Field Programmable Gate Array GW2A-LV55PG484C8/I7

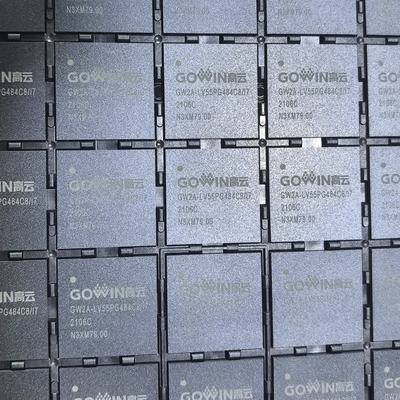

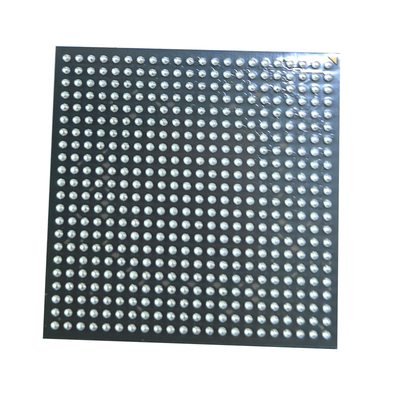

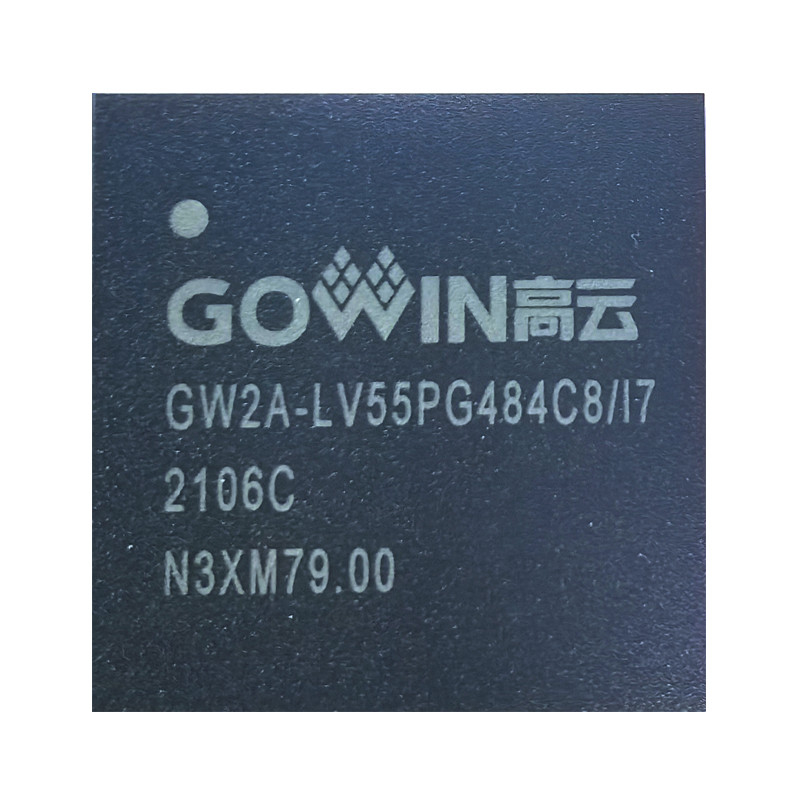

Large Image :  PBGA484 4PLLs FPGA Field Programmable Gate Array GW2A-LV55PG484C8/I7

Product Details:
Place of Origin: CN
Brand Name: GOWIN
Certification: ROSH
Model Number: GW2A-LV55PG484C8/I7
Document: DS102-2.7.6_GW2AFPGA.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: consult with
Packaging Details: T/R
Delivery Time: 5-8DAY
Payment Terms: T/T,Western Union
Supply Ability: 1000
Contact Now Chat Now

PBGA484 4PLLs FPGA Field Programmable Gate Array GW2A-LV55PG484C8/I7

Description
(LUT4): 20,736 (FF): 15,552
SSRAM(bits): 40K BSRAM(bits): 828K
BSRAM: 46 (18x18 Multiplier): 48
(PLLs): 4 I/O Bank : 8
Highlight:

PBGA484 FPGA Field Programmable Gate Array

,

4PLLs FPGA Field Programmable Gate Array

,

GW2A-LV55PG484C8/I7

Programmable Logic Device PBGA484 Single-chip Microcomputer GW2A-LV55PG484C8/I7
Key Specifications
Attribute Value
LUT4 20,736
FF 15,552
SSRAM (bits) 40K
BSRAM (bits) 828K
BSRAM 46
18x18 Multiplier 48
PLLs 4
I/O Bank 8
Product Overview

The GW2A FPGA from Goyun Semiconductor belongs to the Chenxi family Series 2, offering rich internal resources including high-performance DSP capabilities, high-speed LVDS interfaces, and abundant BSRAM memory. Built on a 55nm process, this FPGA is optimized for high-speed, low-cost applications.

Key Features
  • Low Power Consumption: 55nm SRAM process with 1.0V core voltage
  • Flexible I/O Options: Supports multiple standards including LVCMOS, LVTTL, SSTL, HSTL, PCI, LVDS, RSDS
  • MIPI Support: Compatible with MIPI D-PHY RX/TX, CSI-2 and DSI interfaces (up to 1.2Gbps per channel)
  • High-Performance DSP: Supports 9×9, 18×18, 36×36-bit multiplication with 54-bit accumulator
  • Memory Resources: 4-input LUTs with shift register and distributed memory capabilities
  • Clock Management: 4 PLLs for clock multiplication, division and phase shifting
  • Configuration Options: Supports JTAG and 4 GowinCONFIG modes (SSPI, MSPI, CPU, SERIAL)
Model Comparison
Specification GW2A-18 GW2A-55
LUT4 20,736 54,720
FF 15,552 41,040
SSRAM (bits) 40K 106K
BSRAM (bits) 828K 2,520K
BSRAM 46 140
18x18 Multiplier 48 40
PLLs 4 6
I/O Bank 8 8
GPIO 384 608
PBGA484 4PLLs FPGA Field Programmable Gate Array GW2A-LV55PG484C8/I7 0 PBGA484 4PLLs FPGA Field Programmable Gate Array GW2A-LV55PG484C8/I7 1 PBGA484 4PLLs FPGA Field Programmable Gate Array GW2A-LV55PG484C8/I7 2
Packaging & Shipping

Standard export packaging available. Customers can choose from cartons, wooden cases, or wooden pallets based on requirements.

Frequently Asked Questions
How to obtain the price?

We typically provide quotations within 24 hours of receiving inquiries (excluding weekends and holidays). For urgent requests, please contact us directly.

What is your delivery time?

Small batches typically ship within 7-15 days, while larger orders may require approximately 30 days depending on order volume and season.

What are your payment terms?

Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.

What are your shipping options?

Available shipping methods include sea, air, or express (EMS, UPS, DHL, TNT, FEDEX). Please confirm preferred method before ordering.

How do you maintain long-term customer relationships?

We prioritize quality and competitive pricing to ensure customer satisfaction, and value every business relationship with sincerity and professionalism.

Contact Details
Shenzhen Filetti Technology Co., LTD

Contact Person: Mr. Sun

Tel: 18824255380

Send your inquiry directly to us (0 / 3000)
