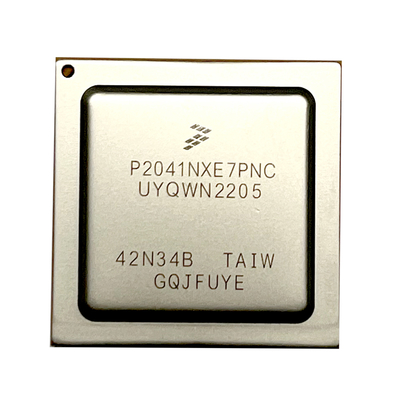

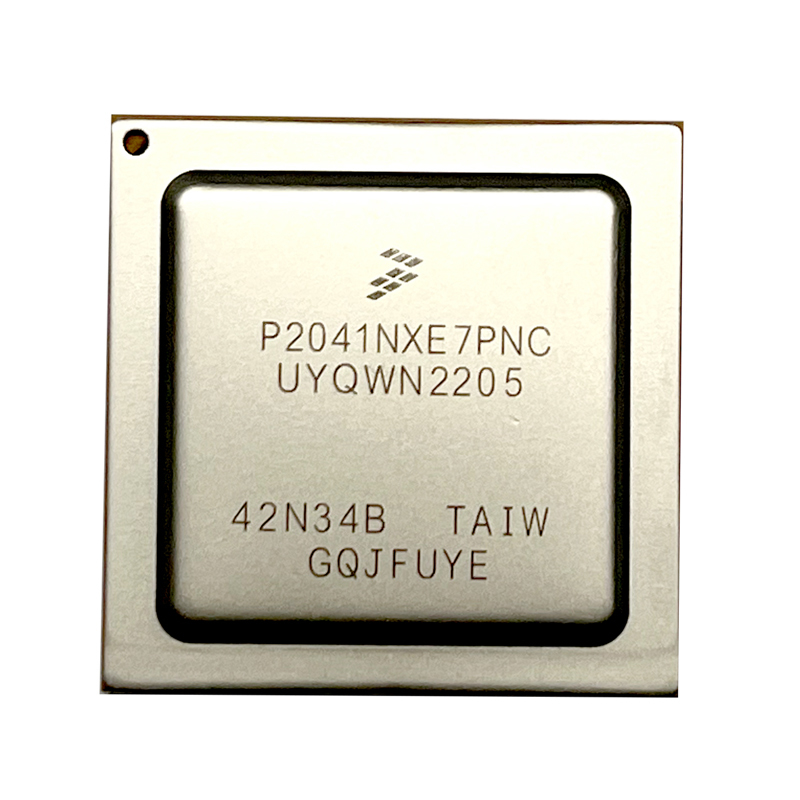

PBGA-780 Package 1.5W Communication Processor P2041NXE7PNC Dedicated Communication Chip

Large Image : PBGA-780 Package 1.5W Communication Processor P2041NXE7PNC Dedicated Communication Chip

Product Details:

Place of Origin:	TAIWAN
Brand Name:	Freescale
Model Number:	P2041NXE7PNC
Document:	P2041NXE1MMB.PDF

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	CONSULT WITH
Packaging Details:	T/R
Delivery Time:	5-8DAY
Payment Terms:	T/T,Western Union
Supply Ability:	1000

Contact Now Chat Now

PBGA-780 Package 1.5W Communication Processor P2041NXE7PNC Dedicated Communication Chip

Description

Package Type:	Flip-chip, Wire-bond, Or Flip-chip BGA	Dsp Slices:	Up To 3,840
Power Consumption:	1.5W To 100W	Interface Protocols:	PCI Express, Ethernet, USB, Etc.
Logic Elements:	Up To 1,952,000	Design Tools:	Vivado Design Suite
Security Features:	AES And SHA-256 Encryption, Secure Boot, Etc.	Manufacturer:	Xilinx
Operating Temperature:	-40°C To 100°C	Application:	Embedded Systems
Block Ram:	Up To 68 Mb	Configuration Memory:	Up To 8 Mb
I/O Pins:	Up To 1,200	Clock Management:	Up To 1,200 MHz
Highlight:	PBGA-780 communication processor , 1.5W communication processor , P2041NXE7PNC

Communication Processor PBGA-780 Package P2041NXE7PNC Dedicated Communication Chip

Product Specifications

Attribute	Value
Package Type	Flip-chip, wire-bond, or flip-chip BGA
Dsp Slices	Up to 3,840
Power Consumption	1.5W to 100W
Interface Protocols	PCI Express, Ethernet, USB, etc.
Logic Elements	Up to 1,952,000
Design Tools	Vivado Design Suite
Security Features	AES and SHA-256 encryption, secure boot, etc.
Manufacturer	Xilinx
Operating Temperature	-40°C to 100°C
Application	Embedded Systems
Block Ram	Up to 68 Mb
Configuration Memory	Up to 8 Mb
I/O Pins	Up to 1,200
Clock Management	Up to 1,200 MHz

Product Overview

The Communication Processor PBGA-780 Package P2041NXE7PNC is a dedicated communication chip supporting serial rapid I/O (V1.3 + 2.1) for higher bandwidth. It features a message manager to support Type 9 (data streaming) and improved Type 11 (message) transactions.

The P5 and P3 series along with P204x support integrated Serial ATA (SATA) 2.0, PCI-E Gen 2 controllers, 10 Gigabit Ethernet, 1 Gigabit Ethernet (supporting 1.0 and 2.5 Gb/s SGMII), and two USB 2.0 integrated PHYs. This creates a highly integrated, high-performance processor ideal for network, industrial, and data center applications.

The QorIQ P2041 and P2040 processors are similar to P3041 but offer lower cost with optimized power, performance, and functionality. These devices are pin-compatible.

Key Features

Four high-performance cores: Supports flexible resource allocation to control and data planes, with powerful AMP implementation up to 1.5 GHz for high-performance control plane
High-performance acceleration: DPAA offloads CPU to handle upper-layer functions
Trust architecture: Establishes trust for secure systems and prevents unauthorized code execution
Flexible SerDes configuration: Multiple options for PCIe, SGMII, 2.5 Gb/s multiplexed SGMII, XAUI, SRIO, SATA
Serial RapidIO improvements: Supports up to 5 GHz for high control and data throughput
Dual SATA interfaces: Saves board costs through integrated high-capacity hard disk storage interfaces

P2040/P2041, P3041 Main Features and Benefits

64-bit e5500 core: Supports up to 64GB address space and CPU frequencies up to 2.4 GHz
Application-specific accelerators: DPAA offloads core execution of common packet processing tasks
Smart integration: Integrated memory controllers and high-speed interconnects (XAUI, SGMII, PCI Express, SATA, Aurora)
Hardware virtualization: Enables secure and autonomous operation of multiple OS instances
Trusted boot: Ensures system starts executing from trusted code
Scalable processor family: Pin-compatible packages allow seamless scaling from single-core to quad-core devices

Packaging and Transportation

Standard export packaging is provided. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.

Frequently Asked Questions

1. How to obtain the price?

We usually quote within 24 hours after receiving your inquiry (except weekends and holidays). For urgent pricing requests, please contact us directly via email or other methods.

2. What is your delivery time?

Delivery time depends on order quantity and season. Typically, we can ship small batches within 7-15 days, while large batches take about 30 days.

3. What are your payment terms?

Factory price, 30% deposit, 70% T/T payment before shipment.

4. What is the mode of transportation?

Available by sea, air, or express (EMS, UPS, DHL, TNT, FEDEX, etc.). Please confirm with us before ordering.

5. How do you help our business establish a long-term relationship?

We maintain excellent quality and competitive pricing to ensure customer benefits. We treat every customer as a friend, conducting business sincerely regardless of origin.
