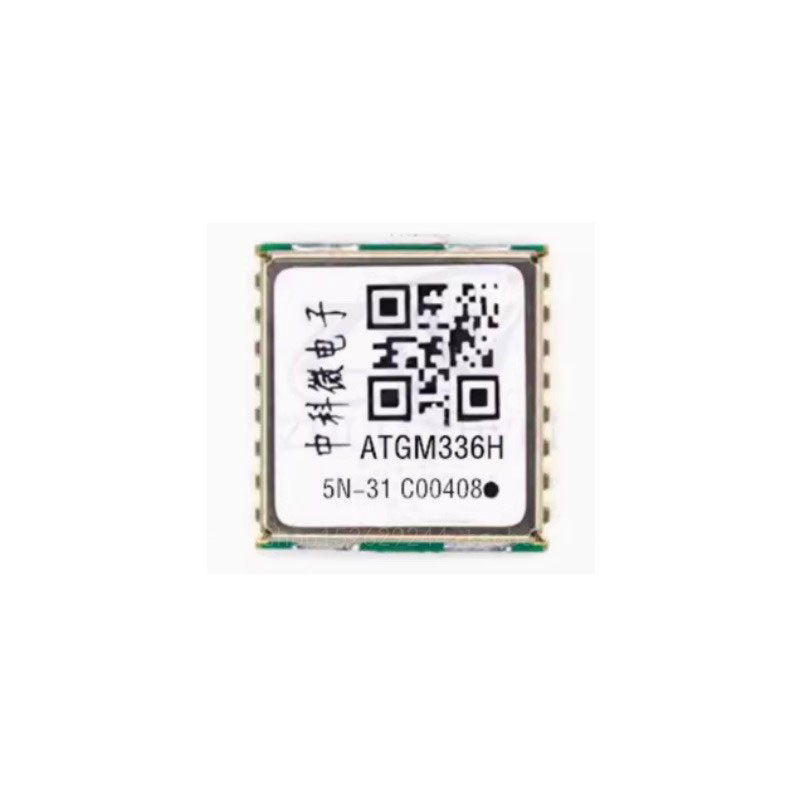

Satellite Positioning GNSS GPS Receiver Modules Module GPS+BDS ATGM336H-5N31

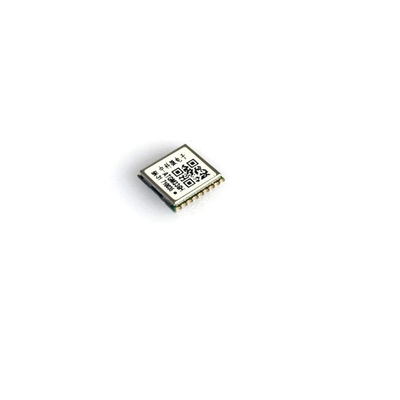

The ATGM336H-5N series modules are high-performance BDS/GNSS all-constellation positioning and navigation modules measuring 9.7×10.1 mm. Based on Zhongke Wei's fourth-generation low-power GNSS SOC single-chip AT6558, these modules support multiple satellite navigation systems including:

• China's BDS (Beidou Navigation Satellite System)
• United States' GPS
• Russia's GLONASS
• European Union's GALILEO
• Japan's QZSS
• Satellite augmentation systems SBAS (WAAS, EGNOS, GAGAN, MSAS)

The AT6558 is a true six-in-one multi-mode satellite navigation and positioning chip with 32 tracking channels, capable of simultaneously receiving GNSS signals from six satellite navigation systems for joint positioning, navigation and timing.

• High sensitivity, low power consumption, and low cost
• Supports single-system and multi-system joint positioning
• Supports QZSS and SBAS systems
• Supports A-GNSS
• Cold start capture sensitivity: -148 dBm
• Tracking sensitivity: -162 dBm
• Positioning accuracy: 2.5 meters (CEP50)
• First positioning time: 32 seconds
• Low power consumption: continuous operation <25mA (@3.3V)
• Built-in antenna detection and antenna short-circuit protection

• Vehicle positioning and navigation
• Mobile phones and tablet computers
• Handheld devices
• Embedded positioning devices
• Wearable devices

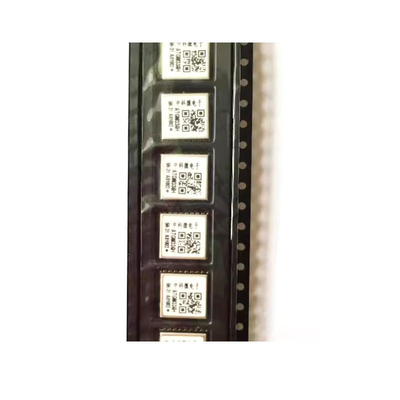

Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.
