Satellite System GPS Module Navigation GNSS Module A58 GPS Beidou Positioning L76KB-A58

Large Image : Satellite System GPS Module Navigation GNSS Module A58 GPS Beidou Positioning L76KB-A58

Product Details:

Place of Origin:	CN
Brand Name:	Quectel
Certification:	ROHS
Model Number:	L76KB-A58
Document:	9771FC8BF3F20F9B7B64F4D096D...70.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	CONSULT WITH
Packaging Details:	T/R
Delivery Time:	5-8DAY
Payment Terms:	Western Union,T/T
Supply Ability:	1000

Contact Now Chat Now

Satellite System GPS Module Navigation GNSS Module A58 GPS Beidou Positioning L76KB-A58

Description

VCC:	3.6	RTC:	3.6
Digital Signal Input Voltage:	VCC + 0.3	RF_IN:	15 DBm
Storage Temperature:	-40 ~90 °C	IVCC:	VCC = 3.3 V
Passive Antenna Frequency Range:	1559-1609 MHz
Highlight:	satellite System GPS Module , Beidou Positioning GNSS Module , L76KB-A58

Multi-satellite System Navigation L26K Module A58 Supports GPS And Beidou Positioning GNSS Module L76KB-A58

Product Specifications

Attribute	Value
VCC	3.6
RTC	3.6
Digital signal input voltage	VCC + 0.3
RF_IN	15 dBm
Storage temperature	-40 ~90 °C
IVCC	VCC = 3.3 V
Passive antenna frequency range	1559-1609 MHz

Product Overview

The L76K module operates within a voltage range of 2.7 to 3.4 volts (typical 3.3V), supporting GPS, BeiDou, GLONASS and QZSS satellite navigation systems with AGNSS functionality. This high-performance module features:

Built-in low-noise amplifier (LNA) for high-sensitivity positioning
Rapid signal tracking and capture capabilities
Active antenna detection with short-circuit protection
Antenna status monitoring via NMEA statements

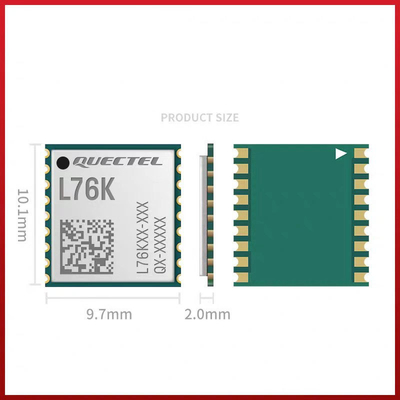

Compact surface mount design (10.1mm × 9.7mm × 2.0mm)
Compliance with EU RoHS standards

System Configuration

The L76K supports multiple satellite system combinations through configurable commands (non-volatile):

Single GPS mode
Single BeiDou mode
GPS + BeiDou dual mode (default)
Single GLONASS mode
GPS + GLONASS dual mode
BeiDou + GLONASS dual mode
GPS + BeiDou + GLONASS triple mode

Power Management

The module offers two low-power modes:

Standby Mode: Maintains I/O, POR and RTC functionality while conserving power
Backup Mode: Preserves RTC domain data for quick startup with minimal power consumption

Antenna Specifications

Frequency range: 1559-1609 MHz
Voltage standing wave ratio: < 2 (typical)
Polarization: Right-hand circular
Passive gain: > 0 dBi
Active antenna total gain: < 17 dB (typical)

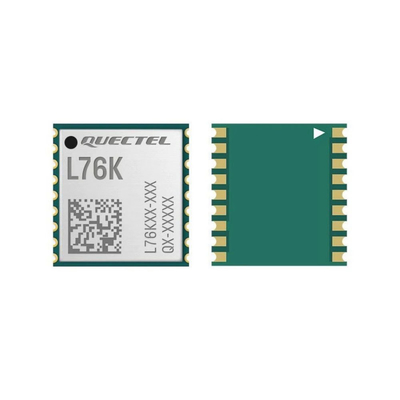

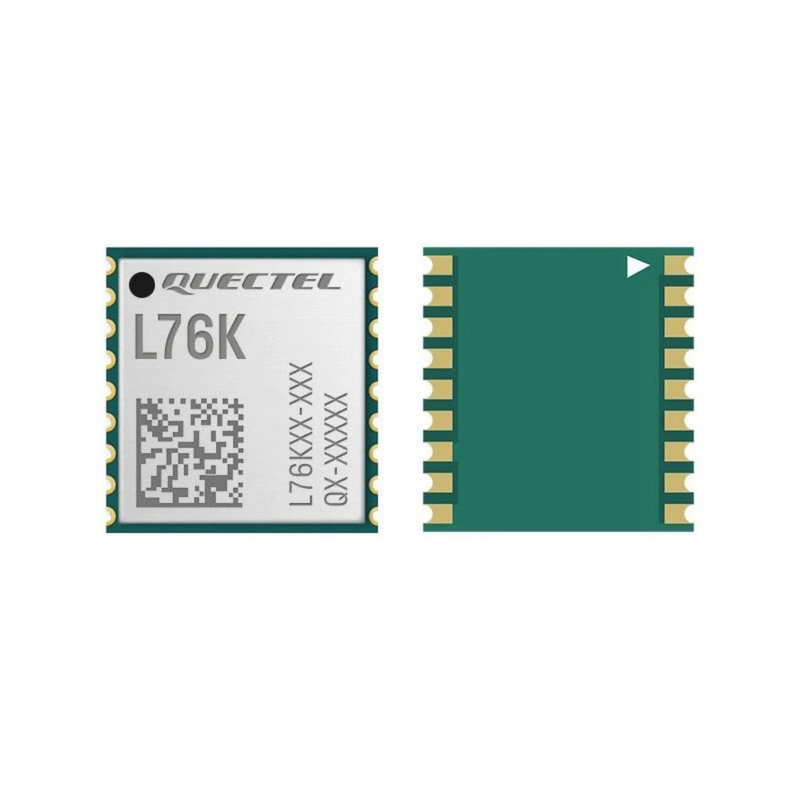

Product Images

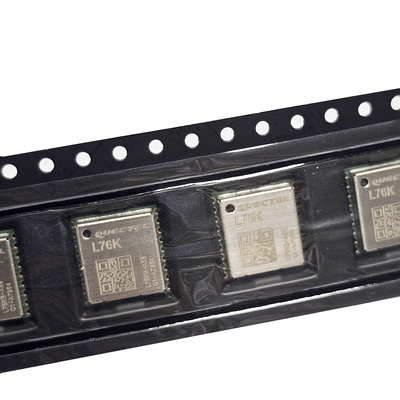

Packaging & Shipping

Standard export packaging available with options for cartons, wooden cases, and pallets based on customer requirements.

Frequently Asked Questions

How to obtain the price?

Quotations are typically provided within 24 hours of inquiry receipt (excluding weekends/holidays). Urgent requests can be expedited via direct contact.

What is your delivery time?

Small batches: 7-15 days. Large quantities: approximately 30 days. Lead times vary by order volume and season.

What are your payment terms?

Factory pricing with 30% deposit and 70% balance payment before shipment via T/T transfer.

What are the shipping options?

Available methods include sea freight, air cargo, and express services (DHL, UPS, FedEx, etc.). Confirm preferred method before ordering.

How do you maintain long-term business relationships?

We prioritize quality products at competitive prices while treating every customer with respect and sincerity to build lasting partnerships.
