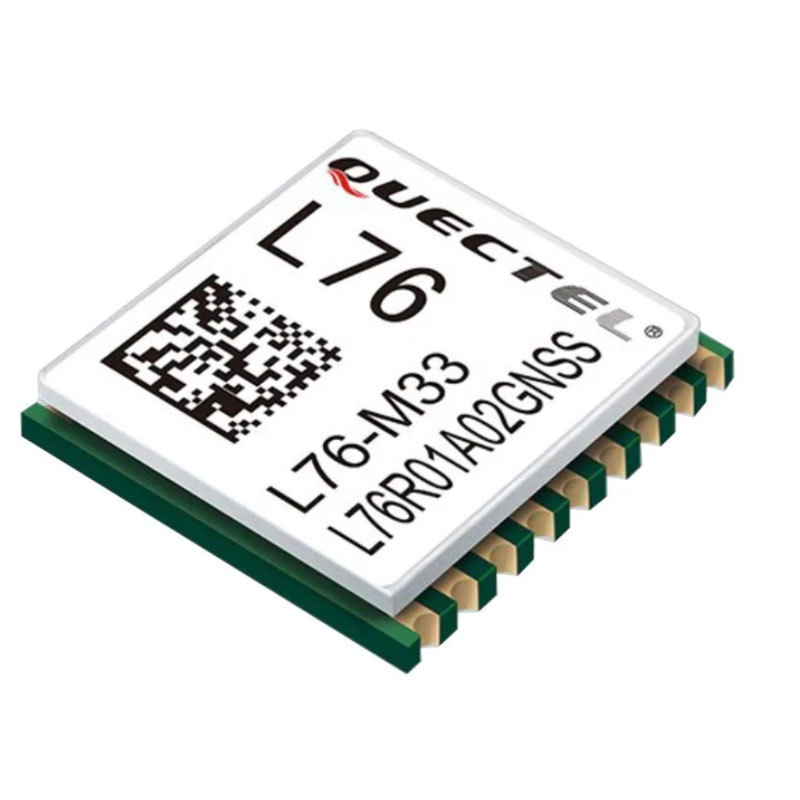

Single Band GPS Module GNSS Receiver Module RTC Compact L76-M33

Large Image : Single Band GPS Module GNSS Receiver Module RTC Compact L76-M33

Product Details:

Place of Origin:	CN
Brand Name:	Quectel
Certification:	ROHS
Model Number:	L76-M33
Document:	Quectel_L76_GNSS_Specificat...b8.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	CONSULT WITH

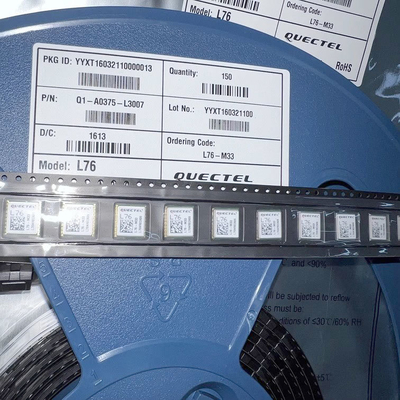

Packaging Details:	T/R
Delivery Time:	5-8DAY
Payment Terms:	T/T,Western Union
Supply Ability:	1000

Contact Now Chat Now

Single Band GPS Module GNSS Receiver Module RTC Compact L76-M33

Description

Manufacturer::	Quectel	Product Category::	GNSS / GPS Modules
Frequency::	1.57542 GHz	Time To First Fix - Cold Start::	35 S
Dimensions::	10.1 Mm X 9.7 Mm X 2.5 Mm	Moisture Sensitive::	Yes
Factory Pack Quantity::	500	Tradename::	Wireless Communication Module
Highlight:	Single Band GPS Module , RTC gnss receiver module , L76-M33

GNSS GPS Modules Single Band RTC Compact GNSS Module L76-M33

Product Specifications

Manufacturer	Quectel
Product Category	GNSS / GPS Modules
Frequency	1.57542 GHz
Time To First Fix - Cold Start	35 s
Dimensions	10.1 mm × 9.7 mm × 2.5 mm
Moisture Sensitive	Yes
Factory Pack Quantity	500

Product Overview

The L76-M33 is an extremely compact GNSS module featuring concurrent reception of multiple GNSS systems including GPS, GLONASS, BeiDou, Galileo and QZSS open service L1 signals. With 33 tracking channels, 99 acquisition channels, and 210 PRN channels, it delivers superior positioning performance in challenging environments.

Key Features

Multi-GNSS engine supporting GPS, GLONASS, BeiDou, Galileo and QZSS
Advanced EASY™ AGPS technology requiring no external memory
Ultra-low power consumption (18mA tracking current)
AlwaysLocate™ intelligent power saving algorithm
Embedded LOCUS logger solution with 16+ hours capacity
High sensitivity: -165dBm @Tracking, -148dBm @Acquisition
Anti-jamming with multi-tone active interference canceller
Supports balloon mode for high altitude applications (up to 80km)

Technical Specifications

Position Accuracy: <2.5m CEP (autonomous)
Velocity Accuracy: <0.1m/s
Timing Accuracy: 10ns (1PPS Out)
Operating Voltage: 2.8V to 4.3V
Interface: UART (4800bps~115200bps adjustable)
Temperature Range: -40°C to +85°C
Weight: Approx. 0.6g

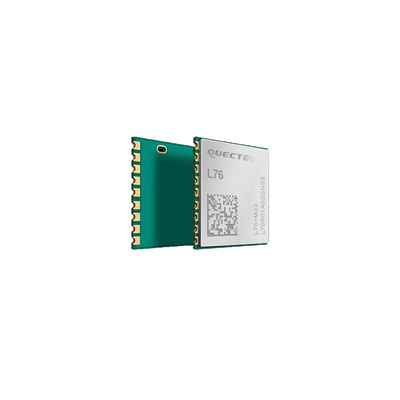

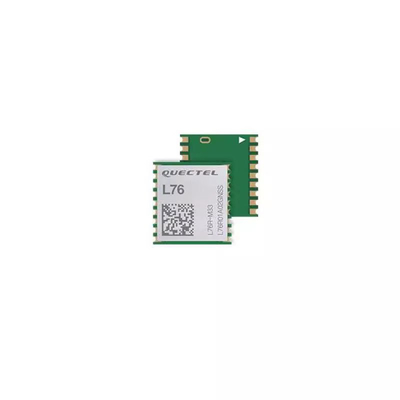

Product Images

Packaging & Shipping

Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.

Frequently Asked Questions

How to obtain the price?

We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.

What is your delivery time?

Delivery times vary based on order quantity and season. Small batches typically ship within 7-15 days, while large orders may require approximately 30 days.

What are your payment terms?

Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.

What are the shipping options?

We offer sea, air, and express shipping (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
