Single Chip UART IC 8 Channel PCI UART Interface XR17V358IB176-F

The XR17V3581 is a single chip 8-channel PCI Express (PCIe) UART (Universal Asynchronous Receiver and Transmitter), optimized for higher performance and lower power. The XR17V358 serves as a single lane PCIe bridge to 8 independent enhanced 16550 compatible UARTs.

The XR17V358 is compliant to PCIe 2.0 Gen 1 (2.5 GT/s). In addition to the UART channels, the XR17V358 has 16 multi-purpose I/Os (MPIOs), a 16-bit general purpose counter/timer and a global interrupt status register to optimize interrupt servicing.

Each UART of the XR17V358 has many enhanced features such as the 256-bytes TX and RX FIFOs, programmable Fractional Baud Rate Generator, Automatic Hardware or Software Flow Control, Auto RS-485 Half-Duplex Direction Control, programmable TX and RX FIFO Trigger Levels, TX and RX FIFO Level Counters, infrared mode, and data rates up to 31.25 Mbps.

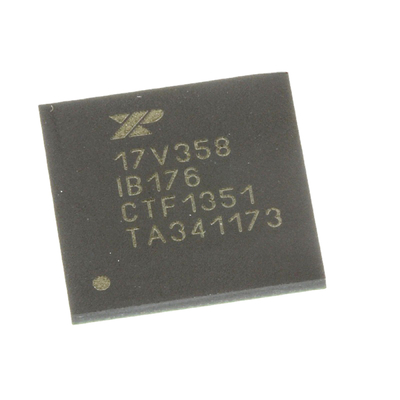

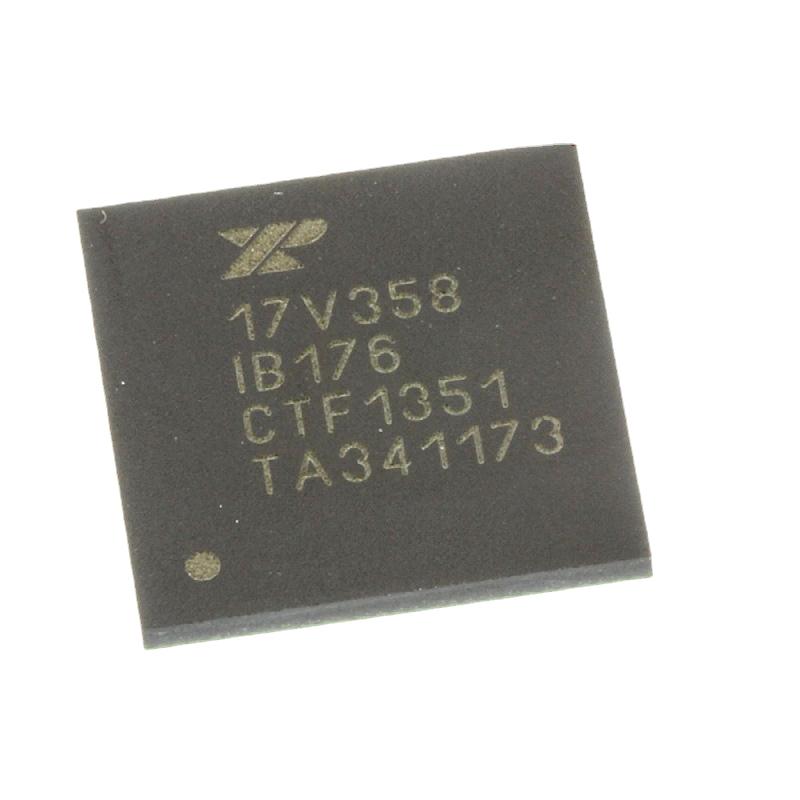

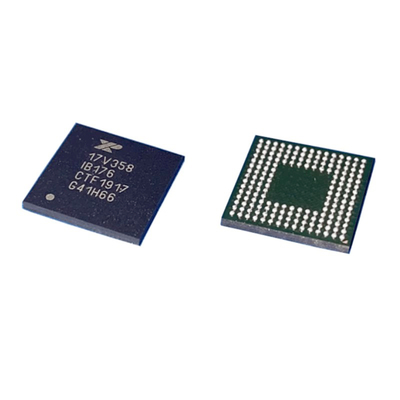

The XR17V358 is available in a 176-pin FPBGA package (13 x 13 mm).

NOTE: Covered by U.S. Patents #5,649,122, #6,754,839, #6,865,626 and #6,947,999

• Next generation Point-of-Sale Systems
• Remote Access Servers
• Storage Network Management
• Factory Automation and Process Control
• Multi-port RS-232/RS-422/RS-485 Cards

• Single 3.3V power supply
• Internal buck regulator for 1.2V core
• PCIe 2.0 Gen 1 compliant
• x1 Link, dual simplex, 2.5 Gbps in each direction
• Expansion bus interface
• EEPROM interface for configuration
• Global interrupt status register for all eight UARTs
• Up to 31.25 Mbps serial data rate
• 16 multi-purpose inputs/outputs (MPIOs)
• 16-bit general purpose timer/counter
• Sleep mode with wake-up Indicator
• Eight independent UART channels with 16550 compatible register Set
• 256-byte TX and RX FIFOs
• Programmable TX and RX Trigger Levels
• TX/RX FIFO Level Counters
• Fractional baud rate generator
• Automatic RTS/CTS or DTR/DSR hardware flow control with programmable hysteresis
• Automatic Xon/Xoff software flow control
• RS-485 half duplex direction control output with programmable turn-around delay
• Multi-drop with Auto Address Detection
• Infrared (IrDA 1.1) data encoder/decoder
• Software compatible to XR17C15x, XR17D15x, XR17V25x PCI UARTs
