Slim PCB Power Relay SPST 5A Power Relay G6DN-1A-SL Series

Description
Manufacturer:: Omron Product Category:: General Purpose Relays
Coil Voltage:: 5/12/24 VDC Relay Contact Form:: 1 Form A (SPST-NO)
Contact Current Rating:: 5 A Switching Voltage:: 250 VAC, 30 VDC
Series:: G6DN-SL Factory Pack Quantity:: 100
Highlight:

Slim PCB Power Relay

,

PCB Power Relay SPST

,

G6DN-1A-SL

General Purpose Relays Slim PCB Power Relay SPST 5A Power Relay G6DN-1A-SL Series
Product Specifications
Attribute Value
Manufacturer Omron
Product Category General Purpose Relays
Coil Voltage 5/12/24 VDC
Relay Contact Form 1 Form A (SPST-NO)
Contact Current Rating 5 A
Switching Voltage 250 VAC, 30 VDC
Series G6DN-SL
Factory Pack Quantity 100
Product Features
  • Slim 5-mm width and miniature size (20 × 5.08 × 12.5 mm)
  • High switching capability 5 A (250 VAC and 30 VDC), and high contact reliability by crossbar-twin contact
  • Low power consumption 110 mW
  • Meets application standards EN61010-1 and EN61010-2-201 for reinforced insulation (CTI 600 V min. and Rated insulation voltage 300 V)
  • Electrical durability 100 Kops (-L type)
  • Lineup of high temperature types with an ambient temperature of 105°C (-CF type)
Application Examples
  • Programmable Controller output
  • Temperature Controller
  • Building Automation
  • Output of control system
Approved Standards

The rated values approved by each of the safety standards may be different from the performance characteristics individually defined in this datasheet. UL/C-UL-approved models.

Mounting: When mounting a number of relays on a PCB in 90°C to 105°C, be sure to provide a minimum mounting space of 1.27 mm min.

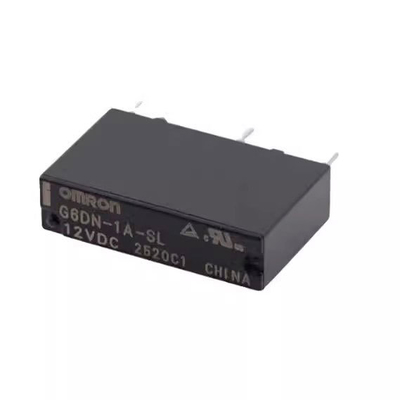

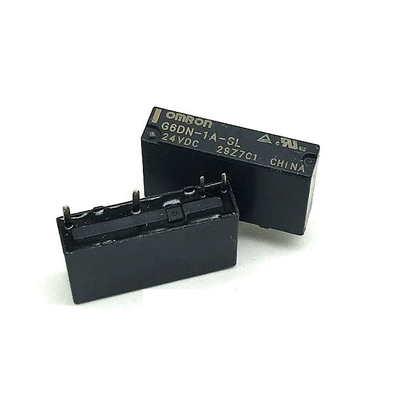

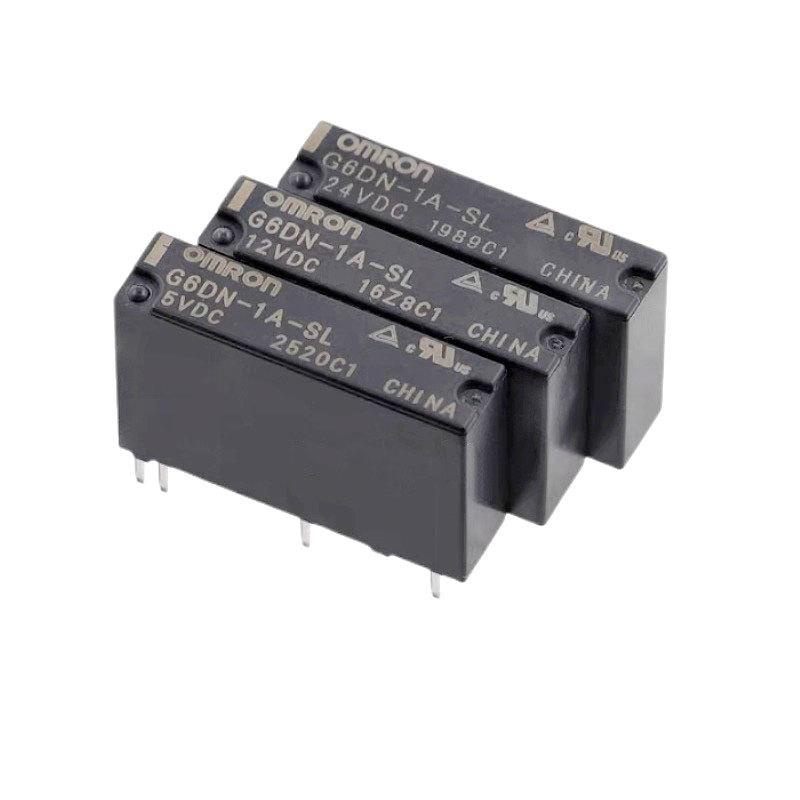

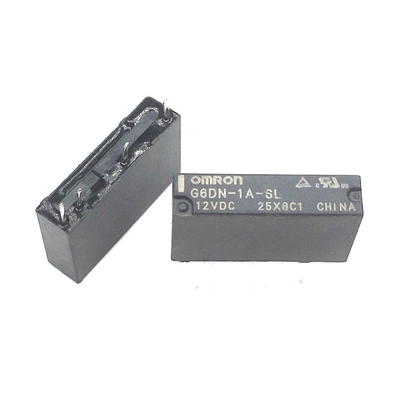

Product Images
