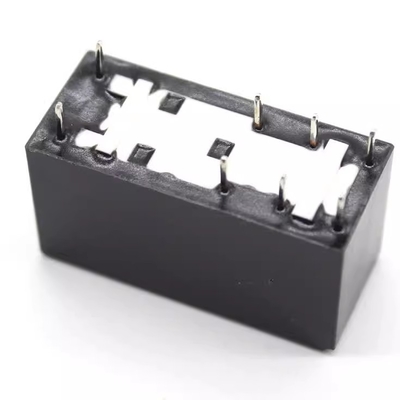

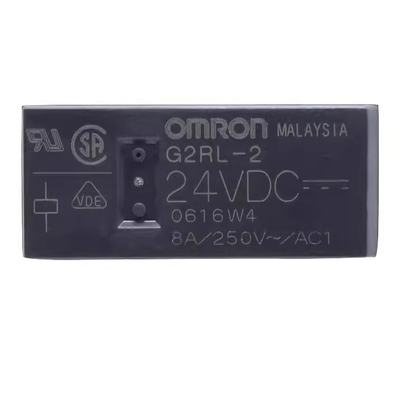

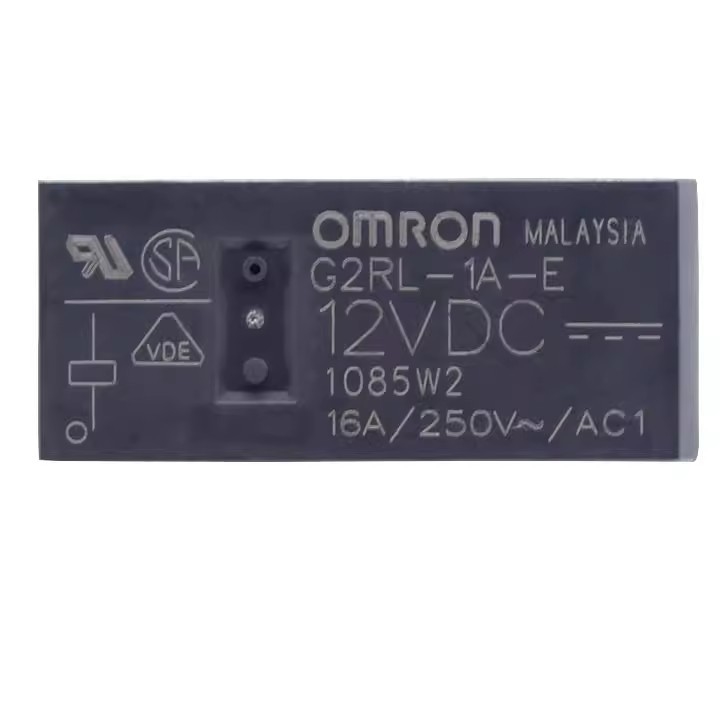

SPDT 24VDC 48VDC Solid State Relay PCB Power Relay G2RL-1-E

The approval rating values for overseas standards are different from the performance values determined individually. Confirm the values before use.

Mounting Position Compared to G2R Model: Although the G2RL model and the G2R model are both low profile relays, their characteristics such as switching capacity are different. Be sure to check operation under the actual operating conditions before use.

Cleaning: The G2RL model is flux-resistant with two sealing holes on the case. Thus, do not clean the relay by boiling or soaking in water. Consult your Omron sales representative for sealed type relay.

Using Relays in an Atmosphere Containing Corrosive Gas: Do not use relays in an atmosphere containing corrosive gas (sulfuric or organic gas). Otherwise, connection failure due to corrosion on the contact surface may lead to functional faults.

Coil Voltage Reduction (Holding Voltage) after Relay Operation: If the coil voltage is reduced to the holding voltage after relay operation, first apply the rated voltage to the coil for at least 100 ms. A voltage of at least 55% of the rated voltage is required for the coil holding voltage.

Power consumption reduction of coil with pulse width modulation (PWM): Models with PWM drive capability (-PW1) can reduce coil holding current with PWM control. This function reduces power consumption by reducing the current held by coil. Apply the rated voltage for at least 100 ms at the time of relay operation.
