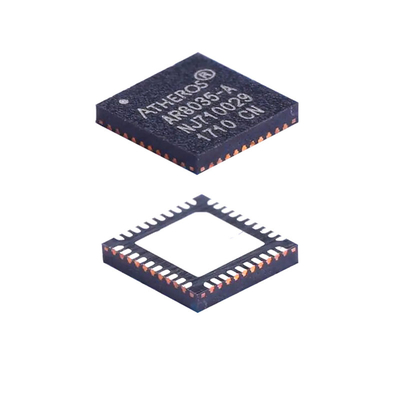

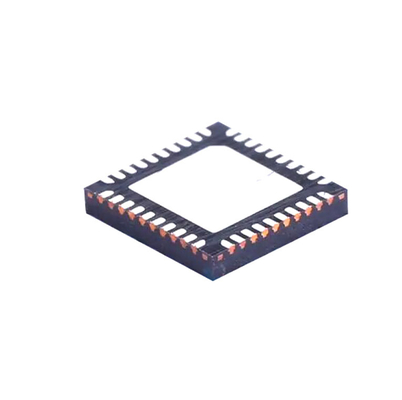

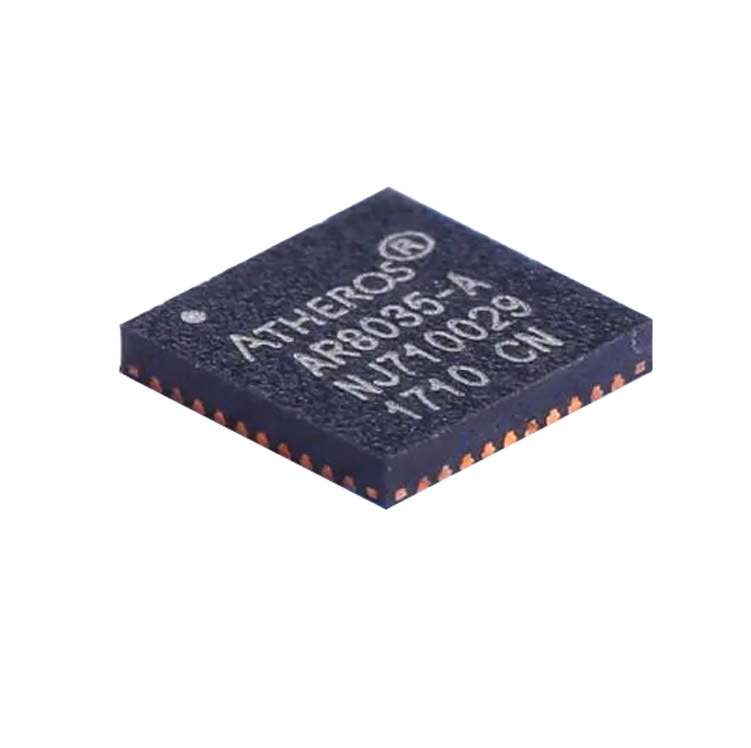

Wireless 10dBm RF Integrated Circuits Transceiver AR8035-AL1A

The AR8035 is part of the Arctic family of devices which includes the AR8031, AR8033, and the AR8035. It is Atheros' 4th generation, single port 10/100/1000 Mbps Tri-speed Ethernet PHY that supports RGMII interface to the MAC.

The AR8035 provides a low power, low BOM (Bill of Materials) cost solution for comprehensive applications including consumer, enterprise, carrier and home networks such as:

• PC, HDTV, Gaming machines, Blue-ray players
• IPTV STB, Media Players, IP Cameras
• NAS, Printers, Digital Photo Frames
• MoCA/Homeplug (Powerline)/EoC adapters
• Home Router & Gateways

• 10BASE-Te/100BASE-Tx/1000 BASE-T IEEE 802.3 compliant
• Supports 1000 BASE-T PCS and auto-negotiation with next page support
• Supports RGMII interface to MAC devices with broad I/O voltage level options
• Error-free operation up to 140 meters of CAT5 cable
• Supports Atheros Green Ethos® power saving technologies
• Supports 802.3az (Energy Efficient Ethernet)
• Fully integrated digital adaptive equalizers, echo cancellers, and crosstalk cancellers
• Supports Wake-on-LAN (WoL) feature
• Robust Cable Discharge Event (CDE) tolerance of ±6kV
• Jumbo Frame support up to 10KB (full duplex)
• All digital baseline wander correction

The AR8035 integrates Atheros latest Green Ethos® power saving technologies that significantly save power during work time and overtime. Features include:

• Ultra-low power in cable unplugged mode or port power down mode
• Automatic optimized power saving based on cable length
• Wake-on-LAN (WoL) support to manage system power requirements

The AR8035 embeds CDT (Cable Diagnostics Test) technology on-chip which allows:

• Cable length measurement
• Cable status detection
• Identification of remote and local PHY malfunctions
• Detection of bad or marginal patch cord segments or connectors

Standard export packaging available. Customers can choose from:

• Cartons
• Wooden cases
• Wooden pallets
