Wireless Cellular Radio Frequency Module 15.5x15MM RAK3172-8-SM-NI SMD

Wireless Cellular Radio Frequency Module 15.5x15MM RAK3172-8-SM-NI SMD
Wireless Cellular Radio Frequency Module 15.5x15MM RAK3172-8-SM-NI SMD Wireless Cellular Radio Frequency Module 15.5x15MM RAK3172-8-SM-NI SMD Wireless Cellular Radio Frequency Module 15.5x15MM RAK3172-8-SM-NI SMD

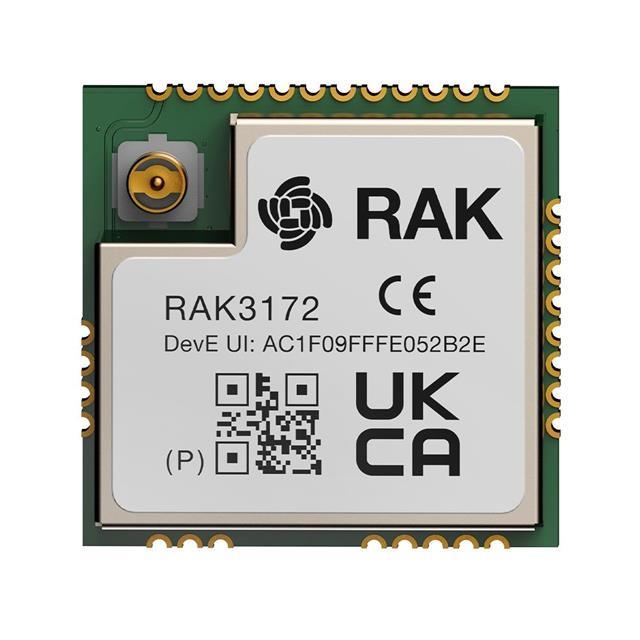

Large Image :  Wireless Cellular Radio Frequency Module 15.5x15MM RAK3172-8-SM-NI SMD

Product Details:
Place of Origin: CN
Brand Name: RAK
Certification: ROSH
Model Number: RAK3172-8-SM-NI
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: CONSULT WITH
Packaging Details: T/R
Delivery Time: 5-8DAY
Payment Terms: Western Union,T/T
Supply Ability: 10000
Contact Now Chat Now

Wireless Cellular Radio Frequency Module 15.5x15MM RAK3172-8-SM-NI SMD

Description
Highlight:

Wireless Radio Frequency Module

,

Cellular Radio Frequency Module

,

RAK3172-8-SM-NI

Wireless Cellular Development Tool LORA Module SMD 15.5x15 Mm RAK3172-8-SM-NI
The RAK3172 is a low-power, long-range transceiver module based on the STM32WLE5CC chip, offering a compact and efficient solution for wireless data applications. This module supports LoRaWAN 1.0.3 specifications (Class A, B, & C) and can connect seamlessly to various LoRaWAN server platforms including TheThingsNetwork (TTN), Chirpstack, and Actility.
Key Features
  • Based on STM32WLE5CCU6 microcontroller
  • Compliant with LoRaWAN 1.0.3 specification
  • Supports multiple frequency bands: EU433, CN470, IN865, EU868, AU915, US915, KR920, RU864, AS923-1/2/3/4
  • LoRaWAN activation via OTAA/ABP
  • LoRa Point-to-Point (P2P) communication capability
  • Custom firmware development using Arduino via RUI3 API
  • AT command interface via UART for easy configuration
  • Exceptional range - over 15 km with optimized antenna
  • ARM Cortex-M4 32-bit processor
  • 256 kB flash memory with ECC
  • 64 kB RAM
  • Ultra-low power consumption: 1.69 μA in sleep mode
Technical Specifications
Supply Voltage:
2.0 V ~ 3.6 V
Operating Temperature:
RAK3172: -20°C ~ 85°C
RAK3172-T: -40°C ~ 85°C
Dimensions:
15.5 x 15 mm (SMD)
The RAK3172 module is ideal for battery-powered IoT applications requiring long-range wireless connectivity with minimal power consumption. Its compact SMD form factor and comprehensive feature set make it suitable for industrial, agricultural, and smart city deployments.
