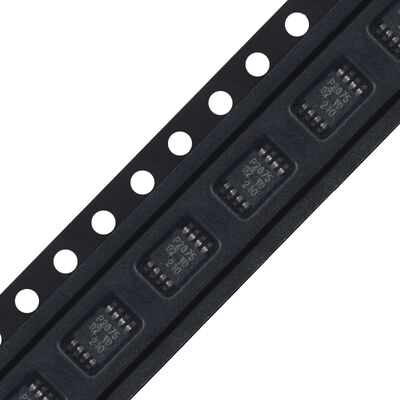

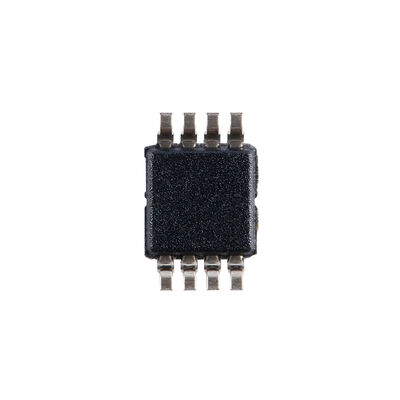

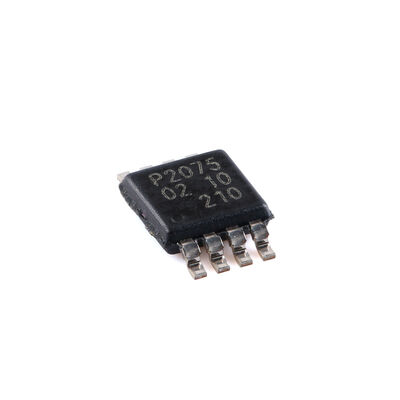

PCT2075DP,118 I2C-bus Fm+1°C Accuracy, Digital Temperature Sensor Andthermal Watchdog

PCT2075DP,118 I2C-bus Fm+1°C Accuracy  Digital Temperature Sensor Andthermal Watchdog

• Pin-for-pin replacement for LM75 series but allows up to 27 devices on the bus
• Power supply range from 2.7 V to 5.5 V
• SDA and SCL inputs are overvoltage tolerant to 5.5 V
• SDA and OS open drain outputs can be pulled up to 5.5 V regardless of supply voltage
• Temperatures range from -55 °C to +125 °C
• Frequency range 20 kHz to 1 MHz with SMBus time-out to prevent hanging up the bus
• 1 MHz Fast-mode Plus 30 mA SDA drive allows more devices on the same bus but is backward compatible to Fast-mode and Standard-mode
• 11-bit ADC that offers a temperature resolution of 0.125 °C
• Temperature accuracy of:
  • ±1 °C (max.) from -25 °C to +100 °C
  • ±2 °C (max.) from -55 °C to +125 °C
• Programmable temperature threshold and hysteresis set points during operation
• Supply current of <1.0 μA in shut-down mode for power conservation
• Stand-alone operation as thermostat at power-up
• ESD protection exceeds 2000 V HBM per JESD22-A114 and 1000 V CDM per JESD22-C101
• Latch-up testing is done to JEDEC Standard JESD78 which exceeds 100 mA
• Small 8-pin package types: SO8, TSSOP8 and 2 mm × 3 mm HWSON8
• Small 6-pin package type: TSOP6

Applications

• System thermal management
• Personal computers
• Electronics equipment
• Industrial controllers
• Cooling system: turn on when the temperature is higher (hotter) than -5 °C; turn off when the temperature is below -10 °C
