TMP236A4DCKR Low-Power High-Accuracy Analog Output Temperature Sensors

TMP236A4DCKR Low-Power High-Accuracy Analog Output Temperature Sensors
TMP236A4DCKR Low-Power High-Accuracy Analog Output Temperature Sensors TMP236A4DCKR Low-Power High-Accuracy Analog Output Temperature Sensors TMP236A4DCKR Low-Power High-Accuracy Analog Output Temperature Sensors

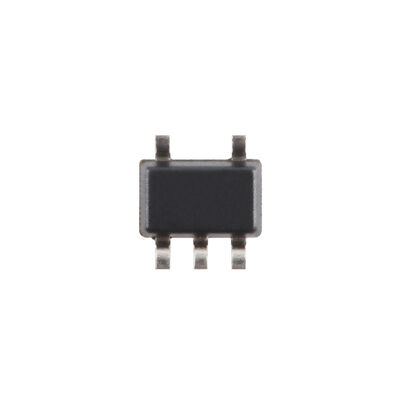

Large Image :  TMP236A4DCKR Low-Power High-Accuracy Analog Output Temperature Sensors

Product Details:
Place of Origin: CN
Brand Name: TI
Certification: ROHS
Model Number: TMP236A4DCKR
Document: tmp236.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: consult with

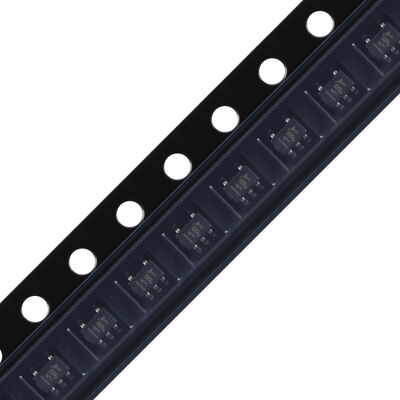

Packaging Details: T/R
Delivery Time: 5-8DAY
Payment Terms: T/T
Supply Ability: 1000
Contact Now Chat Now

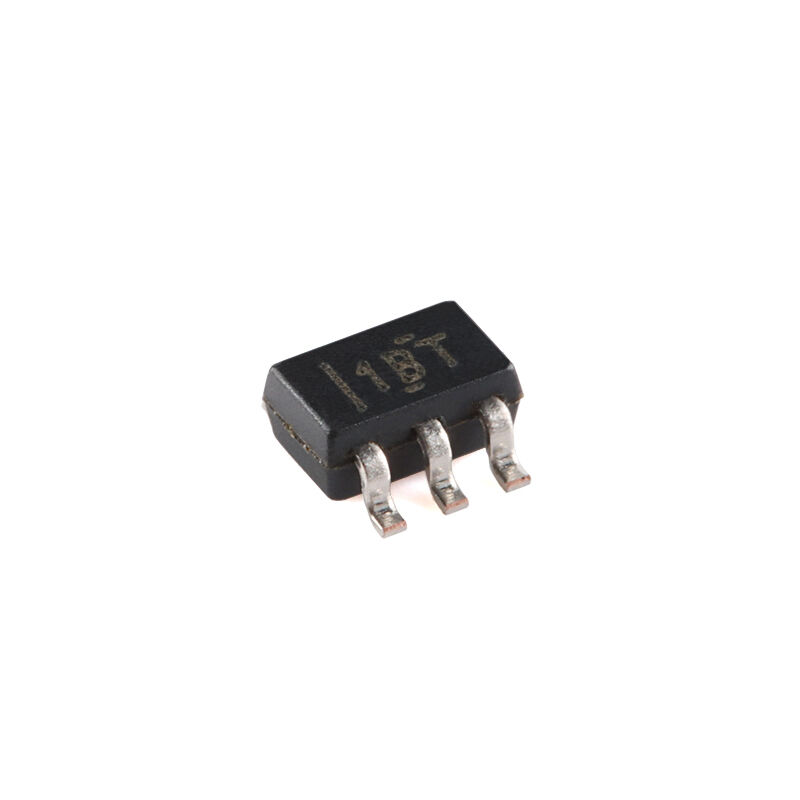

TMP236A4DCKR Low-Power High-Accuracy Analog Output Temperature Sensors

Description
Operating Temperature Range (°C): -10 To 125 Rating: Catalog
RoHS: Yes REACH: Yes
Lead Finish / Ball Material: Sn | NiPdAu | NiPdAuAg MSL Rating / Peak Reflow: Level-1-260C-UNLIM
Highlight:

High-Accuracy Analog Output Temperature Sensors

,

Low-Power Analog Output Temperature Sensors

,

TMP236A4DCKR Temperature Sensors

TMP236A4DCKR Low-Power High-Accuracy Analog Output Temperature Sensors

Features

  • Cost-effective alternative to thermistors
  • Tight accuracy across a wide temperature range:
    • ±2.5°C (maximum): –40°C to +150°C (TMP235)
    • ±2.5°C (maximum): –10°C to +125°C (TMP236)
  • Available in two accuracy level variants:
    • A2 level: ±0.5°C (typical)
    • A4 level: ±1°C (typical)
  • Positive slope sensor gain, offset (typical):
    • 10 mV/°C, 500 mV at 0°C (TMP235)
    • 19.5 mV/°C, 400 mV at 0°C (TMP236)
  • Wide operating supply voltage range:
    • 2.3 V to 5.5 V (TMP235)
    • 3.1 V to 5.5 V (TMP236)
  • Short-circuit protected output
  • Low power: 9 μA (typical)
  • Strong output for driving loads up to 1000 pF
  • Available package options:
    • 5-pin SC70 (DCK) surface mount
    • 3-pin SOT-23 (DBZ) surface mount
    • Footprint compatible with industry-standard LMT8x-Q1 and LM20 temperature sensors

Applications

  • Grid infrastructure
  • Wireless and telecom infrastructure
  • Automotive infotainment
  • Factory automation and control
  • Test and measurement

PART NUMBER PACKAGE BODY SIZE (NOM)

PART NUMBER PACKAGE BODY SIZE (NOM)
TMP235,TMP236 SC70 (5) 2.00 mm * 1.25 mm
SOT-23 (3) 2.92 mm * 1.30 mm

TMP236A4DCKR Low-Power High-Accuracy Analog Output Temperature Sensors 0TMP236A4DCKR Low-Power High-Accuracy Analog Output Temperature Sensors 1TMP236A4DCKR Low-Power High-Accuracy Analog Output Temperature Sensors 2

Packaging & Shipping

Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.

Frequently Asked Questions

How to obtain the price?

We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.

What is your delivery time?

Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.

What are your payment terms?

Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.

What are the shipping options?

Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
