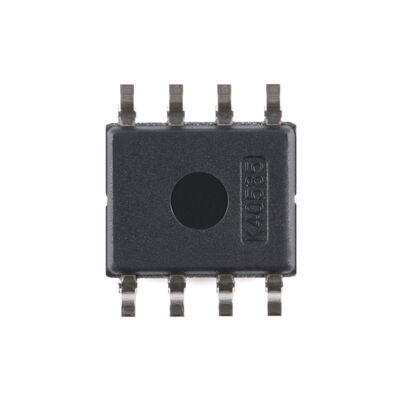

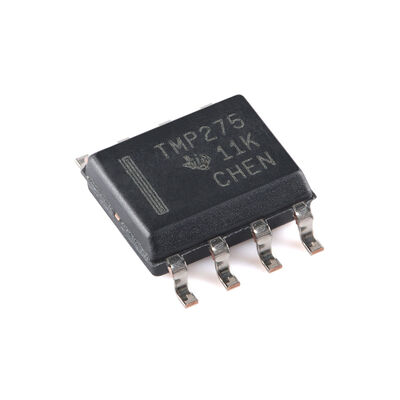

TMP275AIDR ±0.5°C Temperature Sensor With I2C And SMBus Interface In Industry StandardLM75 Form Factor And Pinout

Large Image : TMP275AIDR ±0.5°C Temperature Sensor With I2C And SMBus Interface In Industry StandardLM75 Form Factor And Pinout

Product Details:

Place of Origin:	CN
Brand Name:	TI
Certification:	ROHS
Model Number:	TMP275AIDR
Document:	tmp275.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	consult with

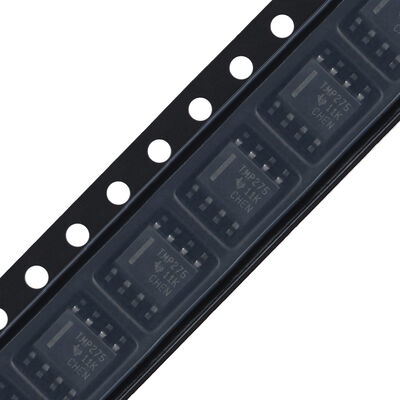

Packaging Details:	T/R
Delivery Time:	5-8DAY
Payment Terms:	T/T,Western Union
Supply Ability:	10000

Contact Now Chat Now

TMP275AIDR ±0.5°C Temperature Sensor With I2C And SMBus Interface In Industry StandardLM75 Form Factor And Pinout

Description

Local Sensor Accuracy (max):	0.5	Type:	Local
Operating Temperature Range (°C):	-40 To 125	Supply Voltage (min) (V):	2.7
Interface Type:	I2C, SMBus	Supply Voltage (max) (V):	5.5
Highlight:	High Accuracy Temperature Sensor , TMP275AIDR Temperature Sensor , TMP275AIDR

TMP275AIDR ±0.5°C Temperature Sensor With I2C And SMBus Interface In Industry StandardLM75 Form Factor And Pinout

Features

High Accuracy:
– ±0.5°C (Maximum) From −20°C to 100°C
– ±1°C (Maximum) From −40°C to 125°C
Low Quiescent Current:
– 50 μA (Typical)
– 0.1-μA Standby
Resolution: 9 to 12 Bits, User-Selectable
Digital Output: SMBus™, Two-Wire, and I2CInterface Compatibility
8 I2C/SMBus Addresses
Wide Supply Range: 2.7 V to 5.5 V
Small VSSOP-8 and SOIC-8 Packages
No Specified Power-up Sequence Required; TwoWire Bus Pullups May Be Enabled Before V+

Applications

Power-Supply Temperature Monitoring
Computer Peripheral Thermal Protection
Battery Management
Office Machines
Servers
Thermostat Controls
Environmental Monitoring and HVAC
Electromechanical Device Temperature
Data Logger

Package Details

PART NUMBER	PACKAGE	BODY SIZE (NOM)
TMP275	SOIC (8)	4.90 mm * 3.91 mm
	VSSOP (8)	3.00 mm * 3.00 mm
