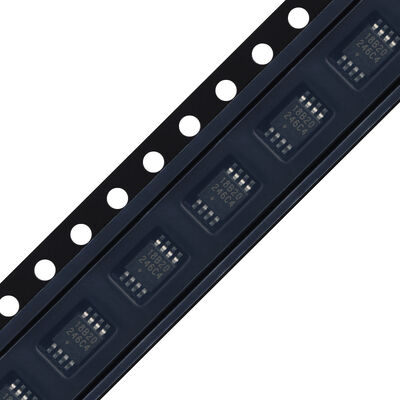

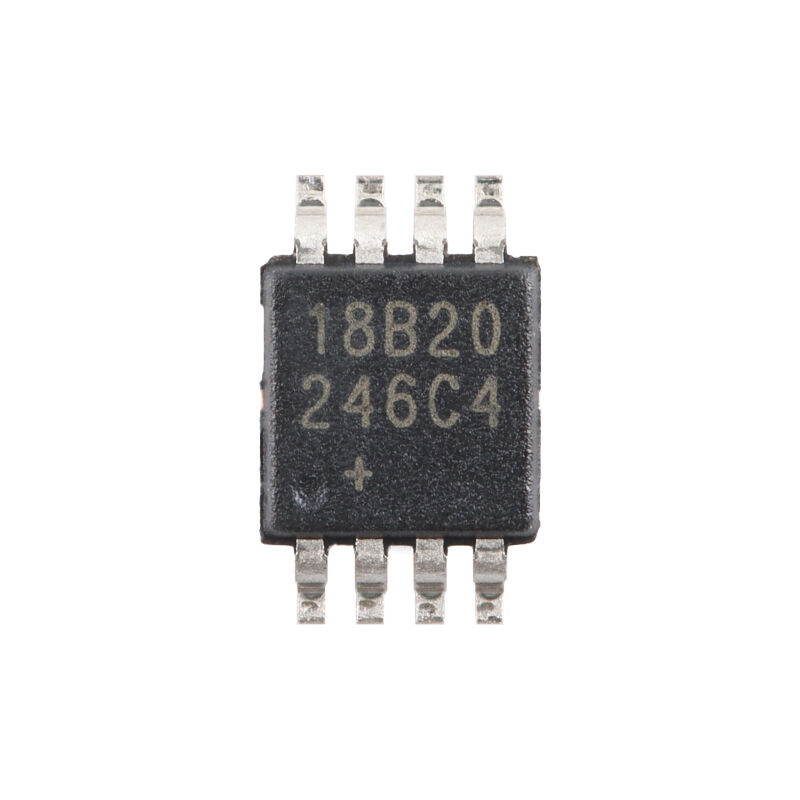

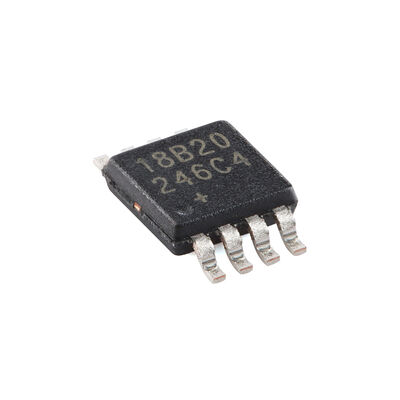

DS18B20U+T&R Programmable Resolution1-Wire Digital Thermometer

Large Image : DS18B20U+T&R Programmable Resolution1-Wire Digital Thermometer

Product Details:

Place of Origin:	CN
Brand Name:	ADI
Certification:	rohs
Model Number:	DS18B20U+T&R
Document:	C118507_1499918901893816791...91.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	consult with
Packaging Details:	T/R
Delivery Time:	5-8day
Payment Terms:	T/T,Western Union
Supply Ability:	10000

Contact Now Chat Now

DS18B20U+T&R Programmable Resolution1-Wire Digital Thermometer

Description

Operating Temperature Range (°C):	-55℃~+125℃	Interface Type:	-
Operating Voltage:	3V~5.5V	Standby Current:	1uA
Temperature Conversion Time:	750ms	Temperature Resolution:	12bit
Highlight:	DS18B20U digital thermometer programmable resolution , 1-Wire digital thermometer with warranty , Lithium Ion Battery temperature sensor

DS18B20U+T&R Programmable Resolution 1-Wire Digital Thermometer

Product Overview

The DS18B20U+T&R is a programmable resolution 1-Wire digital thermometer offering high accuracy and flexible integration for various temperature sensing applications.

Benefits and Features

Unique 1-Wire® Interface requires only one port pin for communication
Reduced component count with integrated temperature sensor and EEPROM
Wide temperature measurement range: -55°C to +125°C (-67°F to +257°F)
High accuracy: ±0.5°C from -10°C to +85°C
Programmable resolution from 9 bits to 12 bits
No external components required
Parasitic power mode requires only 2 pins for operation (DQ and GND)
Multidrop capability simplifies distributed temperature-sensing applications
Each device has unique 64-bit serial code stored in on-board ROM
Flexible user-definable nonvolatile (NV) alarm settings with alarm search command
Available in 8-Pin SO (150 mils), 8-Pin µSOP, and 3-Pin TO-92 packages

Applications

Thermostatic Controls
Industrial Systems
Consumer Products
Thermometers
Thermally Sensitive Systems

Technical Parameters

PARAMETER	SYMBOL	CONDITIONS	MIN	TYP	UNITS
NV Write Cycle Time	tWR		2	10	ms
EEPROM Writes	NEEWR	-55°C to +55°C	50k		writes
EEPROM Data Retention	tEEDR	-55°C to +55°C	10		years

Packaging & Shipping

Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.

Frequently Asked Questions

How to obtain the price?

We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.

What is your delivery time?

Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.

What are your payment terms?

Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.

What are the shipping options?

Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
