16Bit DSP IC Chip Microcontrollers High Speed DsPIC33EP512MU810-I/PF

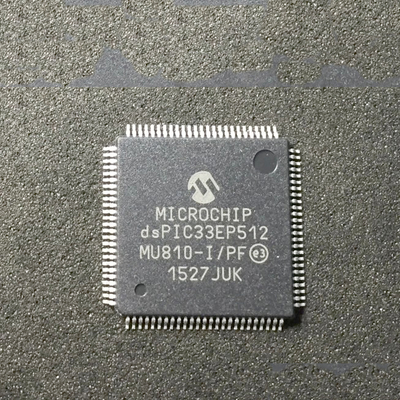

Large Image : 16Bit DSP IC Chip Microcontrollers High Speed DsPIC33EP512MU810-I/PF

Product Details:

Place of Origin:	CN
Brand Name:	Microchip
Certification:	ROHS
Model Number:	dsPIC33EP512MU810-I/PF

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	consult with
Packaging Details:	T/R
Delivery Time:	5-8day
Payment Terms:	Western Union,T/T
Supply Ability:	10000

Contact Now Chat Now

16Bit DSP IC Chip Microcontrollers High Speed DsPIC33EP512MU810-I/PF

Description

Product Category::	Digital Signal Processors & Controllers - DSP, DSC	Core::	DsPIC33EP
Number Of Cores::	1 Core	Package / Case::	TQFP-100
Program Memory Size::	512 KB	Series::	DsPIC33EP512MU810
Data Bus Width::	16 Bit	Moisture Sensitive::	Yes
Highlight:	16Bit DSP IC Chip , Microcontrollers DSP IC Chip , DsPIC33EP512MU810-I/PF

DSP DSC 16Bit Microcontrollers And Digital Signal Controllers With High-Speed PWM USB And Advanced Analog DsPIC33EP512MU810-I/PF

Product Specifications

Attribute	Value
Product Category	Digital Signal Processors & Controllers - DSP, DSC
Core	dsPIC33EP
Number of Cores	1 Core
Package / Case	TQFP-100
Program Memory Size	512 kB
Series	dsPIC33EP512MU810
Data Bus Width	16 bit
Moisture Sensitive	Yes

Product Features

Operating Conditions: 3.0V to 3.6V, -40ºC to +125ºC, DC to 60 MIPS / 3.0V to 3.6V, -40ºC to +85ºC, DC to 70 MIPS
Core: 16-Bit dsPIC33E/PIC24E CPU with Code-Efficient architecture
Clock Management: 2% Internal Oscillator, Programmable PLLs, Fail-Safe Clock Monitor
Power Management: Low-Power modes, 1.0 mA/MHz Dynamic Current
High-Speed PWM: Up to Seven PWM Pairs with 8.32 ns Resolution
Advanced Analog Features: Two Independent ADC modules with multiple configurations
Communication Interfaces: USB 2.0 OTG, UART, SPI, ECAN™, I2C
Debugger Development Support: In-Circuit Programming, JTAG Boundary Scan

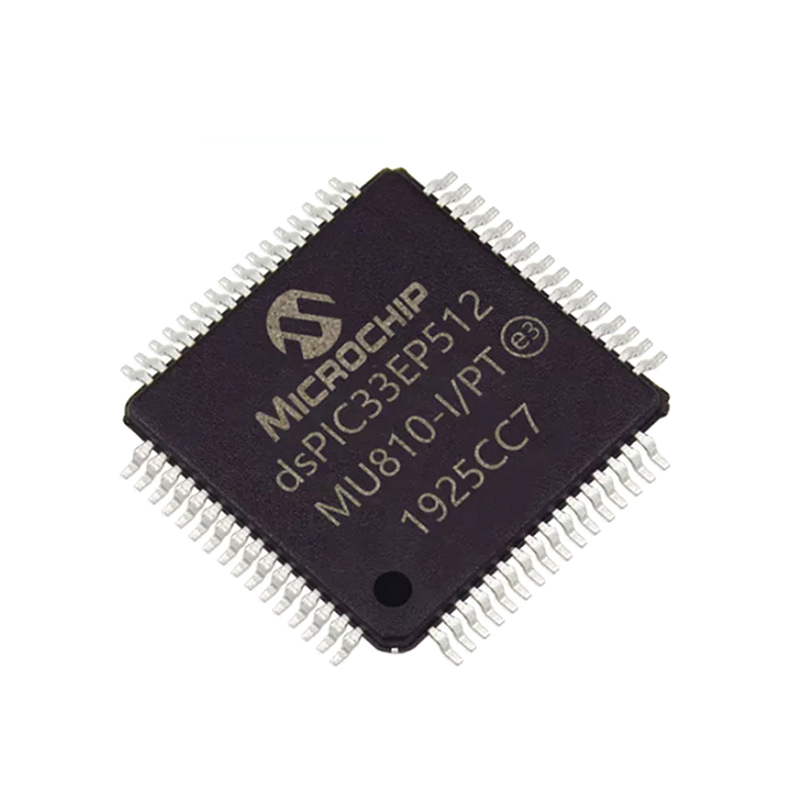

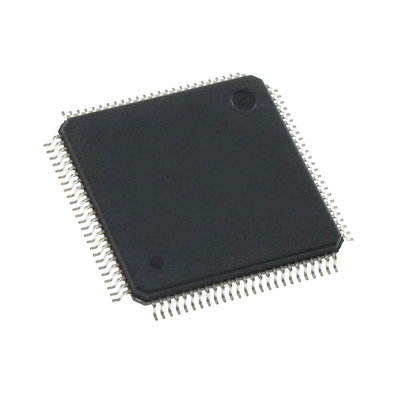

Product Images

Packaging & Shipping

Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to requirements.

Frequently Asked Questions

1. How to obtain the price?

We usually quote within 24 hours after receiving your inquiry (except weekends and holidays). For urgent requests, please contact us directly.

2. What is your delivery time?

Small batches typically ship within 7-15 days, while large batches may take about 30 days depending on order quantity and season.

3. What are your payment terms?

Factory price, 30% deposit, 70% T/T payment before shipment.

4. What is the mode of transportation?

Available by sea, air, or express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm before ordering.

We maintain good quality and competitive prices to ensure customer benefits. We value long-term relationships and treat every customer with sincerity.
