32Bit DSCs DSP IC Chip TMS320F2812PGFA Digital Signal Processors

Large Image : 32Bit DSCs DSP IC Chip TMS320F2812PGFA Digital Signal Processors

Product Details:

Place of Origin:	CN
Brand Name:	Texas Instruments
Certification:	ROHS
Model Number:	TMS320F2812PGFA
Document:	tms320f2812.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	CONSULT WITH
Packaging Details:	T/R
Delivery Time:	5-8DAY
Payment Terms:	Western Union,T/T
Supply Ability:	10000

Contact Now Chat Now

32Bit DSCs DSP IC Chip TMS320F2812PGFA Digital Signal Processors

Description

Manufacturer::	Texas Instruments	Product Category::	Digital Signal Processors & Controllers - DSP, DSC
Product::	DSCs	Core::	C28x
Package / Case::	LQFP-176	Series::	TMS320F2812
Tradename::	C2000	Moisture Sensitive::	Yes
Highlight:	32Bit DSP IC Chip , DSCs DSP IC Chip , TMS320F2812PGFA

Digital Signal Processors & Controllers DSP DSC 32Bit Digital Sig Controller W Flash TMS320F2812PGFA

Product Specifications

Attribute	Value
Manufacturer	Texas Instruments
Product Category	Digital Signal Processors & Controllers - DSP, DSC
Product	DSCs
Core	C28x
Package / Case	LQFP-176
Series	TMS320F2812
Tradename	C2000
Moisture Sensitive	Yes
Maximum Clock Frequency	150 MHz
Program Memory Size	256 kB
Data RAM Size	36 kB
Operating Supply Voltage	1.9 V
Mounting Style	SMD/SMT
Operating Temperature Range	-40°C to +125°C
ADC Resolution	12 bit
Data Bus Width	32 bit
I/O Voltage	3.3 V
Factory Pack Quantity	40

Key Features

High-performance static CMOS technology (150 MHz, 6.67ns cycle time)
Low power consumption (1.8V core voltage at 135 MHz and 1.9V core voltage at 150 MHz)
Supports JTAG boundary scan (IEEE Standard 1149.1-1990)
High-performance 32-bit CPU (TMS320C28x) with 16×16 and 32×32 MAC operation
On-chip memory including up to 128K×16 flash memory and various RAM blocks
Motor Control Peripherals with two event managers (EVA, EVB)
Serial Port Peripherals including SPI, SCI, eCAN, and McBSP
12-bit ADC with 16 channels and fast conversion rate (80ns/12.5MSPS)
Up to 56 general-purpose I/O (GPIO) pins
Advanced simulation features for analysis and real-time debugging
Low power modes including idle, standby, and shutdown

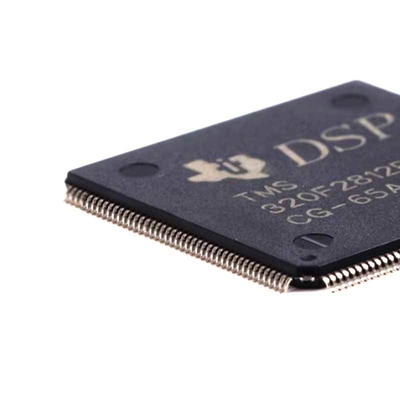

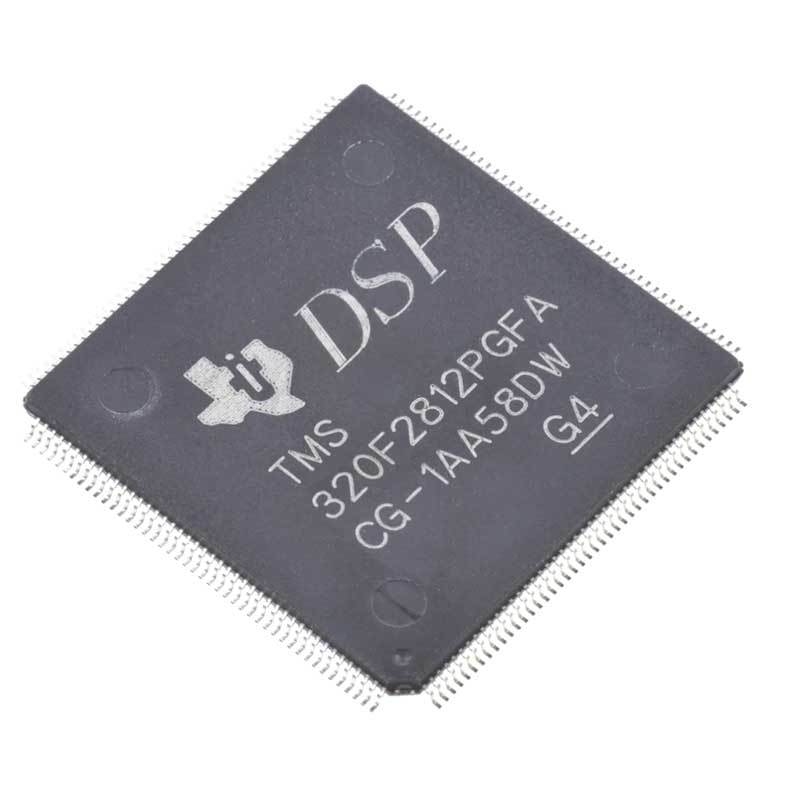

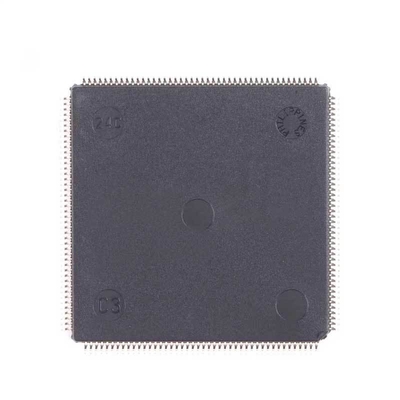

Product Images

Packaging & Shipping

Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.

Frequently Asked Questions

How to obtain the price?

We usually quote within 24 hours after receiving your inquiry (except weekends and holidays). For urgent pricing, please contact us directly.

What is your delivery time?

Typically 7-15 days for small batches, about 30 days for large batches, depending on order quantity and season.

What are your payment terms?

Factory price, 30% deposit, 70% T/T payment before shipment.

What is the mode of transportation?

Available by sea, air, or express (EMS, UPS, DHL, TNT, FEDEX). Please confirm before ordering.

How do you help establish long-term relationships?

We maintain good quality and competitive prices to ensure customer benefits. We respect every customer and value sincere business relationships.
