32mbit Serial Nor Spi Flash Memory With Dual Quad W25Q32JVSSIQ

32mbit Serial Nor Spi Flash Memory With Dual Quad W25Q32JVSSIQ
32mbit Serial Nor Spi Flash Memory With Dual Quad W25Q32JVSSIQ 32mbit Serial Nor Spi Flash Memory With Dual Quad W25Q32JVSSIQ 32mbit Serial Nor Spi Flash Memory With Dual Quad W25Q32JVSSIQ 32mbit Serial Nor Spi Flash Memory With Dual Quad W25Q32JVSSIQ

Large Image :  32mbit Serial Nor Spi Flash Memory With Dual Quad W25Q32JVSSIQ

Product Details:
Place of Origin: CN
Brand Name: Winbond
Certification: ROHS
Model Number: W25Q32JVSSIQ
Document: C179173_NOR+FLASH_W25Q32JVS...42.PDF
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: consult with
Packaging Details: T/R
Delivery Time: 5-8day
Payment Terms: Western Union,T/T
Supply Ability: 10000
Contact Now Chat Now

32mbit Serial Nor Spi Flash Memory With Dual Quad W25Q32JVSSIQ

Description
Category: Memory Mfr: Winbond Electronics
Series: SpiFlash® Memory Type: Non-Volatile
Memory Format: FLASH Memory Size: 32Mbit
Memory Organization: 4M X 8 Package / Case: 8-SOIC (0.209", 5.30mm Width)
Highlight:

32mbit nor spi

,

4M x 8 nor spi

,

W25Q32JVSSIQ

32MBIT SERIAL FLASH MEMORY WITH DUAL QUAD SPI NOR FLASH W25Q32JVSSIQ
Product Specifications
Attribute Value
Category Memory
Manufacturer Winbond Electronics
Series SpiFlash®
Memory Type Non-Volatile
Memory Format FLASH
Memory Size 32Mbit
Memory Organization 4M x 8
Package / Case 8-SOIC (0.209", 5.30mm Width)
Key Features
  • New Family of SpiFlash Memories
    W25Q32JV: 32M-bit / 4M-byte - Standard SPI: CLK, /CS, DI, DO - Dual SPI: CLK, /CS, IO0, IO1 - Quad SPI: CLK, /CS, IO0, IO1, IO2, IO3 - Software & Hardware Reset
  • Highest Performance Serial Flash
    133MHz Single, Dual/Quad SPI clocks - 266/532MHz equivalent Dual/Quad SPI - 66MB/S continuous data transfer rate - Min. 100K Program-Erase cycles per sector - More than 20-year data retention
  • Efficient "Continuous Read"
    Continuous Read with 8/16/32/64-Byte Wrap - As few as 8 clocks to address memory - Allows true XIP (execute in place) operation - Outperforms X16 Parallel Flash
  • Low Power, Wide Temperature Range
    Single 2.7V to 3.6V supply - <1µA Power-down (typ.) - -40°C to +85°C operating range - -40°C to +105°C operating range
  • Advanced Security Features
    Software and Hardware Write-Protect - Special OTP protection - Top/Bottom, Complement array protection - Individual Block/Sector array protection - 64-Bit Unique ID for each device

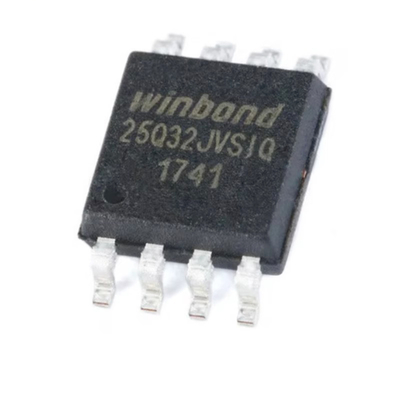

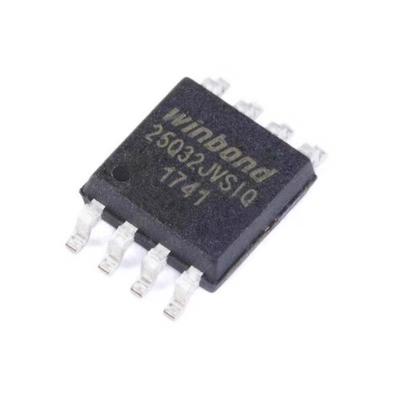

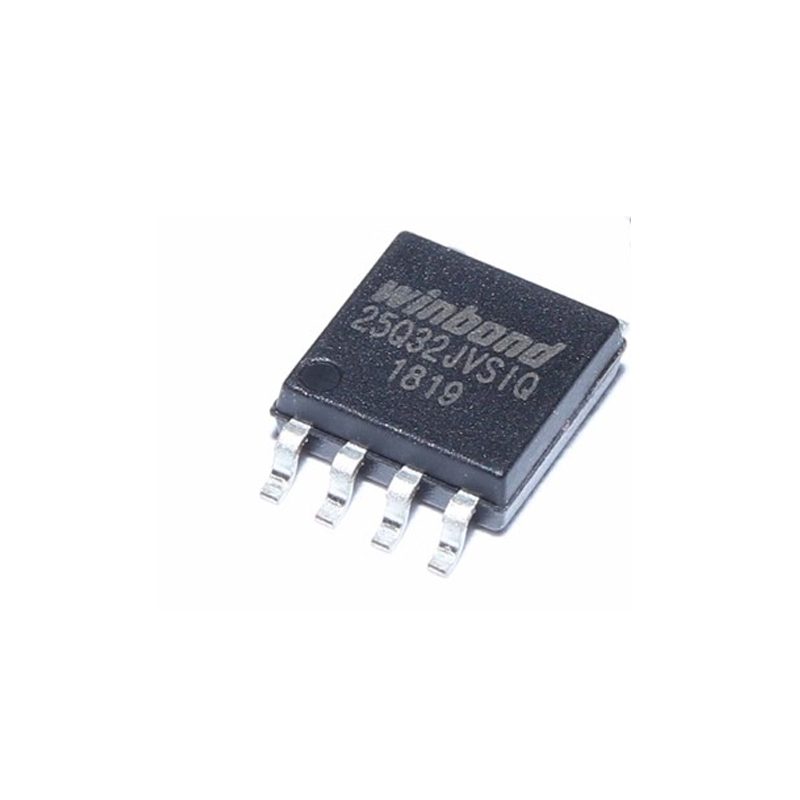

Product Images
32mbit Serial Nor Spi Flash Memory With Dual Quad W25Q32JVSSIQ 0 32mbit Serial Nor Spi Flash Memory With Dual Quad W25Q32JVSSIQ 1 32mbit Serial Nor Spi Flash Memory With Dual Quad W25Q32JVSSIQ 2 32mbit Serial Nor Spi Flash Memory With Dual Quad W25Q32JVSSIQ 3
Packaging & Shipping
Standard export packaging available. Customers can choose from cartons, wooden cases and wooden pallets according to their requirements.
Frequently Asked Questions
How to obtain the price?
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time?
Delivery time depends on order quantity and season. Small batches typically ship within 7-15 days, while large batches may require approximately 30 days.
What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options?
Available shipping methods include sea, air, or express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
