3A DIN Rail Power Supplies 100 - 240VAC S8VK-G Switching Power Supply

3A DIN Rail Power Supplies 100 - 240VAC S8VK-G Switching Power Supply
3A DIN Rail Power Supplies 100 - 240VAC S8VK-G Switching Power Supply 3A DIN Rail Power Supplies 100 - 240VAC S8VK-G Switching Power Supply 3A DIN Rail Power Supplies 100 - 240VAC S8VK-G Switching Power Supply 3A DIN Rail Power Supplies 100 - 240VAC S8VK-G Switching Power Supply 3A DIN Rail Power Supplies 100 - 240VAC S8VK-G Switching Power Supply 3A DIN Rail Power Supplies 100 - 240VAC S8VK-G Switching Power Supply

Large Image :  3A DIN Rail Power Supplies 100 - 240VAC S8VK-G Switching Power Supply

Product Details:
Place of Origin: CN
Brand Name: Omron
Certification: ROHS
Model Number: S8VK-G
Document: 46e86fe7e587fc4fe6c1e010ee6...1a.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: CONSULT WITH
Packaging Details: T/R
Delivery Time: 5-8DAY
Payment Terms: T/T,Western Union
Supply Ability: 1000
Contact Now Chat Now

3A DIN Rail Power Supplies 100 - 240VAC S8VK-G Switching Power Supply

Description
S8VK-G015: 5/12/24/48V S8VK-G240: 5/12/24/48V
S8VK-G120: 5/12/24/48V S8VK-G030: 5/12/24/48V
S8VK-G480: 5/12/24/48V S8VK-G060: 5/12/24/48V
Highlight:

3A DIN Rail Power Supplies

,

100VAC DIN Rail Power Supplies

,

240VAC Switching Power Supply

PLC Controller DIN Rail Power Supplies 3A 100-240VAC S8VK-G Series
PLC Controller DIN Rail Power Supplies 3A 100-240VAC S8VK-G Series Switching Power Supply S8VK-G01505 S8VK-G48024 S8VK-G24048 S8VK-G12024 S8VK-G03012 S8VK-G06024
Product Overview

The S8VK-G Series switching power supplies offer reliable performance for industrial applications with models including S8VK-G01505, S8VK-G48024, S8VK-G24048, S8VK-G12024, S8VK-G03012, and S8VK-G06024.

Key Features
  • Universal input for worldwide applications: 100 to 240 VAC (85 to 264 VAC)
  • DC input available: 90 to 350 VDC
  • Wide operation temperature range: -40 to 70 °C
  • Power Boost function at 120%
  • Compact DIN rail mounting design
  • Three-year warranty
  • Meets multiple safety standards including UL508, EN60950-1, and more
Voltage Options
Model Available Voltages
S8VK-G015 5/12/24/48V
S8VK-G240 5/12/24/48V
S8VK-G120 5/12/24/48V
S8VK-G030 5/12/24/48V
S8VK-G480 5/12/24/48V
S8VK-G060 5/12/24/48V
Technical Specifications
Manufacturer
Omron
Product Category
DIN Rail Power Supplies
Product Type
Switching Supplies
Input Type
1-Phase / Single Phase
Output Power
15 W~480W
Input Voltage
100 VAC to 240 VAC
Output Voltage
5 ~48VDC
Output Current
3 A
Mounting Style
DIN Rail Mount
Dimensions
90 × 22.5 × 90 mm (3.543 × 0.886 × 3.543 in)
Weight
10.24 oz

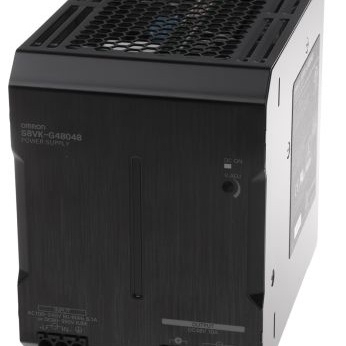

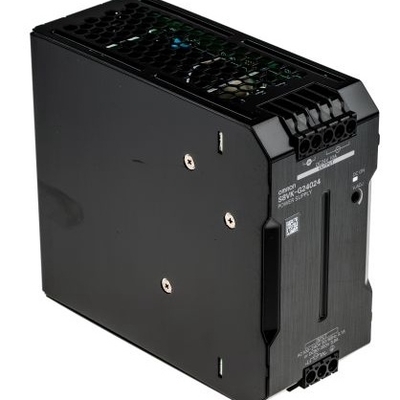

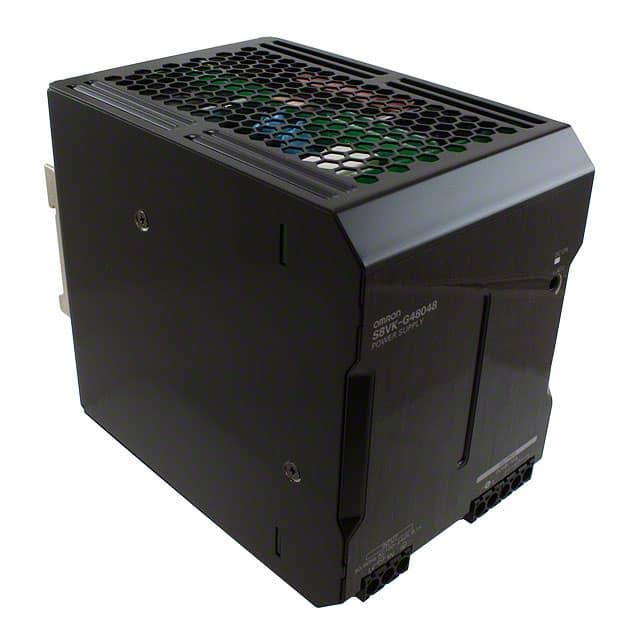

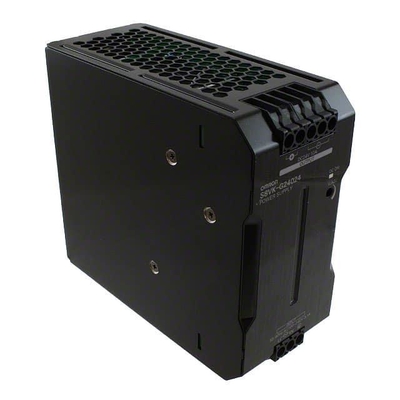

Product Images
3A DIN Rail Power Supplies 100 - 240VAC S8VK-G Switching Power Supply 0 3A DIN Rail Power Supplies 100 - 240VAC S8VK-G Switching Power Supply 1 3A DIN Rail Power Supplies 100 - 240VAC S8VK-G Switching Power Supply 2 3A DIN Rail Power Supplies 100 - 240VAC S8VK-G Switching Power Supply 3 3A DIN Rail Power Supplies 100 - 240VAC S8VK-G Switching Power Supply 4 3A DIN Rail Power Supplies 100 - 240VAC S8VK-G Switching Power Supply 5
Packaging & Shipping

Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.

Frequently Asked Questions
How to obtain the price?

We usually quote within 24 hours after receiving your inquiry (except weekends and holidays). For urgent pricing requests, please contact us directly.

What is your delivery time?

Small batches typically ship within 7-15 days, while large batches may require about 30 days depending on order quantity and season.

What are your payment terms?

Factory price with 30% deposit and 70% T/T payment before shipment.

What are the shipping options?

Available by sea, air, or express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm with us before ordering.
