512K 28PDIP EPROM IC AT27C512R-70PU One Time Programmable ROM

512K 28PDIP EPROM IC AT27C512R-70PU One Time Programmable ROM
512K 28PDIP EPROM IC AT27C512R-70PU One Time Programmable ROM 512K 28PDIP EPROM IC AT27C512R-70PU One Time Programmable ROM

Large Image :  512K 28PDIP EPROM IC AT27C512R-70PU One Time Programmable ROM

Product Details:
Place of Origin: CN
Brand Name: Microchip
Certification: ROHS
Model Number: AT27C512R-70PU
Document: C220830_10309DA0F10B8BED176...09.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: CONSULT WITH
Packaging Details: T/R
Delivery Time: 5-8DAY
Payment Terms: T/T,Western Union
Supply Ability: 10000
Contact Now Chat Now

512K 28PDIP EPROM IC AT27C512R-70PU One Time Programmable ROM

Description
Category: Memory Mfr: Microchip Technology
Memory Format: EPROM Memory Size: 512Kbit
Mounting Type: Through Hole Operating Temperature: -40°C ~ 85°C (TC)
Supplier Device Package: 28-PDIP Base Product Number: AT27C512
Highlight:

512K EPROM IC

,

28PDIP EPROM IC

,

AT27C512R-70PU

EPROM 512K One-time Programmable Read-only Memory AT27C512R-70PU
Product Attributes
Attribute Value
Category Memory
Manufacturer Microchip Technology
Memory Format EPROM
Memory Size 512Kbit
Mounting Type Through Hole
Operating Temperature -40°C ~ 85°C (TC)
Supplier Device Package 28-PDIP
Base Product Number AT27C512
Product Description
The AT27C512R is a low-power, high-performance 524,288-bit one-time programmable read-only memory (OTP EPROM) organized as 64K by 8 bits. It requires only one 5V power supply in normal read mode operation.
Key Features
  • Fast read access time - 45ns
  • Low-power CMOS operation (100µA max standby, 20mA max active at 5MHz)
  • JEDEC standard packages (28-lead PDIP, 32-lead PLCC)
  • 5V ± 10% supply voltage
  • High-reliability CMOS technology with 2,000V ESD protection
  • Rapid programming algorithm (100µs/byte typical)
  • CMOS- and TTL-compatible inputs and outputs
  • Industrial and automotive temperature ranges
  • Green (Pb/halide-free) packaging option
With 64K byte storage capability, the AT27C512R allows firmware to be stored reliably and accessed by the system without the delays of mass storage media. The integrated product identification code electronically identifies the device and manufacturer.
Technical Specifications
Specification Value
Memory Type Non-Volatile
Technology EPROM - OTP
Memory Organization 64K x 8
Memory Interface Parallel
Access Time 70 ns
Voltage Supply 4.5V ~ 5.5V
Package/Case 28-DIP (0.600", 15.24mm)
Product Images

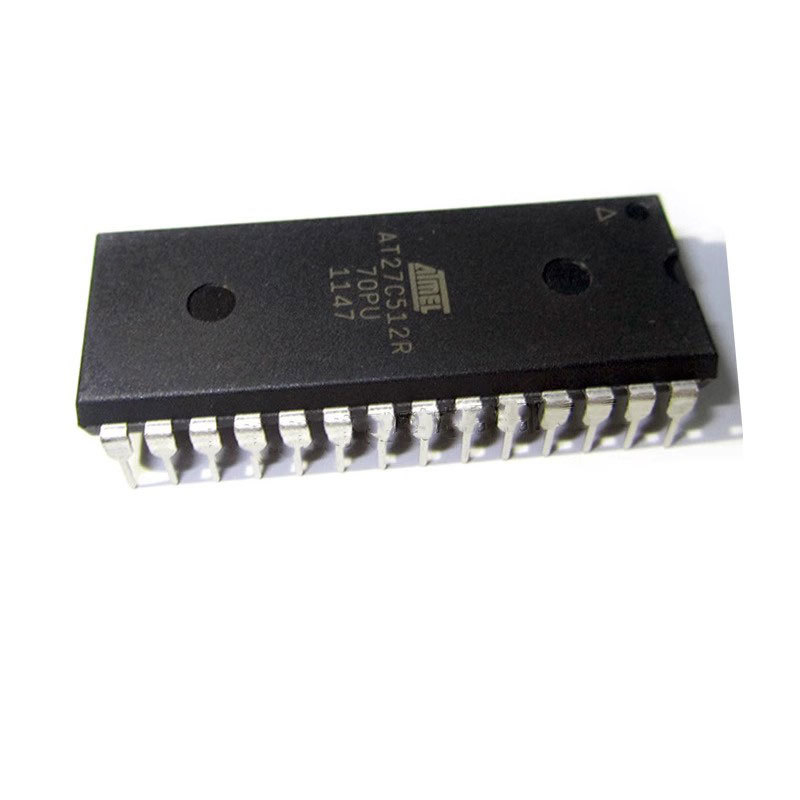

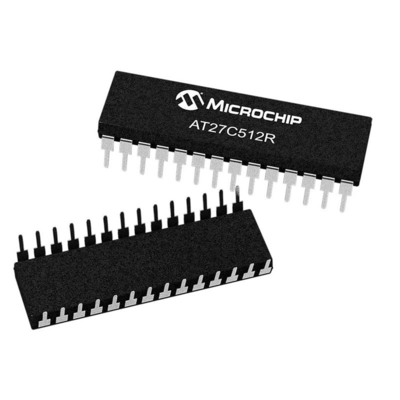

512K 28PDIP EPROM IC AT27C512R-70PU One Time Programmable ROM 0 512K 28PDIP EPROM IC AT27C512R-70PU One Time Programmable ROM 1
Packaging and Transportation
Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.
Frequently Asked Questions
How to obtain the price?
We typically provide quotes within 24 hours of receiving inquiries (excluding weekends and holidays). For urgent requests, please contact us directly.
What is your delivery time?
Delivery times vary by order quantity and season. Small batches typically ship within 7-15 days, while large orders may require approximately 30 days.
What are your payment terms?
Standard terms: 30% deposit, with 70% balance paid via T/T before shipment.
What transportation methods are available?
We offer sea, air, or express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
