512K Low Power Ic Eprom One Time Programmable Read Only Memory AT27LV512A-90JU

I'm Online Chat Now

512K Low Power Ic Eprom One Time Programmable Read Only Memory AT27LV512A-90JU

512K Low Power Ic Eprom One Time Programmable Read Only Memory AT27LV512A-90JU
512K Low Power Ic Eprom One Time Programmable Read Only Memory AT27LV512A-90JU 512K Low Power Ic Eprom One Time Programmable Read Only Memory AT27LV512A-90JU 512K Low Power Ic Eprom One Time Programmable Read Only Memory AT27LV512A-90JU

Large Image :  512K Low Power Ic Eprom One Time Programmable Read Only Memory AT27LV512A-90JU

Product Details:
Place of Origin: CN
Brand Name: Microchip
Certification: ROHS
Model Number: AT27LV512A-90JU
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: CONSULT WITH
Packaging Details: T/R
Delivery Time: 5-8DAY
Payment Terms: T/T,Western Union
Supply Ability: 10000
Contact Now Chat Now

512K Low Power Ic Eprom One Time Programmable Read Only Memory AT27LV512A-90JU

Description
Category: Memory Mfr: Microchip
Memory Format: EPROM Memory Size: 512Kbit
Operating Temperature: -40°C ~ 85°C (TC) Supplier Device Package: 32-PLCC (13.97x11.43)
Base Product Number: AT27LV512 Mounting Type: Surface Mount
Highlight:

512K ic eprom

,

ic eprom SMT

,

AT27LV512A-90JU

EPROM 512K Low-power CMOS Technology One-time Programmable Read-only Memory AT27LV512A-90JU
Product Specifications
Category Memory
Manufacturer Microchip
Memory Format EPROM
Memory Size 512Kbit
Operating Temperature -40°C ~ 85°C (TC)
Supplier Device Package 32-PLCC (13.97x11.43)
Base Product Number AT27LV512
Mounting Type Surface Mount
Key Features
  • Fast read access time - 90ns
  • Dual voltage range operation (3.0V to 3.6V or 5V ± 10%)
  • Compatible with JEDEC standard Atmel® AT27C512R
  • Low-power CMOS operation (20µA max standby)
  • 32-lead PLCC JEDEC standard package
  • High-reliability with 2,000V ESD protection
  • Rapid programming algorithm (100µs/byte typical)
  • CMOS- and TTL-compatible inputs/outputs
  • Industrial temperature range
  • Green (Pb/halide-free) packaging option
Product Description

The Atmel AT27LV512A is a high-performance, low-power, low-voltage, 524,288-bit, one-time programmable read-only memory (OTP EPROM) organized as 64K by 8 bits. It requires only one supply in the range of 3.0 to 3.6V in normal read mode operation, making it ideal for fast, portable systems using battery power.

The innovative design techniques provide fast speeds that rival 5V parts while maintaining low power consumption. At VCC = 3.0V, any byte can be accessed in less than 90ns. With typical power dissipation of only 18mW at 5MHz and VCC = 3.3V, the AT27LV512A consumes less than one-fifth the power of a standard 5V EPROM.

Product Images

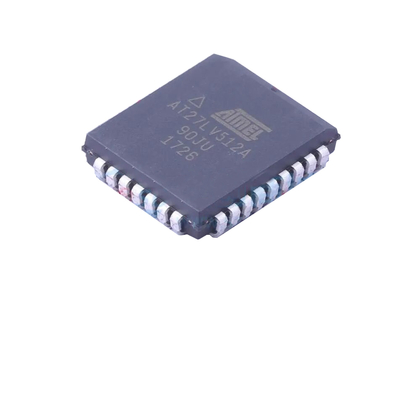

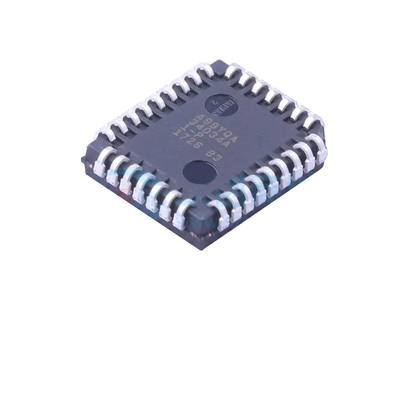

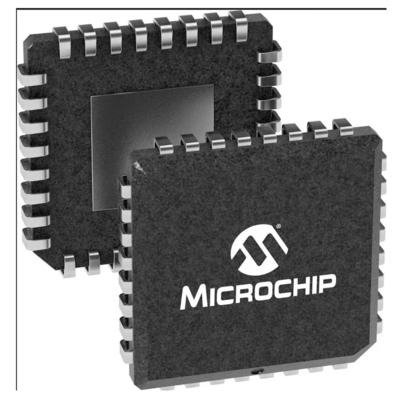

512K Low Power Ic Eprom One Time Programmable Read Only Memory AT27LV512A-90JU 0 512K Low Power Ic Eprom One Time Programmable Read Only Memory AT27LV512A-90JU 1 512K Low Power Ic Eprom One Time Programmable Read Only Memory AT27LV512A-90JU 2
Packaging Information

Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.
