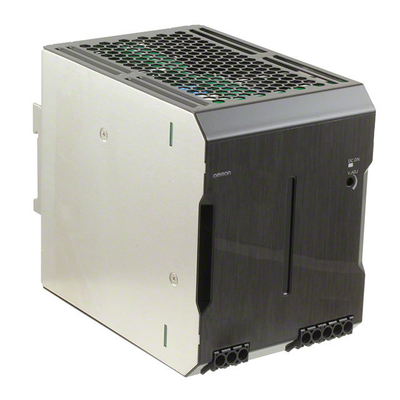

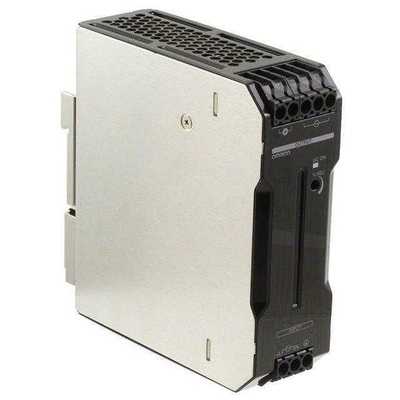

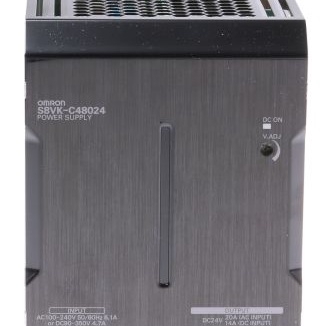

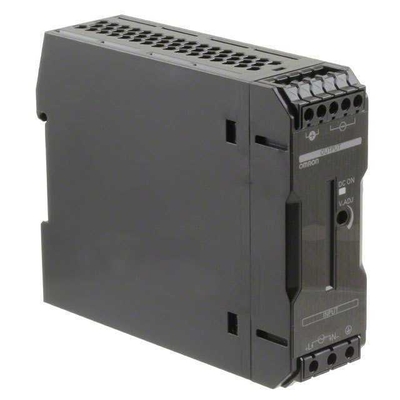

60W - 120W PLC Programming 24VDC 5A DIN Rail 480W Switching Power Supply

60W - 120W PLC Programming 24VDC 5A DIN Rail 480W Switching Power Supply
60W - 120W PLC Programming 24VDC 5A DIN Rail 480W Switching Power Supply 60W - 120W PLC Programming 24VDC 5A DIN Rail 480W Switching Power Supply 60W - 120W PLC Programming 24VDC 5A DIN Rail 480W Switching Power Supply 60W - 120W PLC Programming 24VDC 5A DIN Rail 480W Switching Power Supply 60W - 120W PLC Programming 24VDC 5A DIN Rail 480W Switching Power Supply

Large Image :  60W - 120W PLC Programming 24VDC 5A DIN Rail 480W Switching Power Supply

Product Details:
Place of Origin: CN
Brand Name: Omron
Certification: ROHS
Model Number: S8VKC
Document: bb32a1a993fbca36a1df624e10c...73.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: CONSULT WITH
Packaging Details: T/R
Delivery Time: 5-8DAY
Payment Terms: T/T,Western Union
Supply Ability: 100
Contact Now Chat Now

60W - 120W PLC Programming 24VDC 5A DIN Rail 480W Switching Power Supply

Description
Manufacturer:: Omron Product Category:: DIN Rail Power Supplies
RoHS:: Details Output Power:: 60~480W
Output Voltage-Channel 1:: 24 VDC Output Current-Channel 1:: 5 A
Series:: S8VKC
Highlight:

60W PLC Programming 24VDC

,

120W PLC Programming 5A

,

480W switching power supply

PLC Controller DIN Rail Power Supplies 60W - 120W 24VDC 5A 100-240VAC S8VK-C 60/120/240/480W Switching Power Supply
Product Specifications
Manufacturer: Omron
Product Category: DIN Rail Power Supplies
RoHS: Details
Output Power: 60~480W
Output Voltage-Channel 1: 24 VDC
Output Current-Channel 1: 5 A
Series: S8VKC
Product Description
S8VK-C (60/120/240/480-W Models)

PLC controller DIN Rail Power Supplies 60W - 120W 24VDC 5A 100-240VAC S8VK-C 60/120/240/480W Switching power supply

Cost-effective Single Phase Power Supply with universal input and safety standards for worldwide applications featuring space-saving compact design.

  • Universal input for worldwide applications: 100 to 240 VAC (85 to 264 VAC)
  • DC input available: 90 to 350 VDC
  • Operation temperature range: -25 to 60 °C
  • Compact dimension for small spaces
  • Flexible installation with special mounting brackets
  • Safety standards: UL508/60950-1, CSA C22.2 No.107.1/60950-1, EN50178, EN60950-1
  • EMS: Conform to EN61204-3 EMI: EN55011 Class A
  • Three years warranty
Note: Three years warranty conditions: Rated input voltage, 80% load, Ambient operating temperature: 40 °C, Standard mounting

Derating Curve: 60, 120, 240, 480 W

Overvoltage Protection

Consider the possibility of an overvoltage and design the system so that the load will not be subjected to an excessive voltage even if the feedback circuit in the Power Supply fails. If an excessive voltage that is approximately 130% of the rated voltage or more is output, the output voltage is shut OFF. Reset the input power by turning it OFF for at least three minutes and then turning it back ON again.

Two Phases Application for Single Phase Models

For All Single phase Models, S8VK-C:

OMRON single phase power supply can be used on two phases of a 3-phase-system when some conditions are satisfied:

  1. The supplying voltage is below the maximum rated input. OMRON Power supply allows the input voltage equivalent or less than 240 VAC+10%. Please confirm the input voltage between two lines if the input voltage satisfies this condition before connecting.
  2. The external protector is needed on N input line to secure safety. N line has no protection of a fuse internally. An appropriate fuse or circuit breaker should be connected on N input line.
Additional Specifications
Manufacturer: Omron
Product Category: DIN Rail Power Supplies
RoHS: Details
REACH - SVHC: Details
Product: Switching Supplies
Input Type: 1-Phase / Single Phase
Output Power: 60~480W
Input Voltage: 85 VAC to 264 VAC
Number of Outputs: 1 Output
Output Voltage-Channel 1: 24 VDC
Output Current-Channel 1: 5 A
Industry: Industrial
Dimensions (L x W x H): 122.2 mm × 40 mm × 125 mm (4.811 in × 1.575 in × 4.921 in)
Series: S8VKC
Brand: Omron Automation and Safety
Product Type: DIN Rail Power Supplies
Factory Pack Quantity: 1
Subcategory: AC-DC Power Supply
Unit Weight: 1.279 lbs
Product Images
Packaging and Transportation

According to the standard export packaging. Customers can choose from cartons, wooden cases and wooden pallets according to their own requirements.
