64M Bits PSRAM Chip Pseudo SRAM LY68L6400SLIT With SPI And QPI

64M Bits PSRAM Chip Pseudo SRAM LY68L6400SLIT With SPI And QPI
64M Bits PSRAM Chip Pseudo SRAM LY68L6400SLIT With SPI And QPI 64M Bits PSRAM Chip Pseudo SRAM LY68L6400SLIT With SPI And QPI 64M Bits PSRAM Chip Pseudo SRAM LY68L6400SLIT With SPI And QPI

Large Image :  64M Bits PSRAM Chip Pseudo SRAM LY68L6400SLIT With SPI And QPI

Product Details:
Place of Origin: TAIWAN
Brand Name: LYONTEK
Certification: ROHS
Model Number: LY68L6400SLIT
Document: C261881_PSRAMLY68L6400SLIT_...36.PDF
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: CONSULT WITH
Packaging Details: T/R
Delivery Time: 5-8DAY
Payment Terms: Western Union,T/T
Supply Ability: 10000
Contact Now Chat Now

64M Bits PSRAM Chip Pseudo SRAM LY68L6400SLIT With SPI And QPI

Description
Package Type: 8-pin (150mil) SOP Maximum Clock Rate(MHz): 133
Temperature Range(℃: -40℃~85℃ Packing Type: Tube
Lyontek Item No: LY68L6400SLIT Organization:: 64Mb, 8M X 8bits
Single Supply Voltage:: 2.7 To 3.6V
Highlight:

64M Bits PSRAM Chip

,

Pseudo PSRAM Chip

,

LY68L6400SLIT

PSRAM 64M Bits Serial Pseudo-SRAM With SPI And QPI LY68L6400SLIT
Product Specifications
Attribute Value
Package Type 8-pin (150mil) SOP
Maximum Clock Rate 133 MHz
Temperature Range -40℃~85℃
Packing Type Tube
Lyontek Item No LY68L6400SLIT
Organization 64Mb, 8M x 8bits
Single Supply Voltage 2.7 to 3.6V
Product Features
  • 50Ω Output Drive Strength LVCMOS
  • Linear Burst (continuous) or 32 byte wrapped burst via toggle command
  • Linear Burst is supported up to 84MHz and can cross page boundary as long as tCEM is met
  • Software reset
  • Green package available
  • Package: 8-pin 150mil SOP or 8-pin 2mm x 3mm DFN
Technical Specifications
  • Single Supply Voltage: VCC=2.7 to 3.6V
  • Interface: SPI/QPI with SDR mode
  • Performance: Clock rate up to 133MHz (non-page boundary crossing) or 84MHz (page boundary crossing)
  • Organization: 64Mb, 8M x 8bits
  • Addressable bit range: A[22:0]
  • Page size: 1024 bytes
  • Refresh: Self-managed
  • Operating temperature range: -40°C to +85°C
  • Maximum Standby Current: 200µA @ 85°C
Product Images

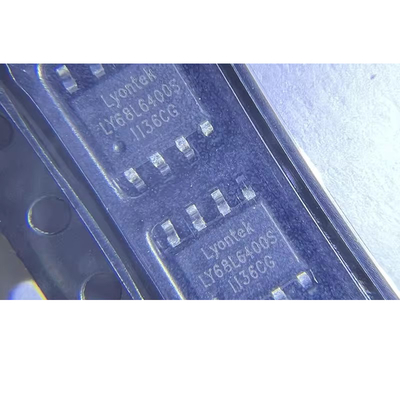

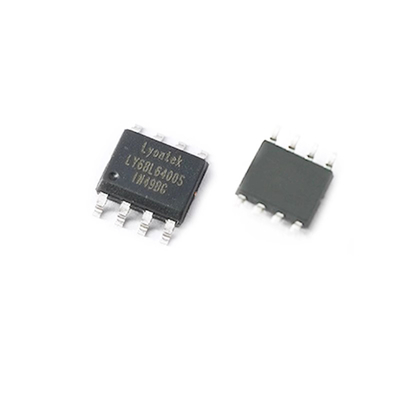

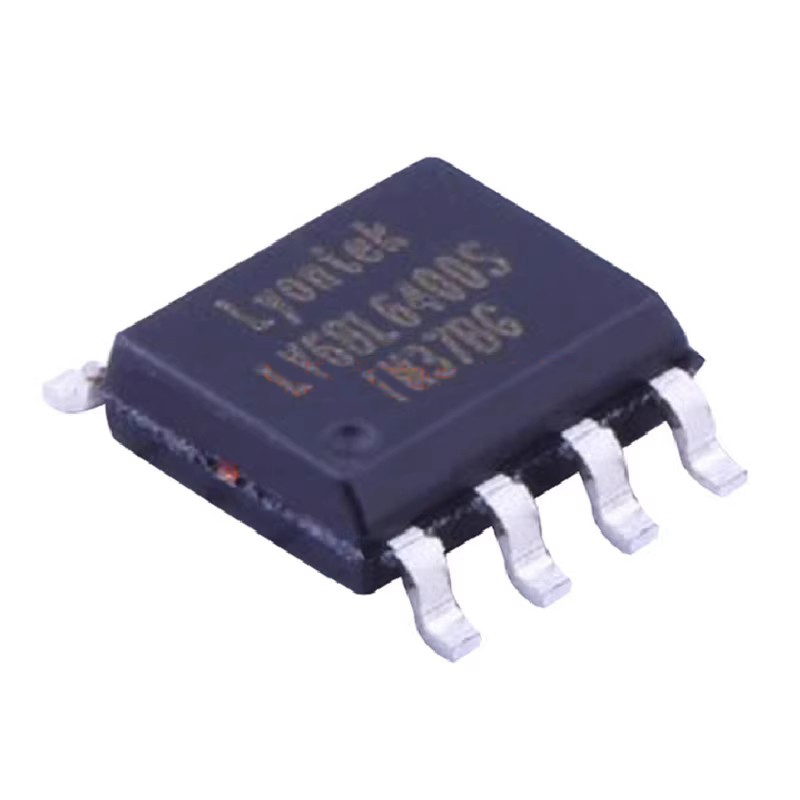

64M Bits PSRAM Chip Pseudo SRAM LY68L6400SLIT With SPI And QPI 0 64M Bits PSRAM Chip Pseudo SRAM LY68L6400SLIT With SPI And QPI 1 64M Bits PSRAM Chip Pseudo SRAM LY68L6400SLIT With SPI And QPI 2
