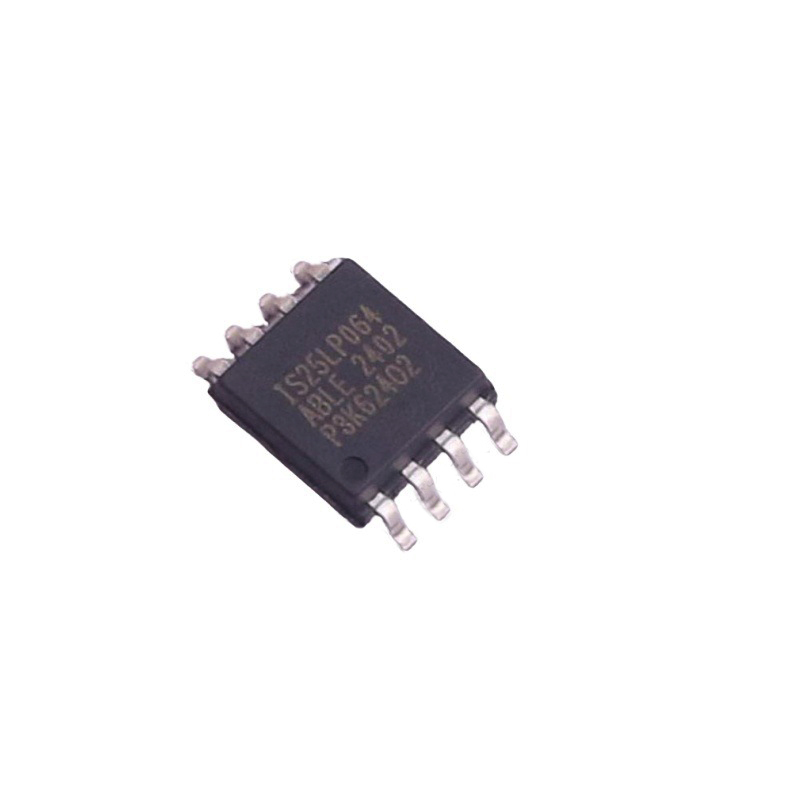

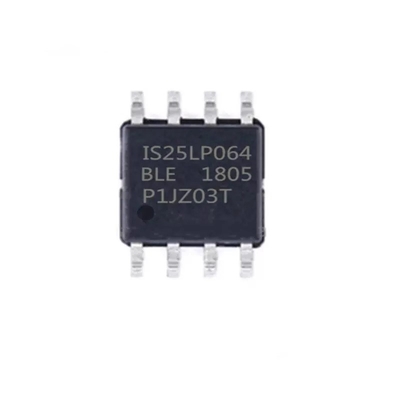

64Mb 3V Serial NOR FLASH Memory 133MHz IS25LP064A-JBLE-TR

64Mb 3V SERIAL FLASH MEMORY WITH 133MHZ I/O SPI QUAD DTR INTERFACE NOR FLASH IS25LP064A-JBLE-TR

• Industry Standard Serial Interface - IS25LP064A: 64Mbit/8Mbyte - 256 bytes per Programmable Page
• Supports standard SPI, Fast, Dual, Dual I/O, Quad, Quad I/O, SPI DTR, Dual I/O DTR, Quad I/O DTR, and QPI
• Supports Double Transfer Rate (DTR)
• Supports Serial Flash Discoverable Parameters (SFDP)
• High Performance Serial Flash (SPI) - 133Mhz Fast Read at Vcc=2.7V to 3.6V
• 104Mhz Fast Read at Vcc=2.3V to 3.6V
• 532MHz equivalent at QPI operation
• 50MHz Normal Read
• DTR (Dual Transfer Rate) up to 66MHz
• Selectable dummy cycles
• Configurable drive strength
• Supports SPI Modes 0 and 3
• More than 100,000 erase/program cycles
• More than 20-year data retention
• Flexible & Efficient Memory Architecture
• Chip Erase with Uniform Sector/Block Erase (4/32/64 Kbyte)
• Program 1 to 256 bytes per page
• Program/Erase Suspend & Resume
• Efficient Read and Program modes
• Low Instruction Overhead Operations
• Continuous Read 8/16/32/64-Byte burst Wrap
• Selectable burst length
• QPI for reduced instruction overhead
• Low Power with Wide Temp. Ranges
• Single 2.3V to 3.6V Voltage Supply
• 5 mA Active Read Current (typ.)
• 10 µA Standby Current (typ.)
• 5 µA Deep Power Down (typ.)
• Temp Grades: Extended: -40°C to +105°C, Auto Grade (A3): -40°C to +125°C
• Advanced Security Protection
• Software and Hardware Write Protection
• Power Supply lock protect
• 4x256-Byte dedicated security area with OTP user-lockable bits
• 128 bit Unique ID for each device (Call Factory)
• Industry Standard Pin-out & Packages

According to the standard export packaging. Customers can choose from cartons, wooden cases and wooden pallets according to their own requirements.
